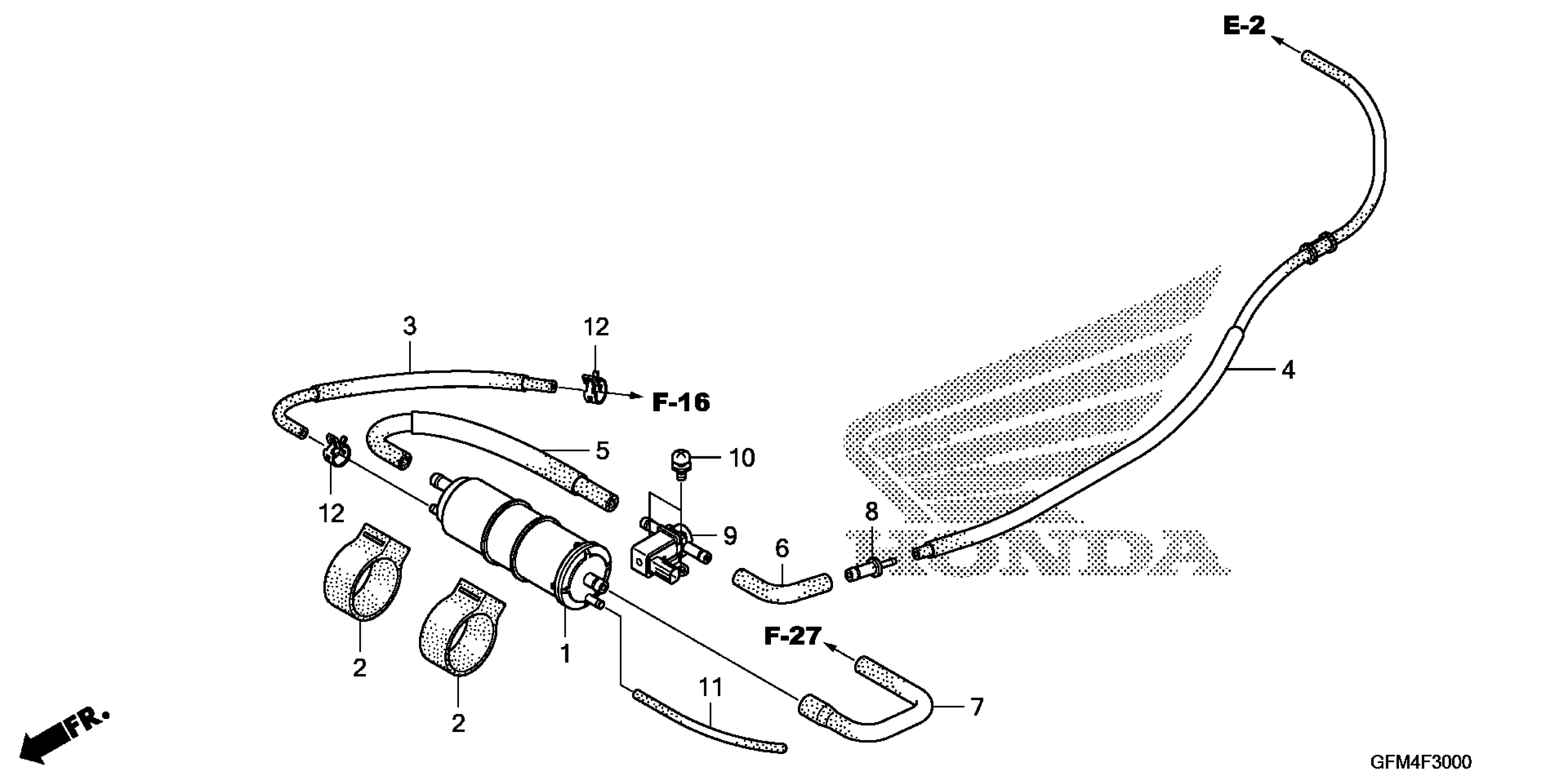

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 EVAP CANISTER Diagram

CANISTER This part replaces 17310-GFM-K01.

17310-GFM-K02

$69.74

RUBBER, CANISTER MOUNT

17311-GFM-K00

$8.90

TUBE, CHARGE

17411-GFM-A00

$6.50

TUBE C, PURGE

17412-GFM-K00

$10.53

TUBE A, PURGE

17414-GFM-K00

$7.82

TUBE B, PURGE

17415-GFM-K00

$2.43

TUBE, AIR

17416-GFM-K00

$3.81

JOINT, TUBE

19126-KM1-010

$3.50

VALVE, PURGE CONTROL SOLENOID

36162-MCT-681

$117.75

SCREW-WASHER (5X10)

93891-05010-08

$1.13

BULK HOSE, FUEL (3.5X3000) (3.5X130)

95001-35003-60M

$23.63

CLAMP, TUBE (D7.3)

95002-40730-08

$2.34
