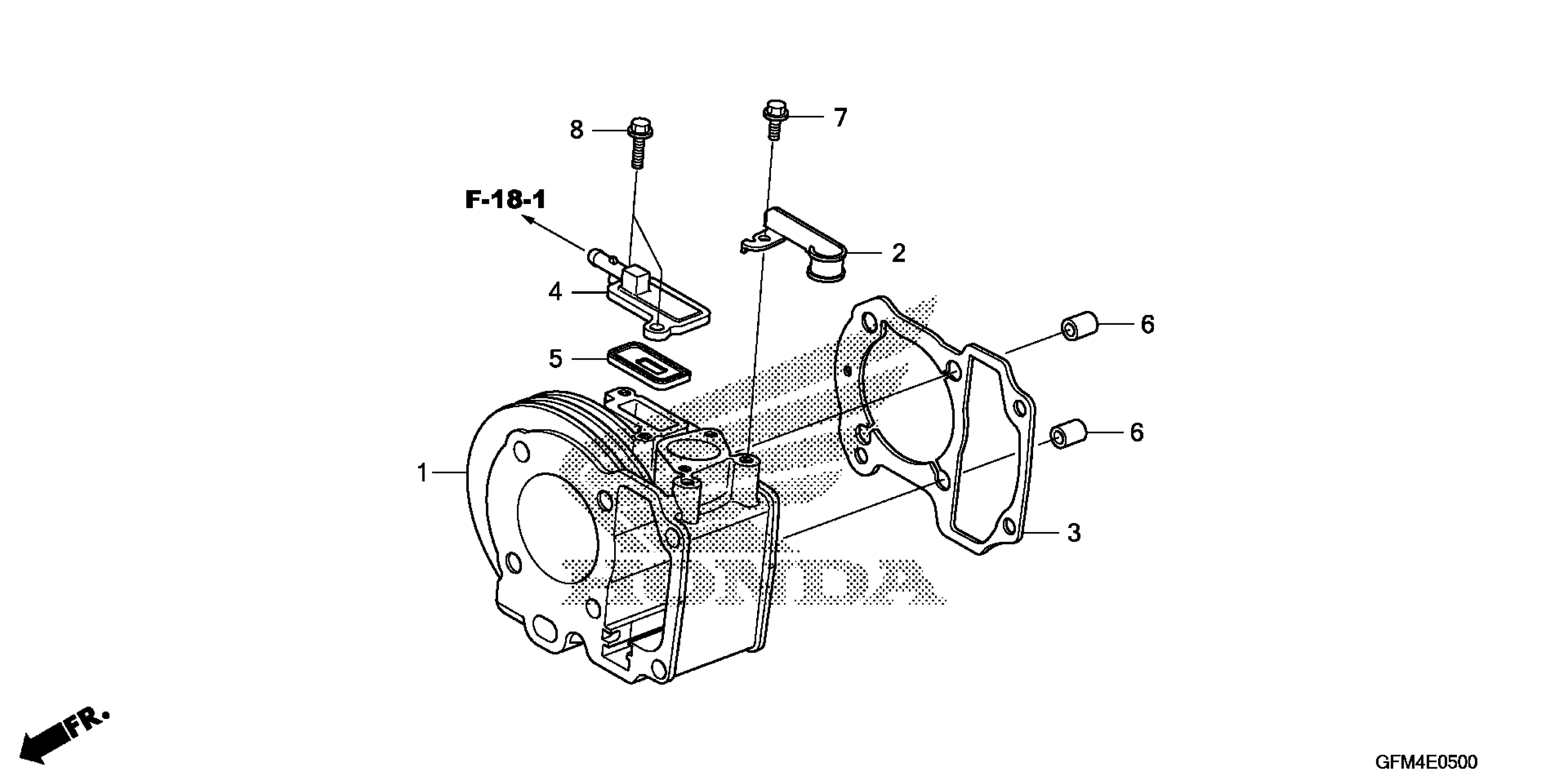

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 CYLINDER Diagram

CYLINDER

12100-GFM-900

$198.72

CLAMP, THROTTLE CABLE

12161-GFM-970

$4.06

GASKET, CYLINDER This part replaces 12191-GFM-890.

12191-GFM-901

$5.74

GASKET, CYLINDER

12191-GFM-901

$5.74

COVER, REED VALVE

12331-GFM-900

$20.51

VALVE, REED

18601-GFM-890

$17.45

PIN, DOWEL (8X14)

90701-GF6-000

$3.89

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
