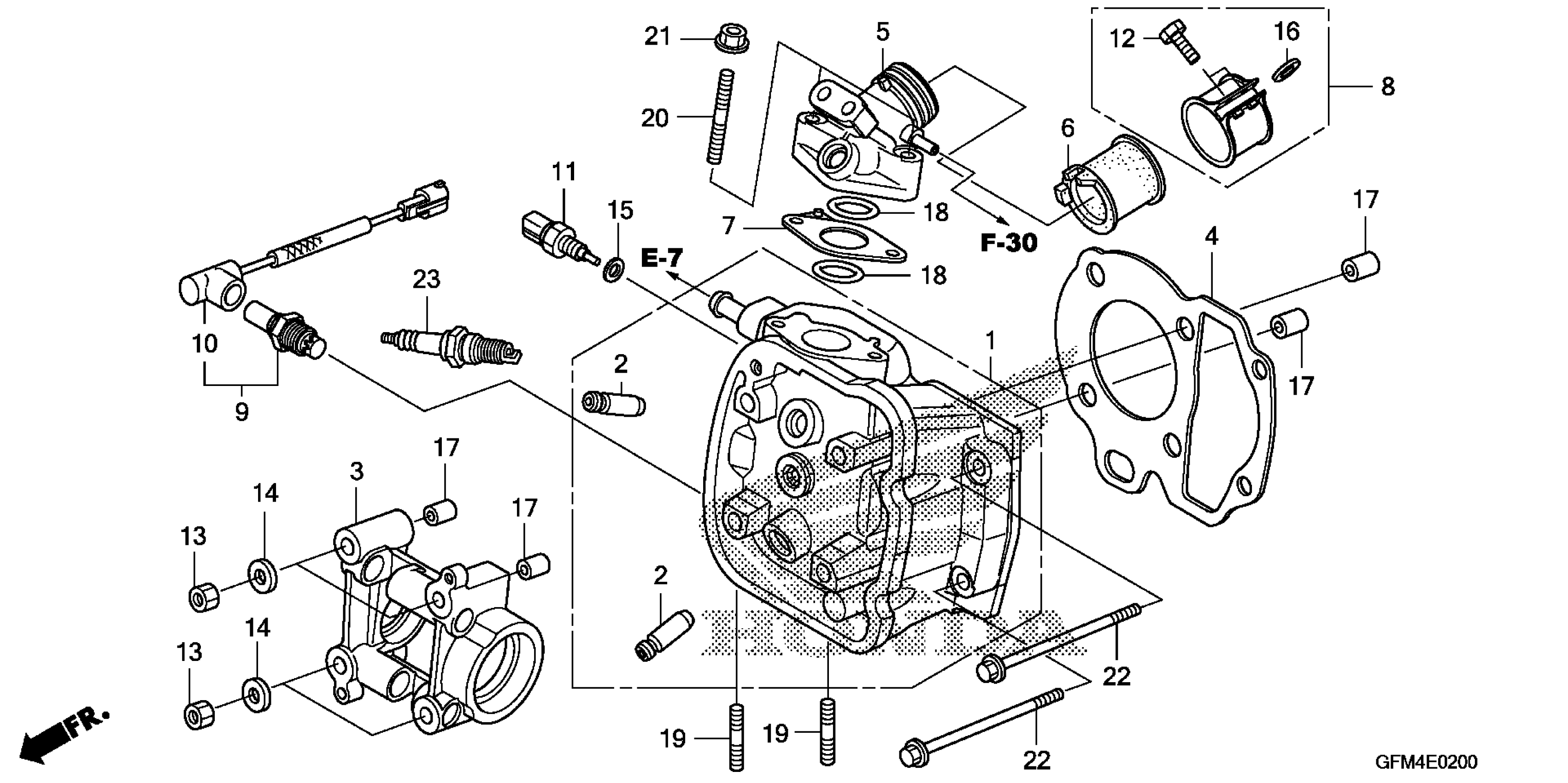

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-GFM-K00

$214.23

2

GUIDE, VALVE (OVER SIZE)

12204-KVB-305

$10.59

3

HOLDER, CAMSHAFT

12211-GFM-970

$96.90

4

GASKET, CYLINDER HEAD

12251-GFM-890

$14.99

5

PIPE, INLET

17110-GFM-K00

$42.90

5

PIPE, INLET

17110-GFM-K01

$42.90

6

INSULATOR, THROTTLE BODY

17112-GFM-B20

$10.84

7

INSULATOR, IN. PIPE

17119-GFM-970

$8.19

8

BAND, INSULATOR

17255-GFM-900

$8.81

9

SENSOR, OXYGEN

36532-GFM-901

$112.42

10

WIRE, OXYGEN SENSOR

36533-GFM-901

$40.38

11

SENSOR ASSY., WATER TEMPERATURE

37870-KTF-641

$27.70

12

BOLT, RECESSED (5X20)

90005-MBW-000

$1.97

13

NUT, HEX. (7MM)

90201-GCC-C50

$3.26

14

WASHER (7.2X16X2.5)

90401-GFM-900

$1.58

15

WASHER, SPECIAL (12MM)

90454-GFM-900

$2.23

16

WASHER (5MM)

90482-GCC-C50

$1.30

17

PIN, DOWEL (8X14)

90701-GF6-000

$3.89

18

O-RING (25.5X1.9)

91308-GFM-900

$4.95

19

BOLT, STUD (6X12)

92900-06012-0B

$1.32

20

BOLT 2, STUD (6X32) This part replaces 92900-06032-0B.

92900-06032-0E

$2.41

20

BOLT 2, STUD (6X32)

92900-06032-0E

$2.41

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

BOLT, FLANGE (6X100)

95701-06100-00

$2.75

23

SPARK PLUG (CR7EH9) (NGK)

98059-57916

$7.24

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-57926.

98059-59916

$6.79

23

SPARK PLUG (CR8EH9) (NGK) | (Optional).

98059-58916

$7.31

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$6.79

23

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-58926.

98059-59916

$6.79

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

23

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$6.79

23

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$6.79

23

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$6.79

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79

23

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$6.79
