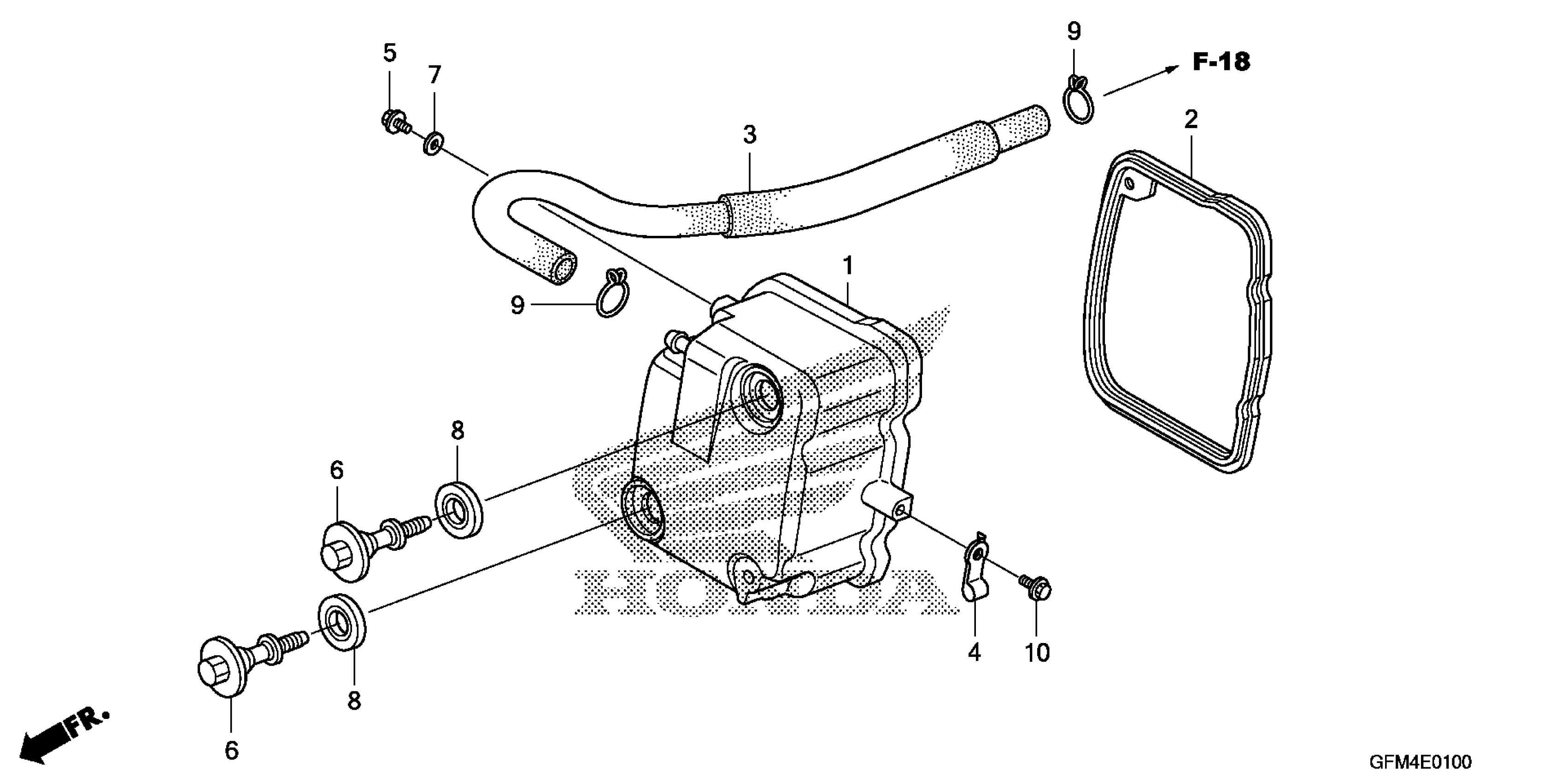

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD This part replaces 12310-GFM-K00.

12310-GFM-K01

$152.80

1

COVER, CYLINDER HEAD

12310-GFM-K01

$152.80

2

GASKET, HEAD COVER

12391-GFM-970

$11.22

3

TUBE, BREATHER

17218-GFM-900

$10.62

4

CLAMP, PURGE CONTROL VALVE TUBE

17418-GFM-K00

$2.45

5

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.80

6

BOLT, HEAD COVER

90017-GCC-000

$0.84

7

WASHER, SEALING (6.5MM)

90461-GFM-K00

$1.65

8

RUBBER, MOUNTING

90543-MV9-670

$4.60

9

CLIP, TUBE (B12.5)

90654-GFM-970

$1.68

10

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
