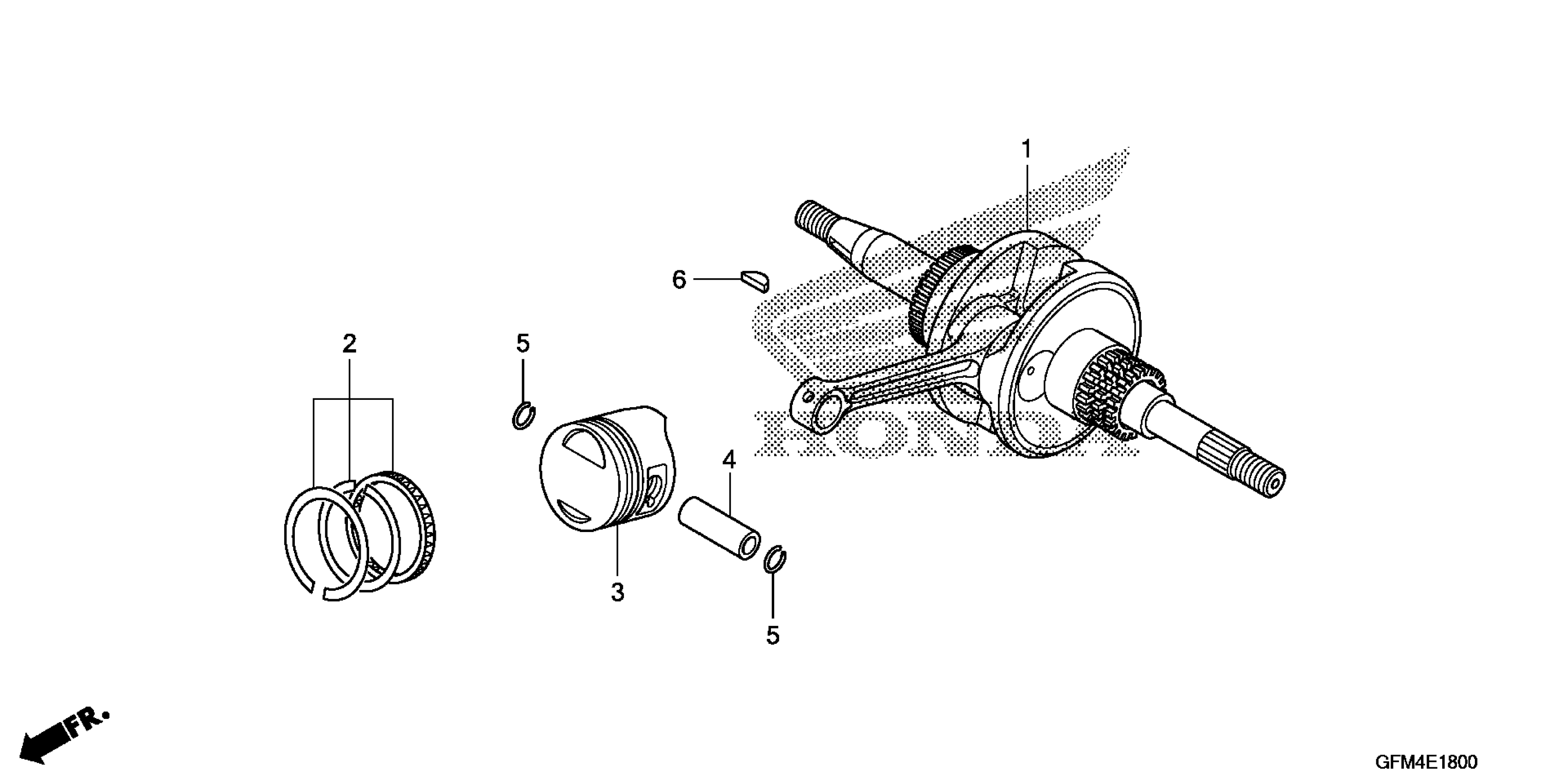

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-GFM-B20

$382.80

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-GCC-C50.

13011-KWW-740

$12.01

2

RING SET, PISTON (STD) (RIKEN)

13011-KWW-740

$12.01

2

RING SET, PISTON (0.25) (RIKEN) | (Optional). This part replaces 13012-GCC-C50.

13021-KWW-740

$12.16

2

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13014-GCC-B50

$37.05

2

RING SET, PISTON (0.75) (RIKEN) | (Optional). This part replaces 13014-GCC-C50.

13014-GCC-B50

$37.05

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13015-GCC-B50

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13015-GCC-C50.

13015-GCC-B50

Unavailable

2

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13021-KWW-740

$12.16

2

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13031-KWW-740

$12.16

2

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13041-KWW-740

$12.16

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-KWW-740

$12.16

3

PISTON (STD)

13101-GFM-900

$65.72

3

PISTON (0.25) | (Optional).

13102-GFM-900

$71.10

3

PISTON (0.50) | (Optional).

13103-GFM-900

$68.02

3

PISTON (0.75) | (Optional).

13104-GFM-900

$72.13

3

PISTON (1.00) | (Optional).

13105-GFM-900

$69.38

4

PIN, PISTON

13111-GCC-C50

Unavailable

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

KEY, WOODRUFF (4MM)

90741-GFM-900

$3.51
