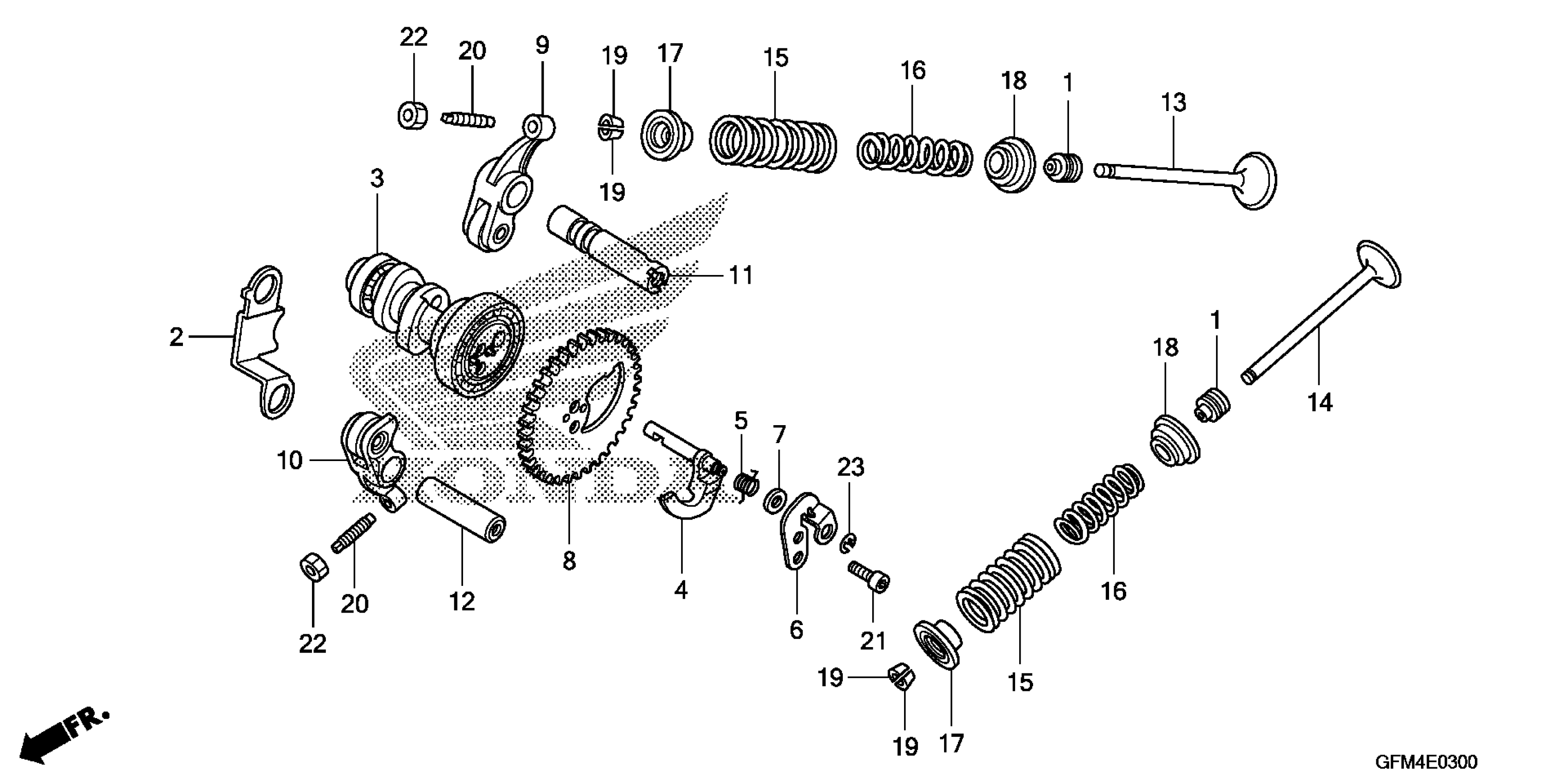

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-GB4-681

$6.32

1

SEAL, VALVE STEM (ARAI)

12209-GB4-682

$6.57

2

PLATE, CAM STOPPER

12215-GFM-900

$5.44

3

CAMSHAFT

14100-GFM-B20

$118.69

4

WEIGHT, DECOMPRESSION

14102-GFM-900

$105.23

5

SPRING, DECOMPRESSION

14106-GFM-900

$2.44

6

PLATE, WEIGHT SETTING

14107-GFM-900

$5.28

7

SPACER, DECOMPRESSION SPRING

14108-GFM-900

$1.49

8

SPROCKET, CAM (34T)

14321-GFM-900

$46.52

9

ARM, IN VLV ROCKER This part replaces 14430-GFM-890.

14430-GFM-900

$91.33

10

ARM, EX. VLV ROCKER This part replaces 14440-GFM-890.

14440-GFM-900

$86.12

11

SHAFT, IN. ROCKER ARM

14451-GFM-900

$14.16

12

SHAFT, EX. ROCKER ARM

14461-GCC-000

$8.77

13

VALVE, IN.

14711-GFM-900

$37.67

14

VALVE, EX.

14721-GFM-901

$63.05

15

SPRING, VALVE (OUTER)

14751-KVB-900

Unavailable

16

SPRING, VALVE (INNER)

14761-KVB-900

$1.49

17

RETAINER, VALVE SPRING This part replaces 14771-GFM-900.

14771-GB4-680

$8.68

18

SEAT, VALVE SPRING

14775-GFM-900

$6.31

19

COTTER, VALVE

14781-GFM-900

$5.05

20

SCREW, TAPPET ADJUSTING

90012-GFM-900

$2.64

21

BOLT, SOCKET KNOCK (5MM)

90083-KVB-900

$1.49

22

NUT, TAPPET ADJUSTING

90206-001-000

$1.66

23

E-RING (4MM)

90601-GFM-970

$1.49
