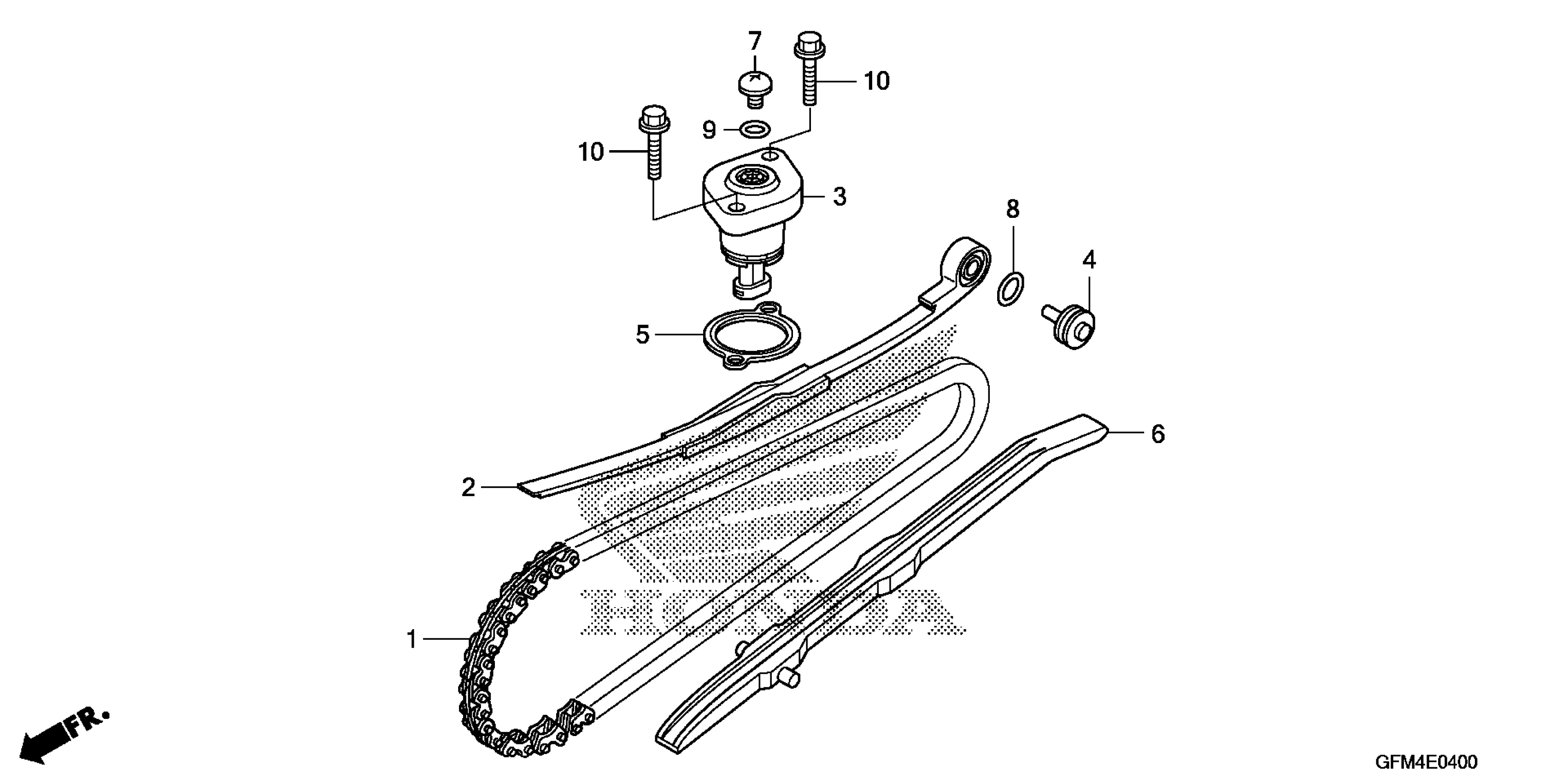

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 CAM CHAIN + TENSIONER Diagram

#

Description

Price

1

CHAIN, CAM (90L) (BORG WARNER)

14401-GFM-901

$49.64

1

CHAIN, CAM (90L) (SCR-0404 SV) (DAIDO)

14401-GFM-971

$45.06

2

TENSIONER, CAM CHAIN

14510-GFM-970

Unavailable

3

LIFTER ASSY., TENSIONER

14520-GFC-771

$65.16

4

PIVOT, CAM CHAIN TENSIONER

14531-GFM-970

$3.29

5

GASKET, TENSIONER LIFTER This part replaces 14560-GFC-891.

14560-GFC-902

$4.04

5

GASKET, TENSIONER LIFTER

14560-GFC-902

$4.04

6

GUIDE, CAM CHAIN

14611-KVB-900

$0.91

7

SCREW, PAN (6X6)

90005-GFM-970

$1.78

8

O-RING (15.2X1.5)

91301-GR0-004

$2.46

8

O-RING (15.2X1.5) This part replaces 91301-HM5-630.

91301-GR0-004

$2.46

9

O-RING (1.5X9.5)

91306-GFM-970

$1.81

10

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
