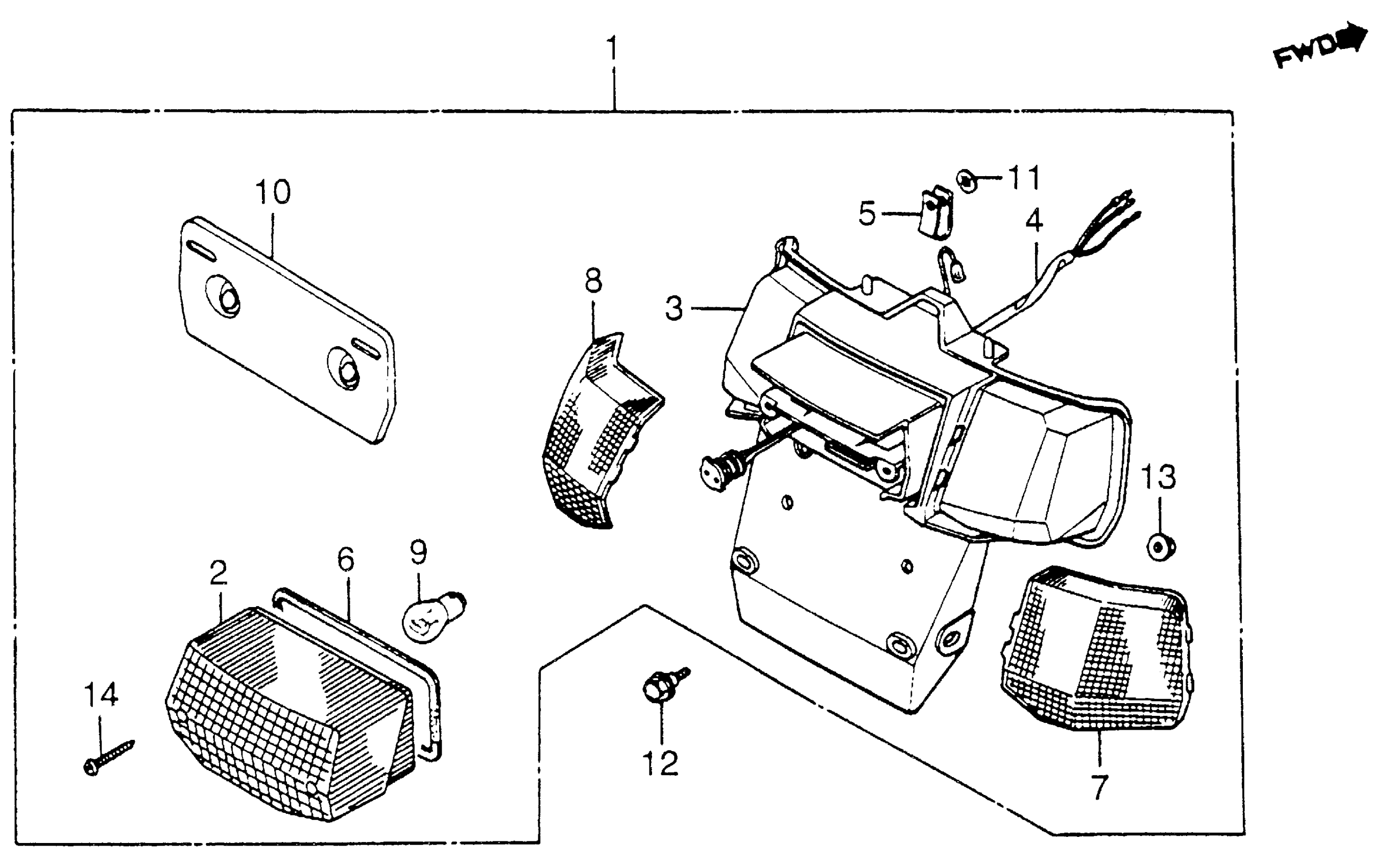

Honda NH80MDA (84) AERO 80, JPN, VIN# JH2HF010-ES100002 TO JH2HF010-ES113604 TAILLIGHT Diagram

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-GC8-672

Unavailable

LENS, TAILLIGHT This part replaces 33702-GC8-611.

33702-GC8-614

Unavailable

LENS, TAILLIGHT This part replaces 33702-GC8-613.

33702-GC8-614

Unavailable

LENS, TAILLIGHT

33702-GC8-614

Unavailable

BASE, TAILLIGHT (NOT AVAILABLE)

33704-GC8-672

Unavailable

WIRE, TAILLIGHT

33705-GC8-611

Unavailable

CLAMP, RR. COMBINATION WIRE

33706-GC8-003

Unavailable

GASKET, TAILLIGHT LENS

33709-GC8-611

Unavailable

LENS, R. DUMMY (NOT AVAILABLE)

33711-GC8-671

Unavailable

LENS, L. DUMMY

33712-GC8-671

Unavailable

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-GC8-720

Unavailable

NUT, PUSH

90108-GC8-003

Unavailable

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, FLANGE (6MM)

90302-187-000

$2.39

SCREW, TAPPING (4X30)

93901-24780

$1.49
