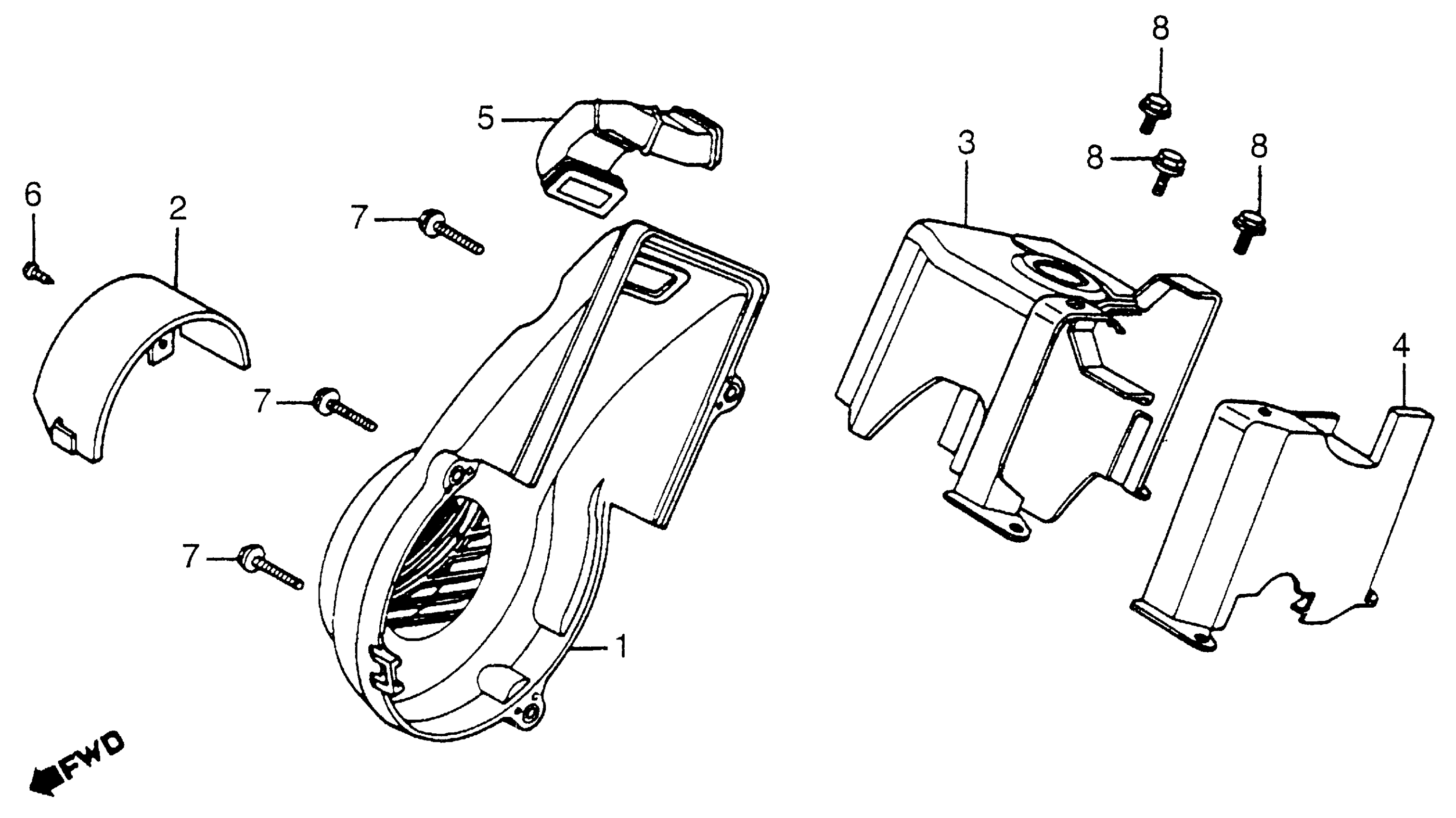

Honda NH80MDA (84) AERO 80, JPN, VIN# JH2HF010-ES100002 TO JH2HF010-ES113604 FAN COVER + SHROUD + AIR GUIDE COVER Diagram

COVER, FAN

19610-GC8-000

Unavailable

COVER, AIR GUIDE

19615-GC7-000

Unavailable

SHROUD A

19620-GC8-000

Unavailable

SHROUD B

19630-GC8-000

Unavailable

TUBE, FAN COVER

19650-GC8-000

Unavailable

SCREW, TAPPING (4X12)

93904-24380

Unavailable

BOLT, FLANGE (6X20) | Use up to Engine SN ES113597 This part replaces 95700-06020-07.

95701-06020-07

$1.62

BOLT, FLANGE (6X20) | Use from Engine SN ES113598 This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20) | Use up to Engine SN ES113597

95701-06020-07

$1.62

BOLT, FLANGE (6X20) | Use from Engine SN ES113598

95701-06020-08

$1.49

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
