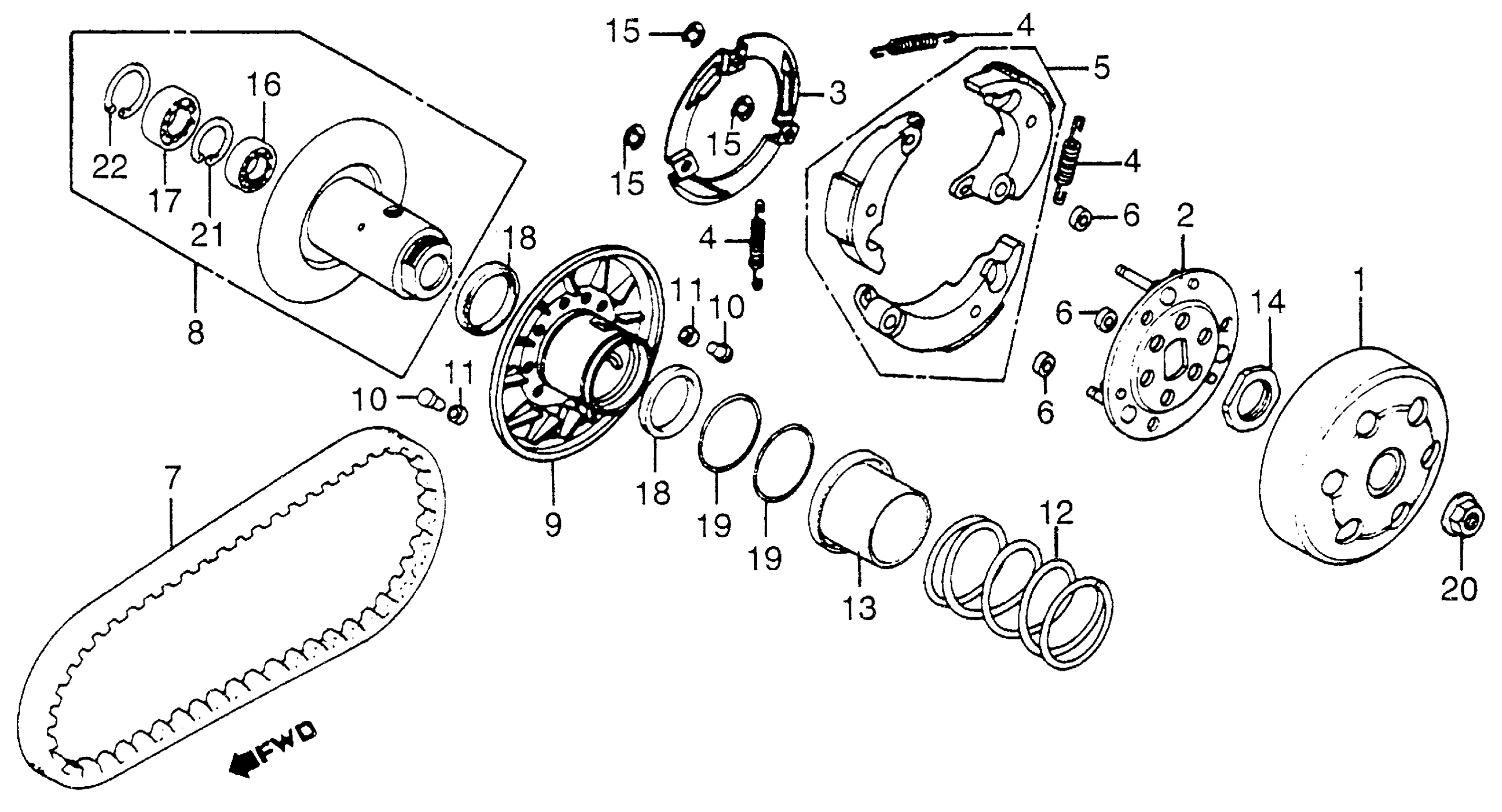

Honda NH80MDA (84) AERO 80, JPN, VIN# JH2HF010-ES100002 TO JH2HF010-ES113604 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER)

22101-GC8-010

Unavailable

2

PLATE, DRIVE

22350-GC8-000

Unavailable

3

PLATE, CLUTCH SIDE

22361-GC7-000

Unavailable

4

SPRING, CLUTCH

22401-GC8-000

$3.35

5

PLATE ASSY. SET, DRIVE

22300-KBN-305

Unavailable

5

PLATE ASSY. SET, DRIVE This part replaces 22535-GC8-305.

22300-KBN-305

Unavailable

6

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

7

BELT, DRIVE

23100-GC8-004

Unavailable

8

FACE ASSY., DRIVEN This part replaces 23200-GC8-000.

23205-GC8-305

Unavailable

8

FACE ASSY., DRIVEN This part replaces 23200-GC8-010.

23205-GC8-305

Unavailable

8

FACE ASSY., DRIVEN This part replaces 23200-GC8-020.

23205-GC8-305

Unavailable

8

FACE ASSY., DRIVEN

23205-GC8-305

Unavailable

9

FACE, MOVABLE DRIVEN

23220-GC8-000

Unavailable

10

PIN, ROLLER GUIDE

23225-GC8-003

Unavailable

11

ROLLER, GUIDE

23226-GC8-003

$4.48

12

SPRING, DRIVEN FACE

23233-GC8-000

Unavailable

13

COLLAR, SEAL

23237-GA7-700

Unavailable

14

NUT, SPECIAL (28MM)

90202-187-000

$7.32

15

CIRCLIP (7MM)

90605-166-720

$1.80

16

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

17

BEARING, RADIAL BALL (6902U) (TOYO)

91002-GA7-701

$24.58

17

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$24.58

18

SEAL, DRIVEN FACE (ARAI)

91211-187-003

$6.98

19

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$4.22

20

NUT, FLANGE (10MM)

94050-10000

$1.59

21

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

22

CIRCLIP (INNER) (28MM)

94520-28000

$1.49
