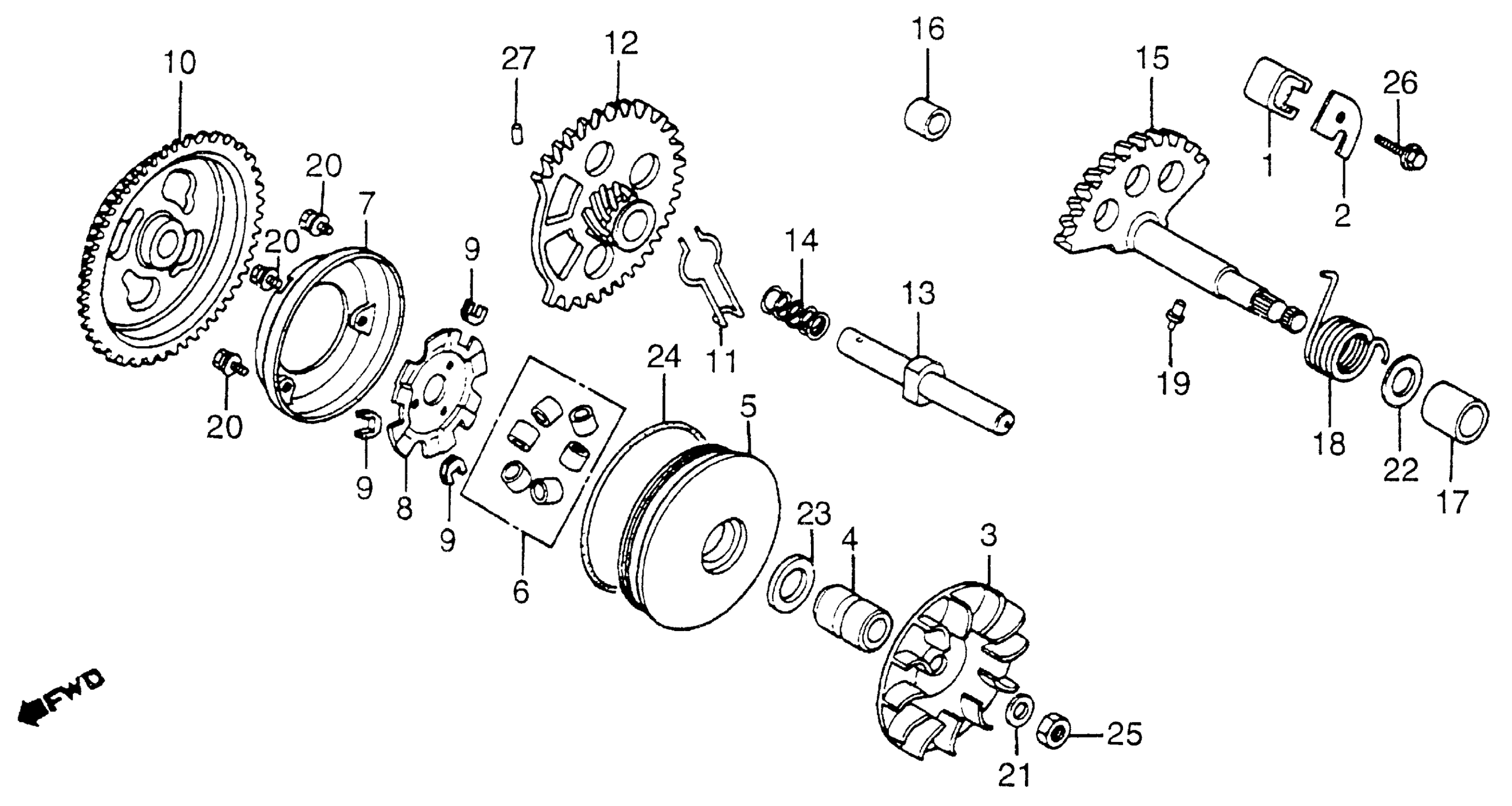

Honda NH80MDA (84) AERO 80, JPN, VIN# JH2HF010-ES100002 TO JH2HF010-ES113604 DRIVE FACE + KICK STARTER Diagram

#

Description
Price

1

STOPPER, KICK RETURN

11205-GA7-000

Unavailable

2

PLATE, KICK RETURN STOPPER

11206-GA7-000

Unavailable

3

FACE, PRIMARY DRIVE

22102-GC8-000

Unavailable

4

BOSS, DRIVE FACE This part replaces 22105-GC8-000.

22105-GC8-010

Unavailable

4

BOSS, DRIVE FACE

22105-GC8-010

Unavailable

5

FACE, MOVABLE DRIVE This part replaces 22110-GC8-010.

22110-GN3-670

Unavailable

5

FACE, MOVABLE DRIVE

22110-GN3-670

Unavailable

6

ROLLER SET, WEIGHT

22123-GC8-305

Unavailable

7

SEAL, MOVABLE FACE

22126-GC8-000

Unavailable

8

PLATE, LAMP

22131-GC8-000

Unavailable

9

PIECE, SLIDE

22132-GC8-000

Unavailable

10

GEAR, KICK STARTER DRIVEN

28220-GC8-000

Unavailable

11

SPRING, STARTER GEAR FRICTION

28223-GA7-000

Unavailable

12

GEAR, STARTER IDLE

28230-GC8-000

Unavailable

13

SHAFT, STARTER IDLE This part replaces 28241-GC8-000.

28241-KG8-900

Unavailable

13

SHAFT, STARTER IDLE

28241-KG8-900

Unavailable

14

SPRING, STARTER IDLE

28242-GA7-000

Unavailable

15

SPINDLE, KICK STARTER

28250-GC8-000

Unavailable

16

BUSH (12X16X12)

28254-GA7-003

Unavailable

16

BUSH (12X16X12)

28254-GA7-004

Unavailable

17

BUSH B, KICK SPINDLE

28254-187-003

Unavailable

17

BUSH B, KICK SPINDLE This part replaces 28254-187-004.

28254-187-003

Unavailable

18

SPRING, KICK STARTER

28281-GC8-000

Unavailable

19

PIN, SPECIAL (4.5MM)

28282-GA7-000

Unavailable

20

BOLT-WASHER (4X10) This part replaces 90005-187-000.

90005-GAH-600

$1.62

21

WASHER, SPECIAL (10X18)

90426-GW0-730

$3.49

21

WASHER, SPECIAL (10X18) This part replaces 90426-001-000.

90426-GW0-730

$3.49

22

WASHER B, THRUST (14MM)

90428-958-000

$4.66

22

WASHER (14MM)

90451-155-000

$3.78

23

OIL SEAL (24X31X3.5)

91203-GC8-003

$9.49

24

O-RING (87.2X2.6) (ARAI)

91305-GC8-003

Unavailable

25

NUT, HEX. (10MM)

94031-10000

$1.49

26

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

26

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

27

ROLLER (3X8.5)

96220-30085

$1.49
