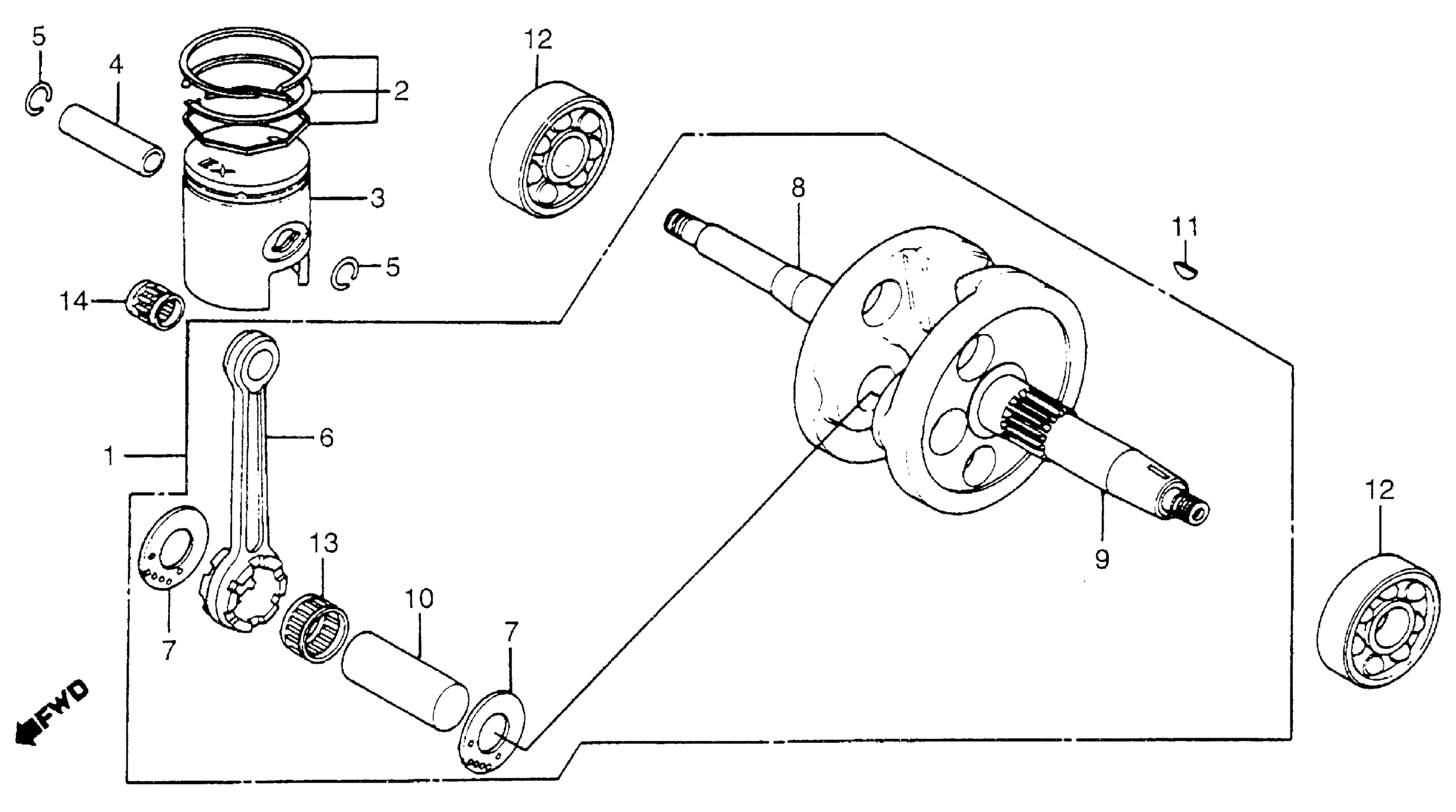

Honda NH80MDA (84) AERO 80, JPN, VIN# JH2HF010-ES100002 TO JH2HF010-ES113604 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-GC8-010.

13000-GC8-020

Unavailable

1

CRANKSHAFT

13000-GC8-020

Unavailable

2

RING SET, PISTON

13010-GC8-305

Unavailable

2

RING SET, PISTON This part replaces 13011-GC8-005.

13010-GC8-305

Unavailable

3

PISTON

13101-GC8-000

Unavailable

4

PIN, PISTON

13111-GC8-000

Unavailable

5

CLIP, PISTON PIN (12MM)

13115-156-000

$2.92

6

ROD, CONNECTING This part replaces 13201-GC8-300.

13201-GC8-310

Unavailable

6

ROD, CONNECTING

13201-GC8-310

Unavailable

7

PLATE CON-ROD SID This part replaces 13202-166-003.

13202-GT4-691

$9.45

8

CRANKSHAFT, R. This part replaces 13311-GC8-300.

13311-GC8-310

Unavailable

8

CRANKSHAFT, R.

13311-GC8-310

Unavailable

9

CRANKSHAFT, L. This part replaces 13321-GC8-300.

13321-GC8-310

Unavailable

9

CRANKSHAFT, L.

13321-GC8-310

Unavailable

10

PIN, CRANK

13381-GC8-300

Unavailable

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

12

BEARING, RADIAL BALL This part replaces 91001-GC8-004.

91005-GF9-003

Unavailable

12

BEARING, RADIAL BALL

91005-GF9-003

Unavailable

13

BEARING, CONNECTING ROD BIG END (RED) (TOMUSON) This part replaces 91001-156-004.

91001-166-004

Unavailable

13

BEARING, CONNECTING ROD BIG END (RED) (TOMUSON)

91001-166-004

Unavailable

13

BEARING, CONNECTING ROD BIG END (BLUE) (TOMUSON) (NOT AVAILABLE) This part replaces 91002-156-004.

91002-166-004

Unavailable

13

BEARING, CONNECTING ROD BIG END (BLUE) (TOMUSON) (NOT AVAILABLE)

91002-166-004

Unavailable

13

BEARING, CONNECTING ROD BIG END (WHITE) (TOMUSON) (NOT AVAILABLE) This part replaces 91003-156-004.

91003-166-004

Unavailable

13

BEARING, CONNECTING ROD BIG END (WHITE) (TOMUSON) (NOT AVAILABLE)

91003-166-004

Unavailable

14

BEARING, CONNECTING ROD SMALL END (TOMUSON) This part replaces 91102-GC8-003.

91102-GC8-004

$14.67

14

BEARING, CONNECTING ROD SMALL END (TOMUSON)

91102-GC8-004

$14.67
