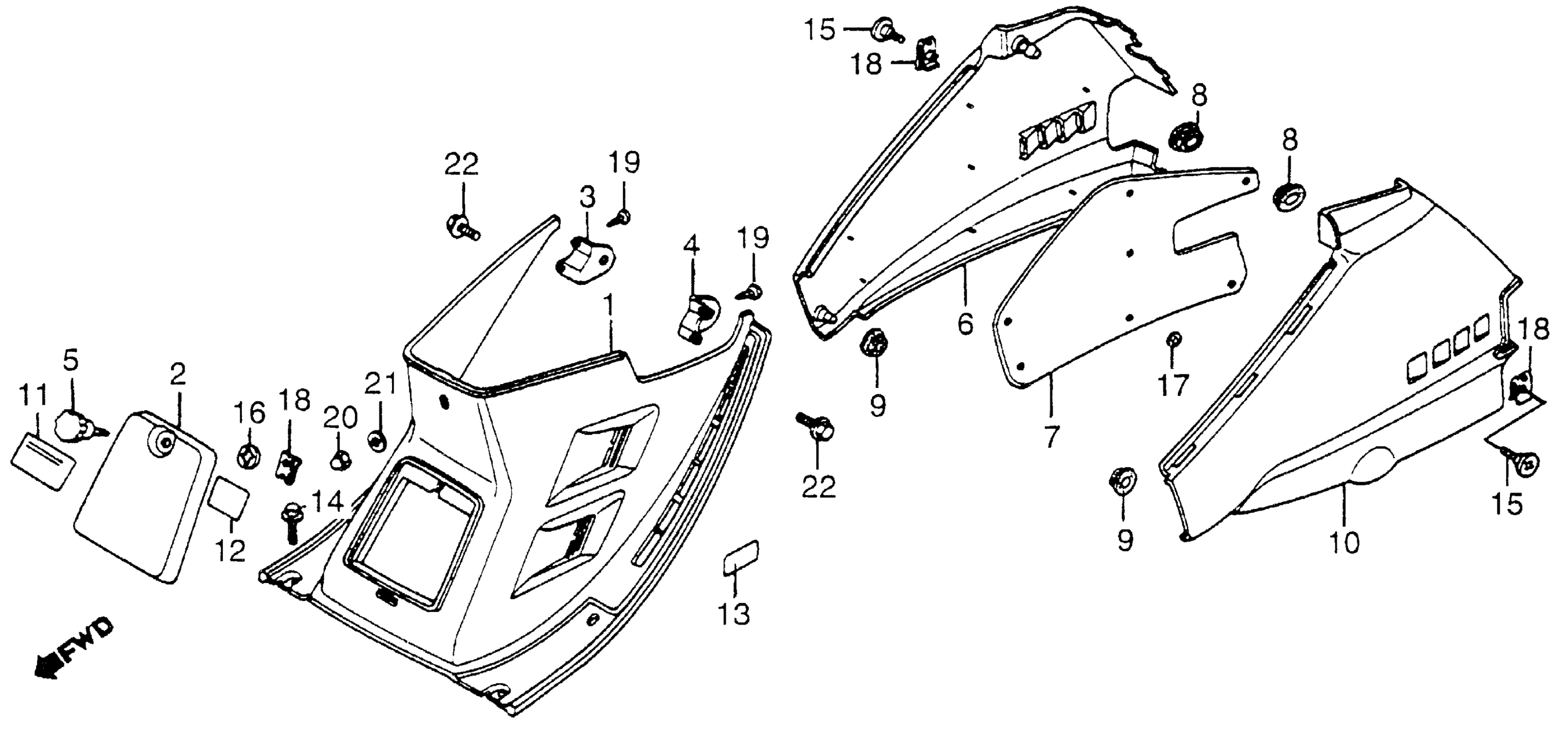

Honda NH80MDA (84) AERO 80, JPN, VIN# JH2HF010-ES100002 TO JH2HF010-ES113604 CENTER COVER + BODY COVER Diagram

#

Description
Price

1

COVER, BODY CENTER *NH122* (BETA GRAY)

80151-GC8-000ZA

Unavailable

2

COVER, BATTERY BOX *NH122* (BETA GRAY)

80152-GC8-000ZA

Unavailable

3

STAY, R. CENTER COVER

80154-GC8-000

Unavailable

4

STAY, L. CENTER COVER

80155-GC8-000

Unavailable

5

KNOB, BATTERY COVER

80157-GC8-000

Unavailable

6

COVER, R. BODY *R4C* (CANDY RUBY RED)

83500-GC8-000ZL

Unavailable

6

COVER, R. BODY *NH137M* (MOONLIT SILVER METALLIC)

83500-GC8-000ZN

Unavailable

7

PANEL, HEAT PROOF

83501-GC8-000

Unavailable

8

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

9

GROMMET, SIDE COVER

83551-376-000

Unavailable

10

COVER, L. BODY *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

83600-GC8-000ZL

Unavailable

10

COVER, L. BODY *NH137M* (MOONLIT SILVER METALLIC)

83600-GC8-000ZN

Unavailable

11

LABEL, CAUTION (NOT AVAILABLE)

87505-GC8-770

Unavailable

12

LABEL, BATTERY CAUTION

87506-GC8-610

Unavailable

13

LABEL, HELMET HOLDER

87511-323-670

$2.48

14

BOLT, FLANGE (6MM)

90111-147-000

$2.62

15

BOLT, COVER SETTING

90142-GC8-000

$4.97

16

NUT, SPEED

90310-GC8-000

$2.29

17

NUT, SPEED (3MM)

90313-567-000

$3.69

18

NUT, CLIP (6MM)

90344-692-003

$5.30

19

SCREW, TAPPING (4X10)

93904-24280

Unavailable

20

NUT, CAP (6MM)

94021-06020

$1.65

20

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.65

20

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.65

21

WASHER, PLAIN (6MM)

94103-06200

$1.03

22

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.14

22

BOLT, FLANGE (6X10)

95701-06010-00

$1.14
