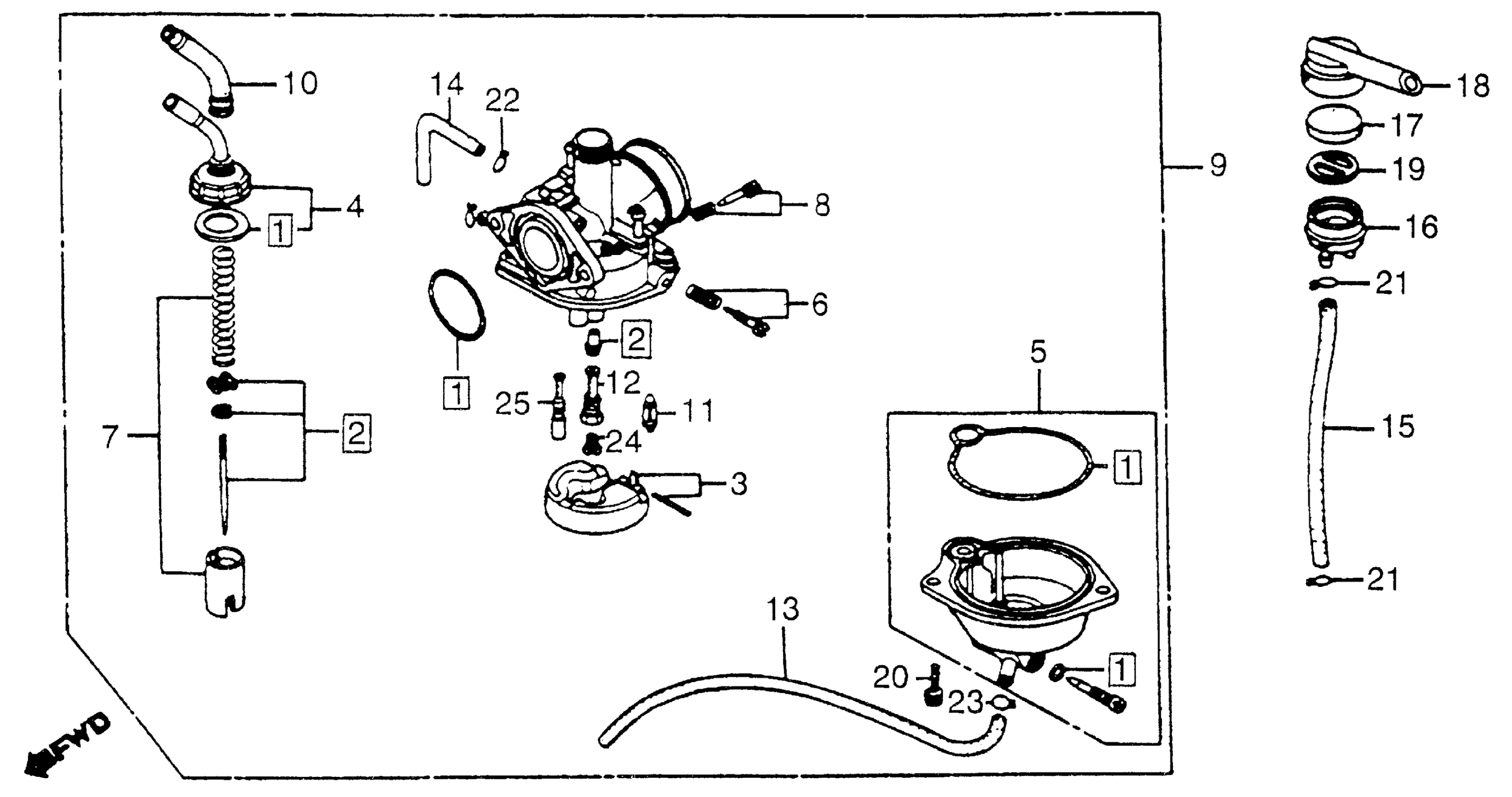

Honda NH80MDA (84) AERO 80, JPN, VIN# JH2HF010-ES100002 TO JH2HF010-ES113604 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-GC8-004.

16010-GM9-405

Unavailable

1

GASKET SET

16010-GM9-405

Unavailable

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-GC8-721

Unavailable

3

FLOAT SET This part replaces 16013-GBL-710.

16013-KBN-900

Unavailable

3

FLOAT SET This part replaces 16013-KG8-003.

16013-KBN-900

Unavailable

4

TOP SET This part replaces 16014-GC8-004.

16014-KK7-740

Unavailable

4

TOP SET

16014-KK7-740

Unavailable

5

CHAMBER SET, FLOAT

16015-GC7-014

Unavailable

6

SCREW SET, A

16016-GB4-003

$23.02

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-GC8-004

Unavailable

8

SCREW SET B

16028-GC8-004

$16.35

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-GC8-721

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-439-921.

16148-KB1-921

$17.51

10

CAP, CABLE SEALING

16148-KB1-921

$17.51

11

VALVE, FLOAT

16155-883-005

$20.11

12

HOLDER, NEEDLE JET

16165-GC8-004

Unavailable

13

TUBE, OVERFLOW

16198-GC7-004

Unavailable

14

TUBE, AIR VENT

16199-GC8-004

Unavailable

15

TUBE, BYSTARTER

16607-GC8-000

Unavailable

16

BODY, BYSTARTER CHAMBER

17215-GA6-670

Unavailable

17

ELEMENT, BYSTARTER CHAMBER

17216-GA6-670

Unavailable

18

CAP, BYSTARTER CHAMBER

17217-GC8-000

Unavailable

19

PLATE, BYSTARTER SETTING

17218-GB2-000

Unavailable

20

SCREW-WASHER (4X14)

93892-04014-08

$1.49

21

CLIP, TUBE (B7)

95002-02070

$1.80

22

CLIP, TUBE (B8)

95002-02080

$1.80

23

CLIP, TUBE (B6.5)

95002-02650

$1.49

24

JET, MAIN (#82) | (Optional). This part replaces 99101-116-0820.

99101-HP2-0820

$7.87

24

JET, MAIN (#88) This part replaces 99101-116-0880.

99102-GHB-0880

$6.57

24

JET, MAIN (#82) | (Optional). This part replaces 99102-GHB-0820.

99101-HP2-0820

$7.87

25

JET, SLOW (#35)

99103-GC8-0350

$12.12
