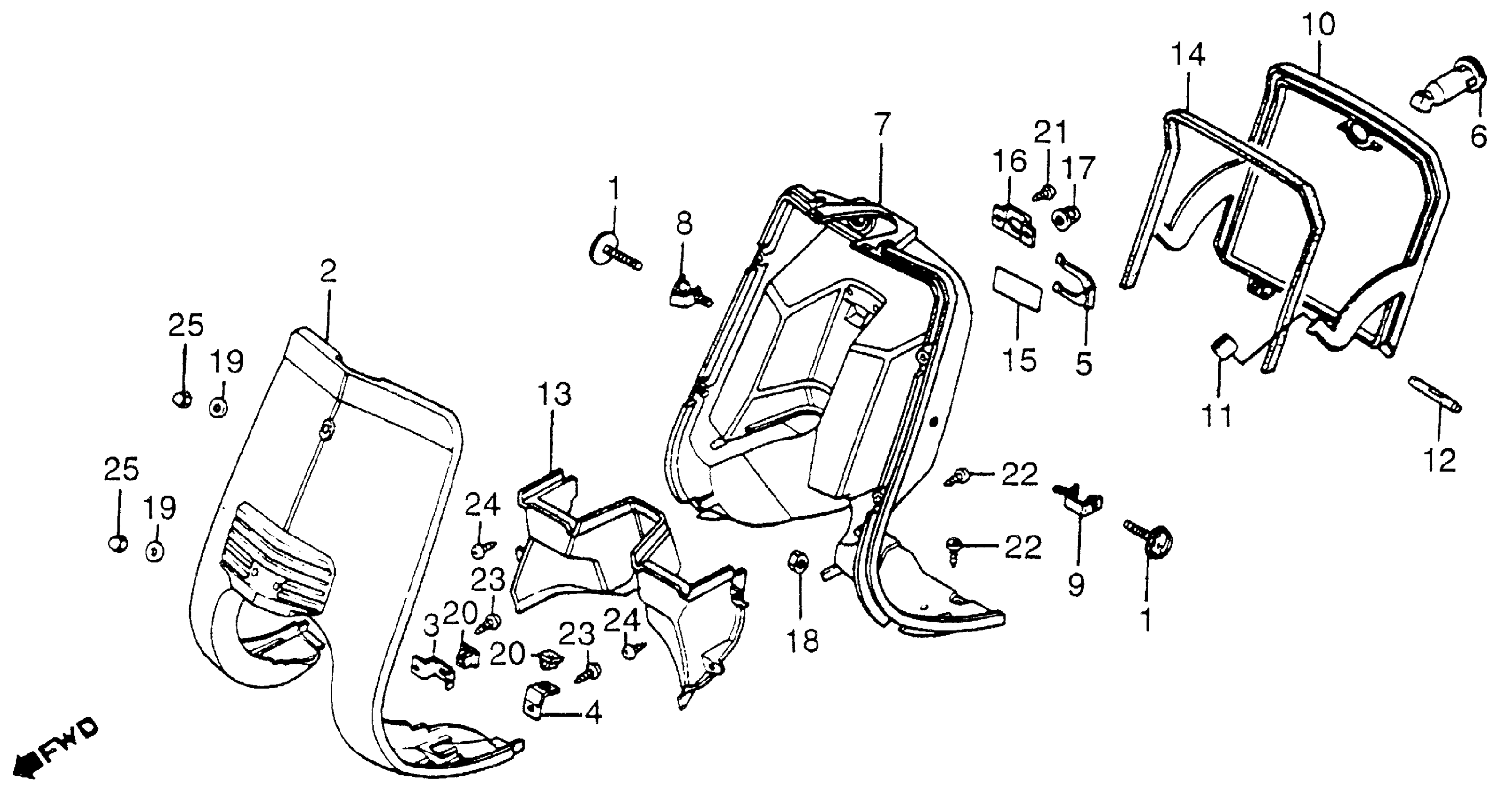

Honda NH80MDA (83) AERO 80, JPN, VIN# JH2HF010-DS000008 TO JH2HF010-DS014522 FRONT COVER + INNER BOX Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

1

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

2

COVER, FR. *R116* (STREAM RED)

64301-GC8-000ZE

Unavailable

2

COVER, FR. *NH131M* (STARLIGHT SILVER METALLIC)

64301-GC8-000ZH

Unavailable

3

BRACKET A, FR. COVER

64305-GC8-000

Unavailable

4

BRACKET B, FR. COVER

64306-GC8-000

Unavailable

5

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

6

LOCK, SIDE BOX (TYPE1)

77239-GA7-810

Unavailable

7

BOX (INNER) *NH122* (BETA GRAY) (NOT AVAILABLE)

81131-GC8-720ZA

Unavailable

8

STAY, R. REFLECTOR

81133-GC8-720

Unavailable

9

STAY, L. REFLECTOR

81134-GC8-720

Unavailable

10

LID, BOX (INNER) *NH122* (BETA GRAY)

81141-GC8-000ZA

Unavailable

11

RUBBER, LID STOPPER

81142-GC8-000

Unavailable

12

PIN, BOX LID (INNER)

81143-GC8-000

$6.97

13

TRAY, BOX (INNER) *NH122* (BETA GRAY)

81146-GC8-000ZA

Unavailable

14

SEAL, BOX (INNER)

81203-GC8-000

Unavailable

15

LABEL, TRUNK CAUTION

81218-GC8-610

Unavailable

16

STRIKER, BOX LOCK

81307-GC8-000

Unavailable

17

NUT, OPEN STAY (6MM)

90301-693-000

$6.36

17

NUT, FLANGE (6MM)

94050-06000

$1.49

18

NUT, FLANGE (6MM)

90302-187-000

$2.39

19

WASHER (6X17)

90474-704-000

$1.49

20

GROMMET, SCREW (4MM)

90662-196-000

$2.20

21

SCREW, TAPPING (4X12)

93901-24380

$1.49

22

SCREW, TAPPING (4X16)

93903-34480

$1.49

23

SCREW, TAPPING (4X12)

93904-24310

Unavailable

24

SCREW, TAPPING (4X12)

93904-24380

Unavailable

25

NUT, CAP (6MM)

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73
