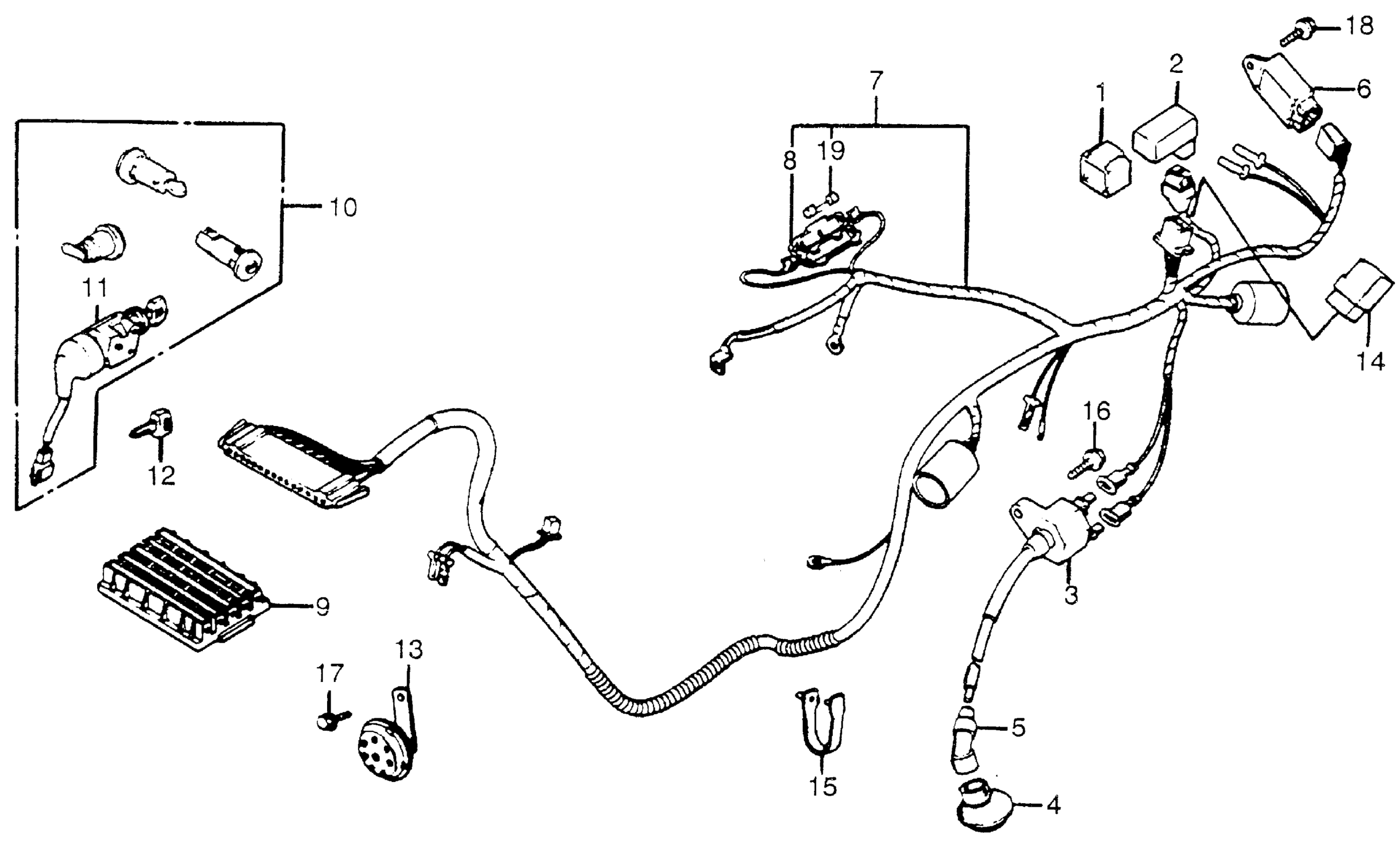

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 WIRE HARNESS + RECTIFIER + KEY SET Diagram

#

Description
Price

1

SUSPENSION, IGNITION CONTROL MODULE

30406-471-000

$8.69

2

MODULE, IGNITION CONTROL (CDI)

30410-187-008

Unavailable

3

COIL, IGNITION This part replaces 30510-GN3-670.

30510-GR2-405

$74.70

3

COIL, IGNITION This part replaces 30510-GN3-700.

30510-GR2-405

$74.70

3

COIL, IGNITION

30510-GR2-405

$74.70

4

SEAL, IGNITION This part replaces 30605-GC8-000.

30605-GR1-010

Unavailable

4

SEAL, IGNITION This part replaces 30605-GC8-010.

30605-GR1-010

Unavailable

4

SEAL, IGNITION This part replaces 30605-GR1-000.

30605-GR1-010

Unavailable

4

SEAL, IGNITION

30605-GR1-010

Unavailable

5

CAP SET, NOISE SUPPRESSOR This part replaces 30600-GN0-305.

30600-GN0-315

Unavailable

5

CAP SET, NOISE SUPPRESSOR

30600-GN0-315

Unavailable

5

CAP SET, NOISE SUPPRESSOR This part replaces 30700-GA7-601.

30600-GN0-315

Unavailable

5

CAP SET, NOISE SUPPRESSOR This part replaces 30700-GA7-602.

30600-GN0-315

Unavailable

6

RECTIFIER, REGULATOR (SHINDENGEN) This part replaces 31600-GM0-003.

31600-GW0-004

Unavailable

6

RECTIFIER, REGULATOR (SHINDENGEN)

31600-GW0-004

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-GN3-670

Unavailable

8

CASE, FUSE (10A)

32120-383-830

Unavailable

9

MULTI-CONNECTOR (15X5)

32150-GJ2-003

Unavailable

10

LOCK SET This part replaces 35010-GM9-000.

35010-GM9-010

Unavailable

10

LOCK SET

35010-GM9-010

Unavailable

11

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-GM9-000.

35100-GY1-860

Unavailable

11

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-GM9-010.

35100-GY1-860

Unavailable

11

SWITCH ASSY., COMBINATION & LOCK

35100-GY1-860

Unavailable

12

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

12

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$9.74

12

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

12

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

12

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$9.74

12

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

13

HORN This part replaces 38110-GM9-000.

38110-GM9-014

Unavailable

14

RELAY, STARTER This part replaces 38501-GN2-004.

38501-GN2-014

$49.65

14

RELAY, STARTER

38501-GN2-014

$49.65

15

STRAP C, CABLE | Use up to Frame SN FK200999

90668-GA7-003

Unavailable

15

STRAP B, CABLE (125MM) (BLUE) | Use from Frame SN FK201000

90669-671-003

Unavailable

16

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

16

BOLT, HEX. (5X20) This part replaces 92300-05020-0A.

92101-05020-0A

$1.49

16

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

17

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

17

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

19

FUSE A (10A)

98200-11000

$1.80
