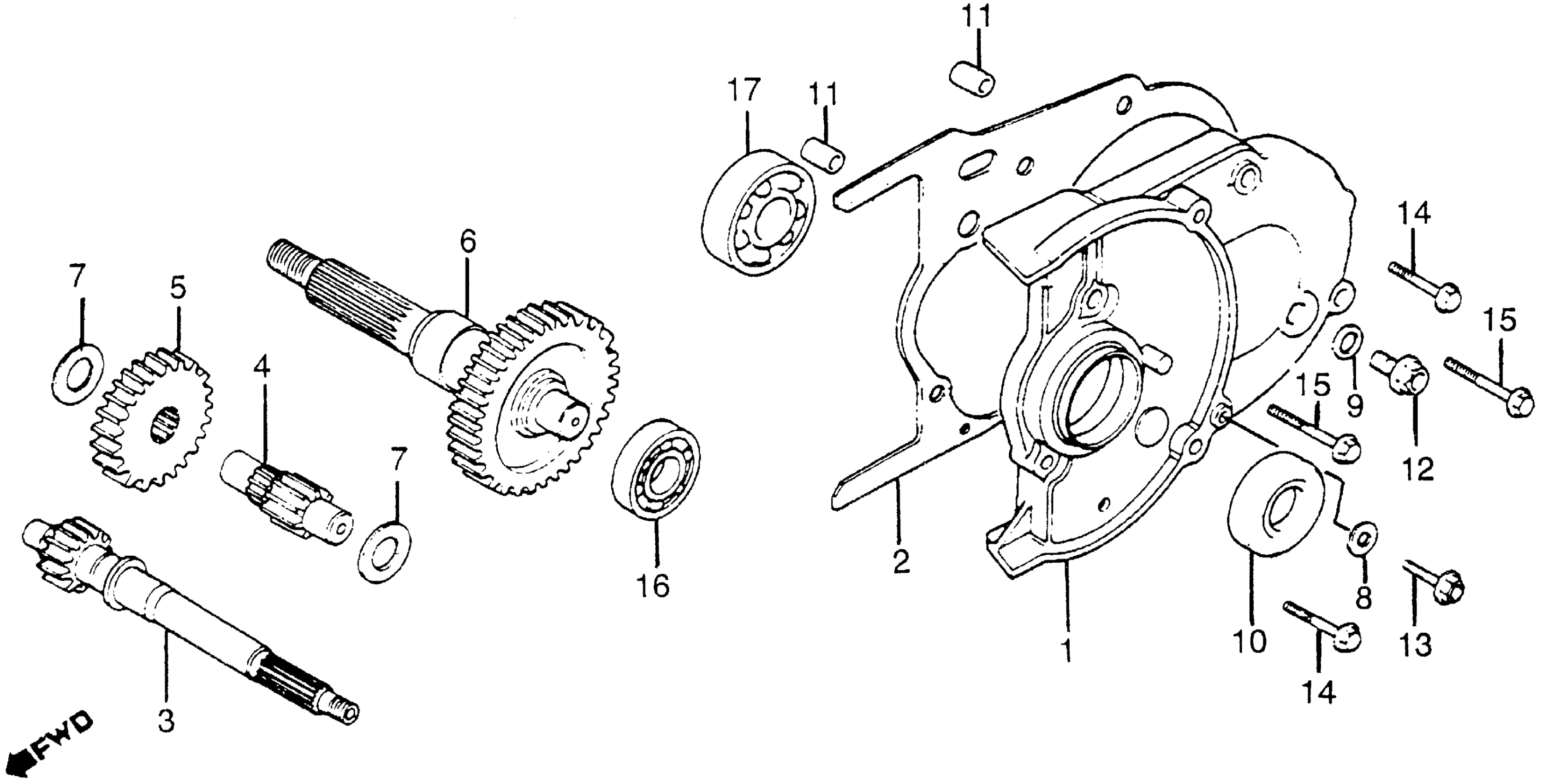

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 TRANSMISSION Diagram

#

Description
Price

1

COVER, TRANSMISSION

21301-GC7-000

Unavailable

2

GASKET, TRANSMISSION COVER This part replaces 21395-GC8-000.

21395-GC8-010

Unavailable

2

GASKET, TRANSMISSION COVER

21395-GC8-010

Unavailable

2

GASKET, TRANSMISSION COVER This part replaces 21395-GC8-306.

21395-GC8-010

Unavailable

3

DRIVESHAFT

23411-GN3-670

Unavailable

4

COUNTERSHAFT

23421-GC2-000

Unavailable

4

COUNTERSHAFT This part replaces 23421-GE8-000.

23421-GC2-000

Unavailable

5

GEAR, COUNTER

23422-GE8-000

Unavailable

6

GEAR, FINAL

23430-GN3-670

Unavailable

7

WASHER, THRUST (14MM) (NA USE ALT:90451-PC9-000)

90451-035-900

Unavailable

8

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

9

WASHER (10.2MM)

90481-001-020

$2.92

10

OIL SEAL (17X30X6) (NOK)

91202-892-004

$10.44

11

PIN A, DOWEL (10X14)

94301-10140

$2.28

12

BOLT, FLANGE (10X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 95700-10012-00.

95701-10012-00

$3.33

12

BOLT, FLANGE (10X12)

95701-10012-00

$3.33

13

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

13

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

14

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

14

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

15

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

15

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

16

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49

17

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00
