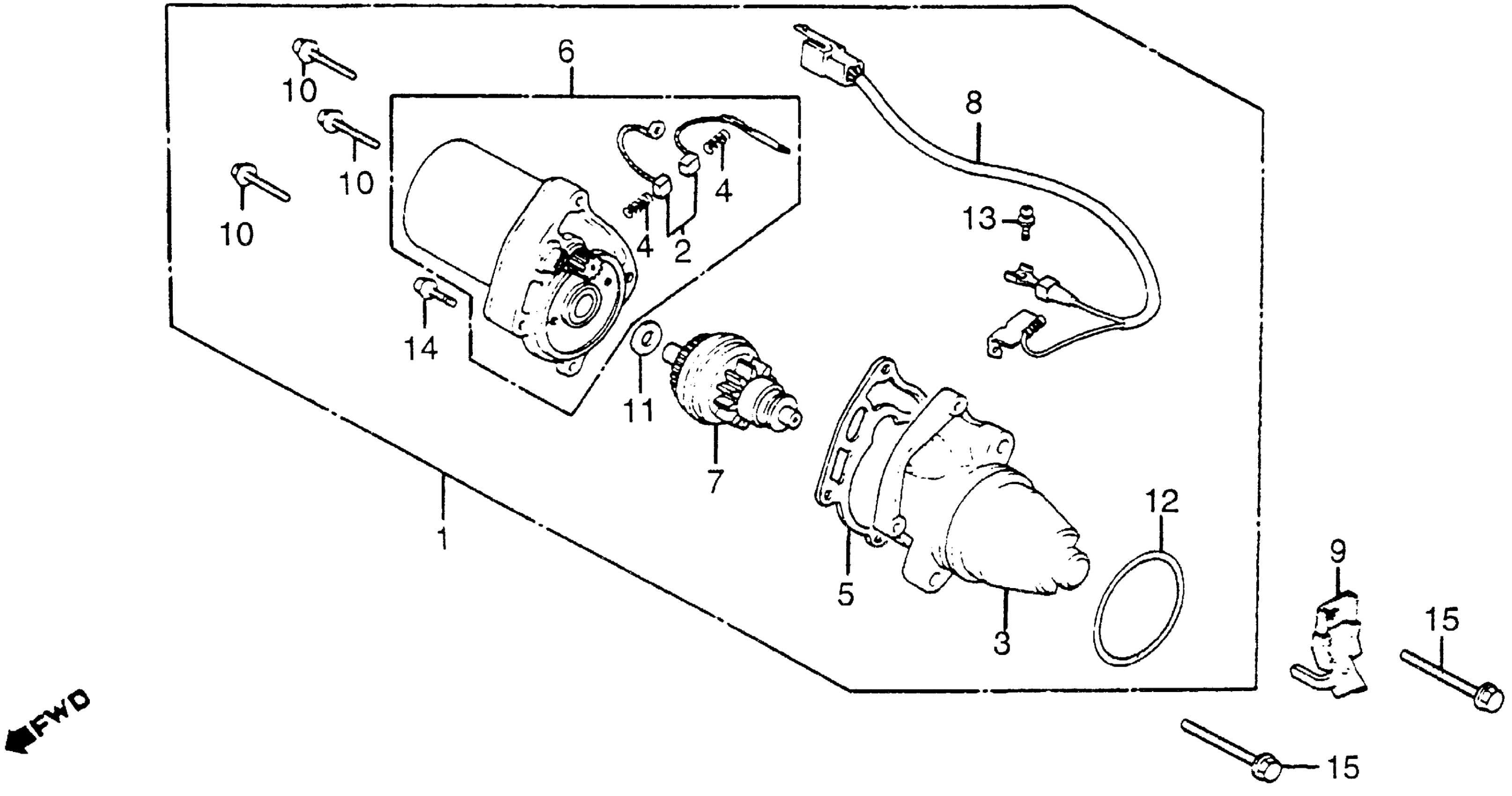

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 STARTER MOTOR Diagram

#

Description
Price

1

MOTOR ASSY., STARTER This part replaces 31200-GC8-014.

31200-GC8-044

Unavailable

1

MOTOR ASSY., STARTER This part replaces 31200-GC8-024.

31200-GC8-044

Unavailable

1

MOTOR ASSY., STARTER This part replaces 31200-GC8-034.

31200-GC8-044

Unavailable

1

MOTOR ASSY., STARTER

31200-GC8-044

Unavailable

2

BRUSH SET

31201-187-701

Unavailable

3

COVER, GEAR

31203-GC8-004

Unavailable

4

SPRING, BRUSH

31204-187-701

$4.54

5

GASKET A

31205-GC8-004

Unavailable

6

STARTER MOTOR

31208-GC8-004

Unavailable

7

PINION ASSY. This part replaces 31209-GC8-004.

31209-GC8-014

Unavailable

7

PINION ASSY.

31209-GC8-014

Unavailable

8

SUB-WIRE HARNESS A

32101-GC8-014

Unavailable

9

CLAMP, WIRE

32913-KG8-000

Unavailable

10

SCREW-WASHER (5X30) This part replaces 90115-GB4-700.

93892-05030-08

$2.92

10

SCREW-WASHER (5X30)

93892-05030-08

$2.92

11

WASHER, PINION

90502-187-701

$2.23

12

O-RING

91309-MA6-000

$3.97

12

O-RING This part replaces 91309-283-005.

91309-MA6-000

$3.97

13

SCREW-WASHER (4X6)

93892-04006-08

$1.49

14

SCREW-WASHER (5X16)

93892-05016-08

$1.49

15

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

15

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
