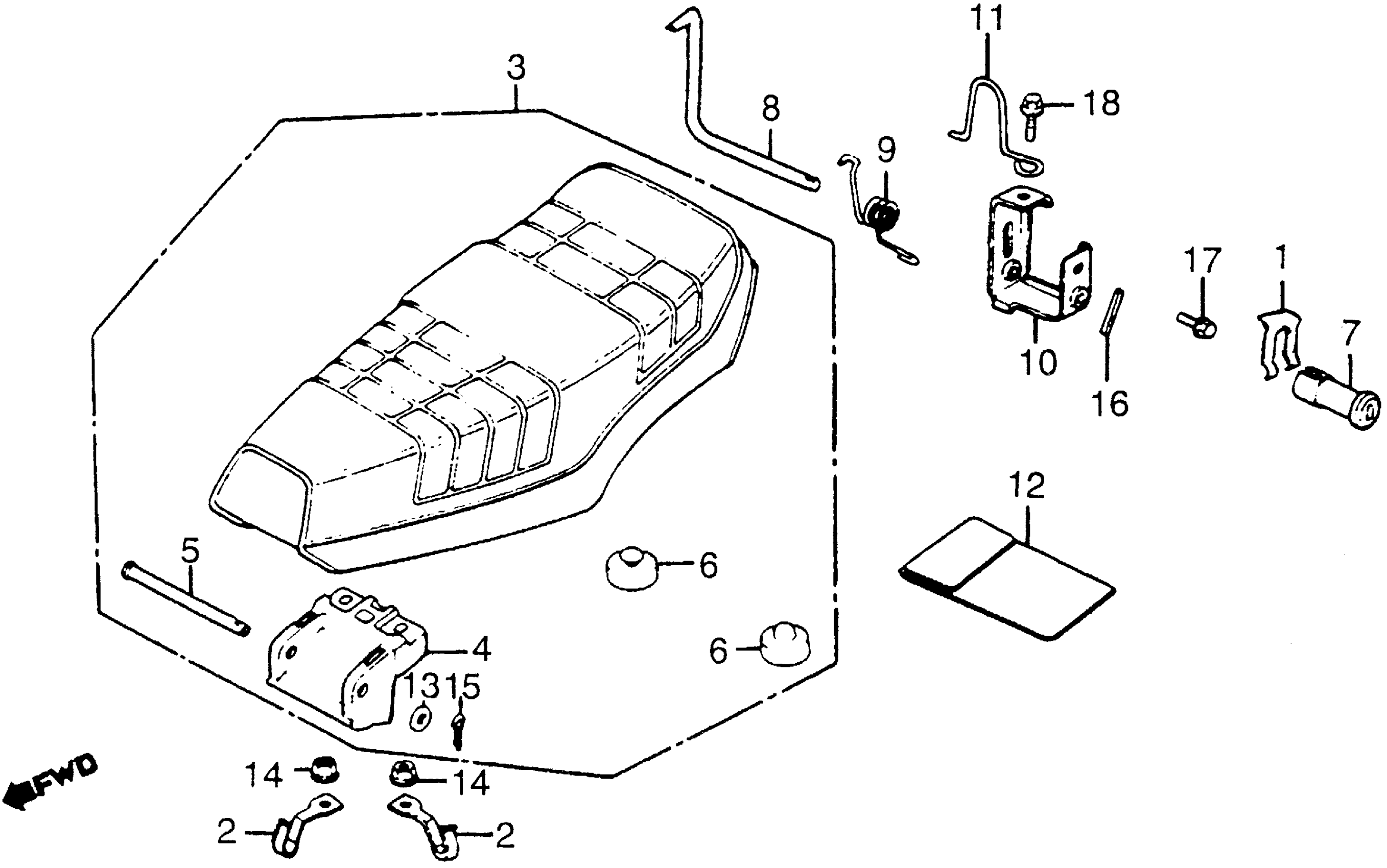

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 SEAT Diagram

#

Description
Price

1

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

2

HOOK, HELMET

77106-GN3-670

Unavailable

3

SEAT ASSY., DOUBLE This part replaces 77200-GN3-670.

77200-GN3-010ZB

Unavailable

4

HINGE, SEAT

77201-GJ8-000

Unavailable

5

PIN, SEAT HINGE

77203-GJ8-000

Unavailable

6

RUBBER, SEAT SETTING

77211-GC8-000

Unavailable

7

LOCK ASSY., SEAT

77230-GE0-003

$57.77

8

CATCH, SEAT

77231-GM9-000

Unavailable

9

SPRING, SEAT CATCH

77232-GJ8-000

Unavailable

10

BRACKET, SEAT CATCH

77235-GM9-000

Unavailable

11

GUIDE, SEAT CATCH

77237-GM9-000

Unavailable

12

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

13

WASHER, PLAIN (7MM)

90755-693-620

Unavailable

14

NUT, FLANGE (6MM)

94050-06000

$1.49

15

PIN, COTTER (1.0X12)

94201-10120

$1.49

16

PIN, SPRING (2X18)

94305-25251

Unavailable

17

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

17

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

18

BOLT, FLANGE (6X14) This part replaces 95700-06014-07.

95701-06014-07

$1.49

18

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
