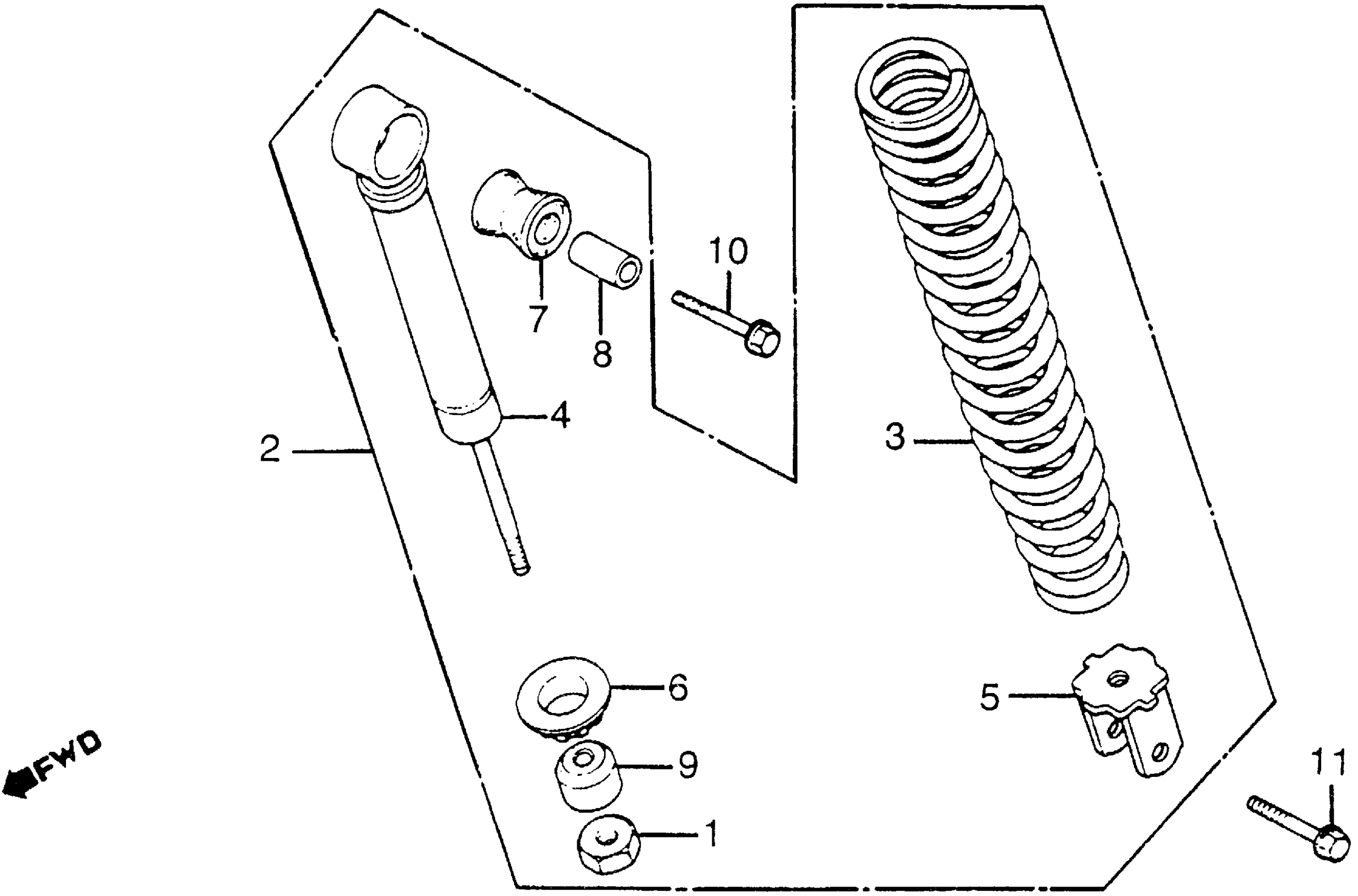

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

NUT, LOCK (8MM)

51413-GB4-003

Unavailable

2

CUSHION ASSY., RR. This part replaces 52400-GN3-671.

52400-GN3-701

Unavailable

2

CUSHION ASSY., RR.

52400-GN3-701

Unavailable

3

SPRING, RR. SHOCK ABSORBER

52401-GN3-671

Unavailable

4

DAMPER, RR.

52410-GN3-671

Unavailable

5

JOINT, RR. SHOCK ABSORBER (LOWER)

52420-GE8-681

Unavailable

6

GUIDE, SPRING

52462-GE8-003

Unavailable

7

BUSH, RR. SHOCK ABSORBER

52485-KR3-003

$4.78

7

BUSH, RR. SHOCK ABSORBER RUBBER

52485-088-901

$4.78

8

COLLAR, RUBBER BUSH

52486-GA7-003

$3.74

9

RUBBER, STOPPER

52517-178-003

Unavailable

10

BOLT, FLANGE (10X40) This part replaces 95800-10040-00.

95801-10040-00

$2.19

10

BOLT, FLANGE (10X40)

95801-10040-00

$2.19

11

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

11

BOLT, FLANGE (8X32) This part replaces 95900-08032-00.

95701-08032-00

$1.49
