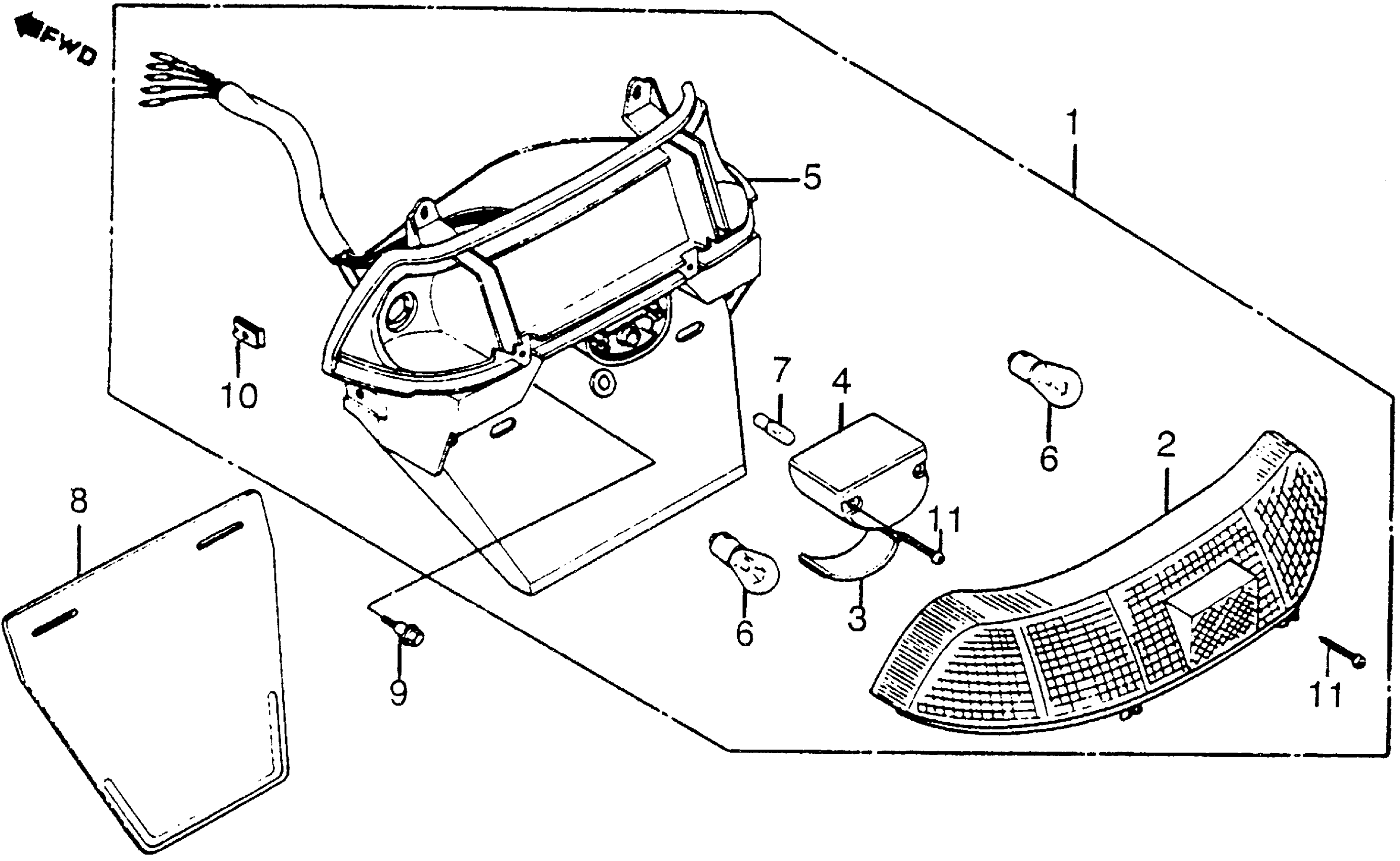

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 REAR COMBINATION LIGHT Diagram

#

Description

Price

1

LIGHT ASSY., RR. COMBINATION (NOT AVAILABLE)

33700-GN3-671

Unavailable

2

LENS, TURN SIGNAL (NOT AVAILABLE)

33702-GN3-671

Unavailable

3

LENS, LICENSE

33705-GN3-671

Unavailable

4

COVER, LICENSE

33706-GN3-671

$14.41

5

BASE, TURN SIGNAL (NOT AVAILABLE)

33710-GN3-671

Unavailable

6

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

7

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

7

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

7

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

7

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

8

SPLASH GUARD

80115-GN3-670

Unavailable

9

BOLT, FLANGE (6MM)

90111-162-000

$2.89

10

NUT, CLIP (6MM)

90344-692-003

$5.55

11

SCREW, TAPPING (4X20)

93901-34520

$1.49
