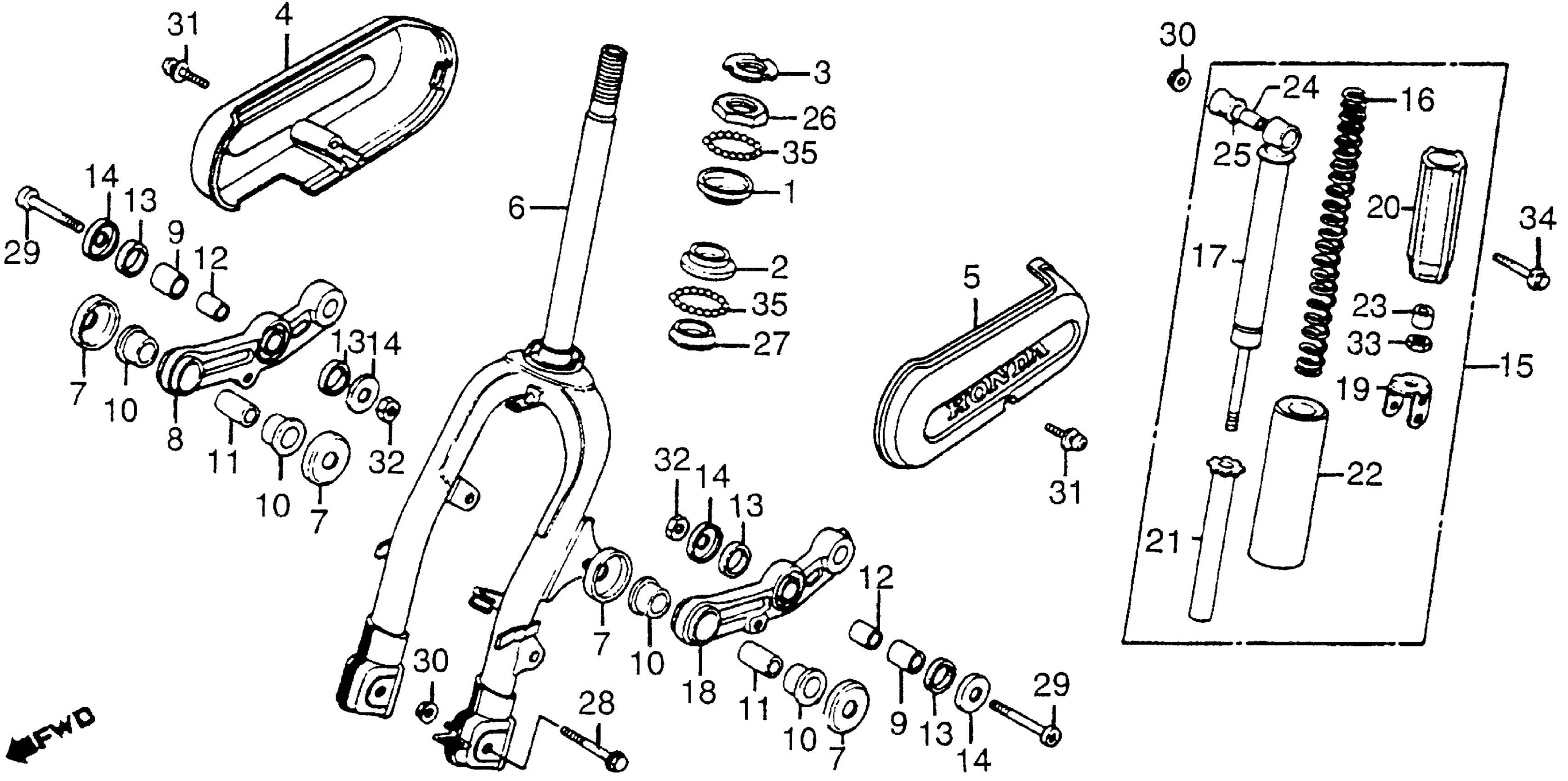

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 FRONT FORK Diagram

#

Description
Price

1

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

1

RACE, STEERING BALL (UPPER) (MITSUBOSHI)

50301-147-003

$12.16

2

RACE, STEERING BALL (LOWER)

50305-GC8-003

$11.64

3

NUT, STEERING STEM LOCK (MITSUBOSHI)

50306-147-003

Unavailable

4

COVER, R. PIVOT ARM *NH1* (BLACK)

51103-GM9-000ZA

Unavailable

5

COVER, L. PIVOT ARM *NH1* (BLACK)

51104-GM9-000ZA

Unavailable

6

SHOCK ABSORBER, FR. *NH1* (BLACK) (NOT AVAILABLE)

51105-GM9-000ZA

Unavailable

7

DUST SEAL, FR. BRAKE ARM This part replaces 51305-GM9-003.

51305-GM9-015

Unavailable

7

DUST SEAL, FR. BRAKE ARM This part replaces 51305-GM9-005.

51305-GM9-015

Unavailable

7

DUST SEAL, FR. BRAKE ARM

51305-GM9-015

Unavailable

8

ARM, R. FR. PIVOT

51311-GM9-000

Unavailable

9

BUSH, FR. FORK (LOWER)

51312-GN2-003

$7.60

10

BUSH,FR FORK UND This part replaces 51314-GM9-711.

51314-GFZ-J01

Unavailable

11

COLLAR, FR. FORK DISTANCE

51334-GM9-000

Unavailable

12

COLLAR, FR. FORK DISTANCE

51334-GN2-000

$6.56

13

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

14

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

15

CUSHION ASSY., FR. (SHOWA) (NOT AVAILABLE)

51400-GN3-671

Unavailable

16

SPRING, FR. FORK

51401-GN3-671

Unavailable

17

DAMPER, FR.

51410-GN3-671

Unavailable

18

ARM, L. FR. PIVOT

51411-GM9-000

Unavailable

19

JOINT, FR. FORK (LOWER)

51420-GN2-003

Unavailable

20

CASE (LOWER)

51421-GM9-003

Unavailable

21

GUIDE, FR. FORK SPRING

51458-GG2-003

Unavailable

22

CASE, FR. FORK (UPPER) *NH119MU* (TEMPEST GRAY METALLIC-U)

51460-GG2-003ZK

Unavailable

23

RUBBER, STOPPER (NOT AVAILABLE)

51475-GM9-003

Unavailable

24

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

25

RUBBER A, JOINT (SHOWA)

52489-331-003

$2.03

26

RACE, STEERING TOP CONE

53211-GC8-003

$14.68

27

RACE, STEERING CONE (LOWER) (MITSUBOSHI)

53212-GC8-003

$7.95

28

BOLT, FLANGE (8X48)

90111-GC3-000

$6.64

29

BOLT, FR. FORK (LOWER)

90149-041-010

Unavailable

30

NUT, HEX. (8MM)

90309-357-000

$3.40

31

SCREW-WASHER (6X16)

93891-06016-07

$1.49

32

NUT, HEX. (8MM)

94002-08000-0S

$1.49

33

NUT, HEX. (8MM)

94030-08000

$1.49

34

BOLT, FLANGE (8X40)

95801-08040-00

$1.49

34

BOLT, FLANGE (8X40) This part replaces 95816-08040-00.

95801-08040-00

$1.49

35

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
