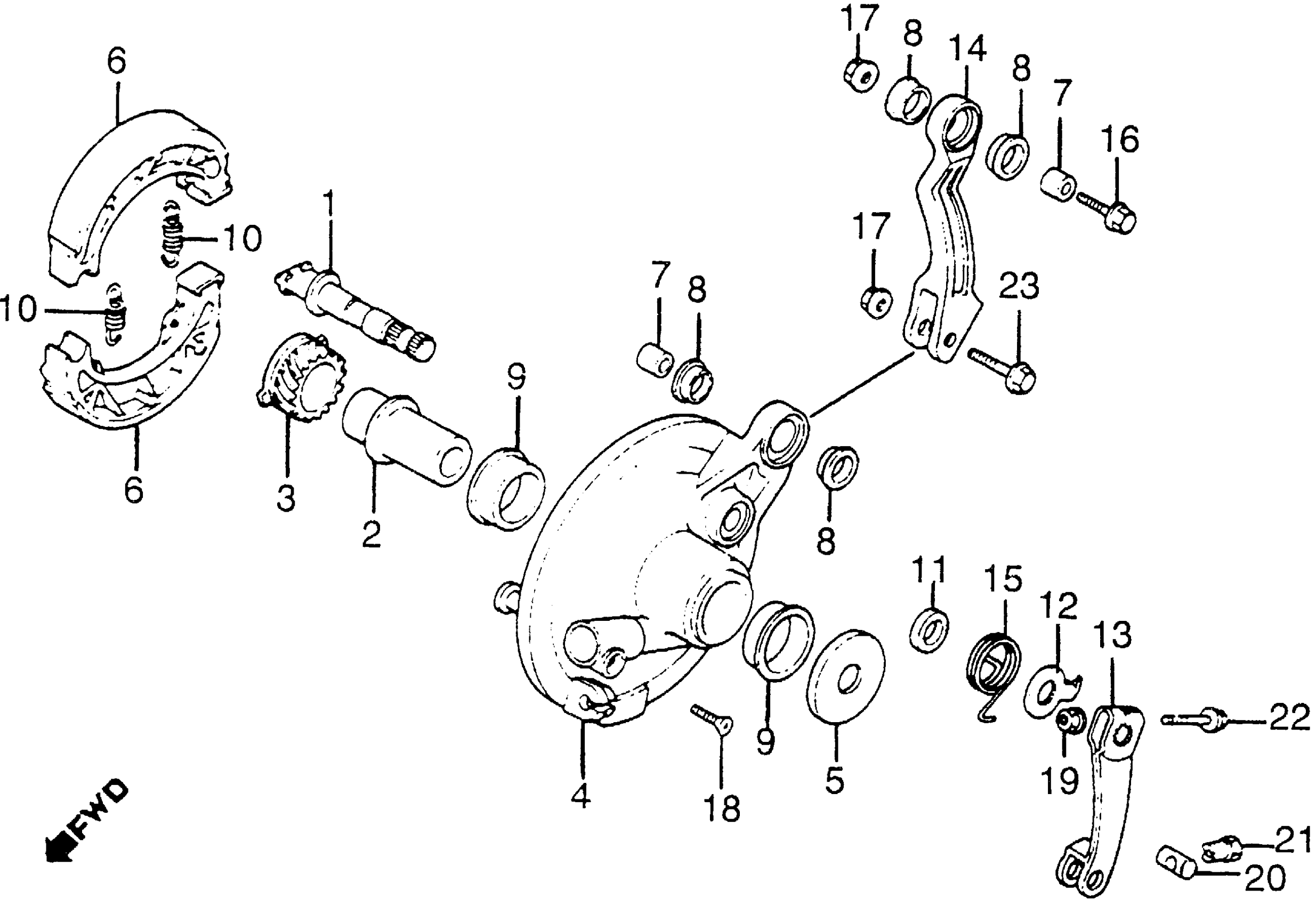

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 FRONT BRAKE PANEL Diagram

#

Description
Price

1

CAM, RR. BRAKE

43141-400-010

$23.52

2

COLLAR A, FR. BRAKE PANEL

44312-GM9-000

Unavailable

3

GEAR, SPEEDOMETER

44806-GM9-003

Unavailable

4

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC)

45010-GM9-305ZA

Unavailable

5

DUST SEAL

45104-GM9-003

Unavailable

6

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

6

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

6

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

6

SHOE, BRAKE (ASK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

7

COLLAR, TORQUE LINK

45124-GM9-000

Unavailable

8

BUSH, TORQUE LINK

45125-GM9-003

Unavailable

9

BUSH, FR. BRAKE CALIPER

45131-GM9-710

Unavailable

10

SPRING, BRAKE SHOE

45133-028-000

$2.03

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

INDICATOR, FR. BRAKE

45145-GM9-000

Unavailable

13

ARM, FR. BRAKE

45410-GM9-000

Unavailable

14

TORQUE LINK, FR. BRAKE

45432-GM9-000

Unavailable

15

SPRING, BRAKE ARM

45435-GM9-000

Unavailable

16

BOLT, FLANGE (8X28)

90105-GN3-000

Unavailable

17

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

17

NUT, FLANGE (8MM)

90309-428-731

$3.35

18

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

JOINT, BRAKE ARM

95015-32001

$1.49

21

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

22

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

22

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

23

BOLT, FLANGE (8X32)

95815-08032-00

Unavailable
