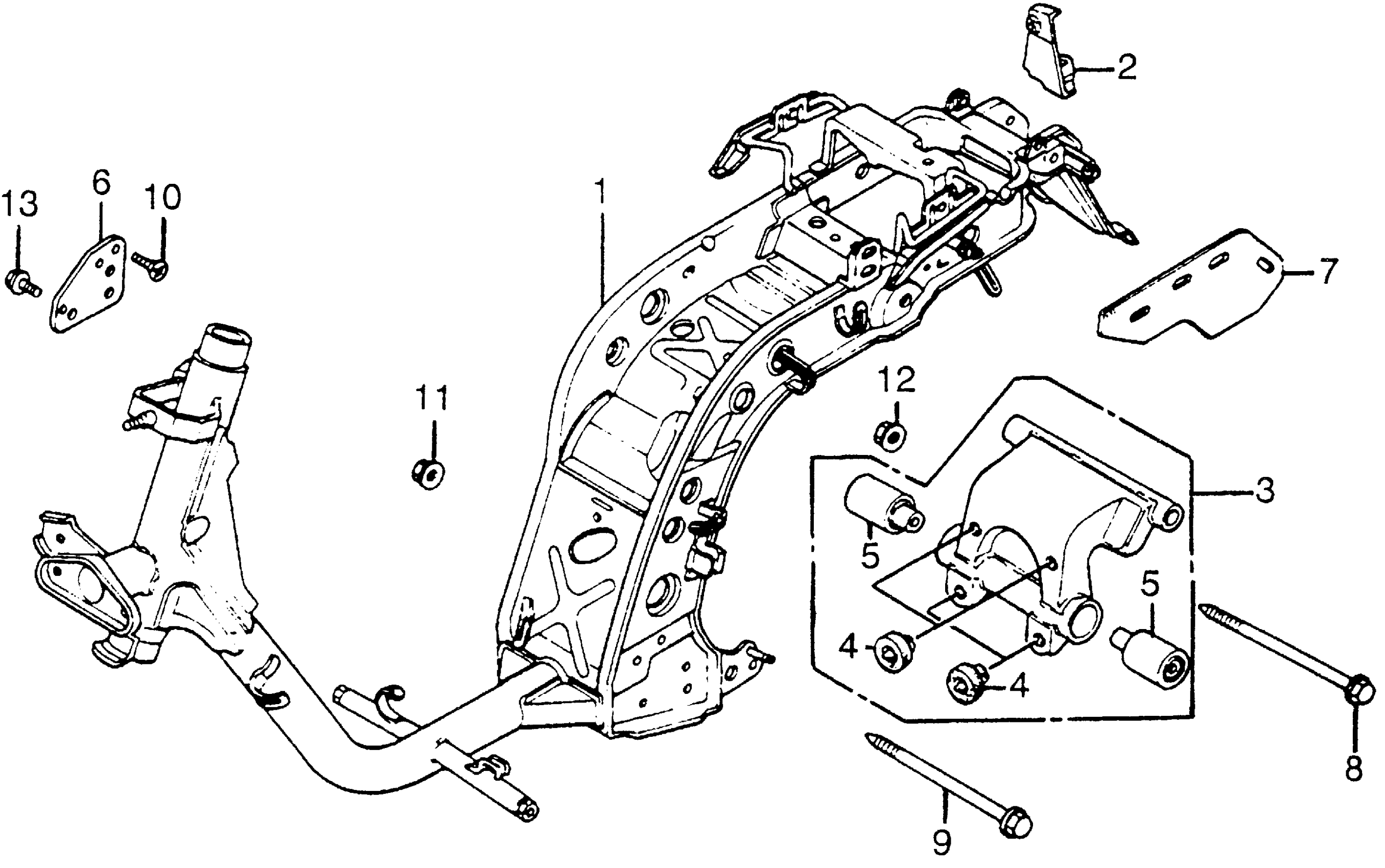

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 FRAME Diagram
#
Description
Price
1
FRAME *NH1* (BLACK)
50100-GN3-670ZA
Unavailable
2
STAY, REGULATOR RECTIFIER
50147-GN3-670
Unavailable
3
BRACKET ASSY., ENGINE HANGER This part replaces 50350-GN3-670.
50350-GN3-672
Unavailable
3
BRACKET ASSY., ENGINE HANGER This part replaces 50350-GN3-671.
50350-GN3-672
Unavailable
3
BRACKET ASSY., ENGINE HANGER
50350-GN3-672
Unavailable
4
RUBBER, STOPPER
50352-GC8-000
Unavailable
5
BUSH, ENGINE HANGER RUBBER
50353-GE8-000
Unavailable
6
STAY B, HANDLE LOCK
53128-GM9-000
Unavailable
7
RUBBER, WATER GUIDE
81205-GN3-670
Unavailable
8
BOLT, FLANGE (10X186) (NOT AVAILABLE)
90103-GN3-670
Unavailable
12
NUT, SELF-LOCK FLANGE (10MM)
90351-GJ8-000
Unavailable
