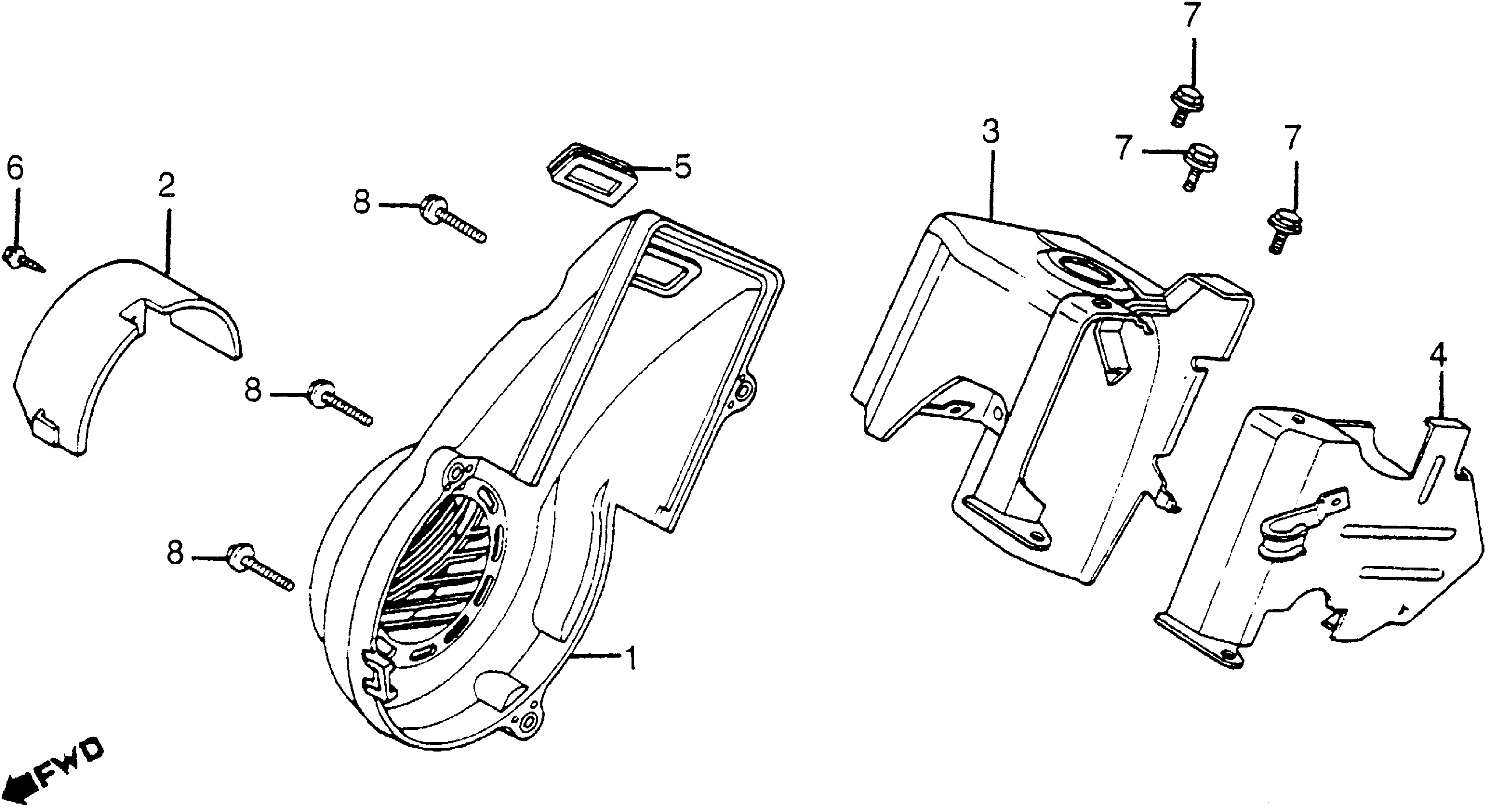

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 FAN COVER + SHROUD + AIR GUIDE COVER Diagram

#

Description

Price

1

COVER, FAN

19610-GC8-000

Unavailable

1

COVER, FAN This part replaces 19610-GN3-670.

19610-GC8-000

Unavailable

2

COVER, AIR GUIDE

19615-GC7-000

Unavailable

3

SHROUD A (NOT AVAILABLE)

19620-GN3-670

Unavailable

4

SHROUD B

19630-GC8-000

Unavailable

5

CAP, FAN COVER

19650-GN3-670

Unavailable

6

SCREW, TAPPING (4X12)

90006-GN3-670

Unavailable

7

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

7

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

8

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

8

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
