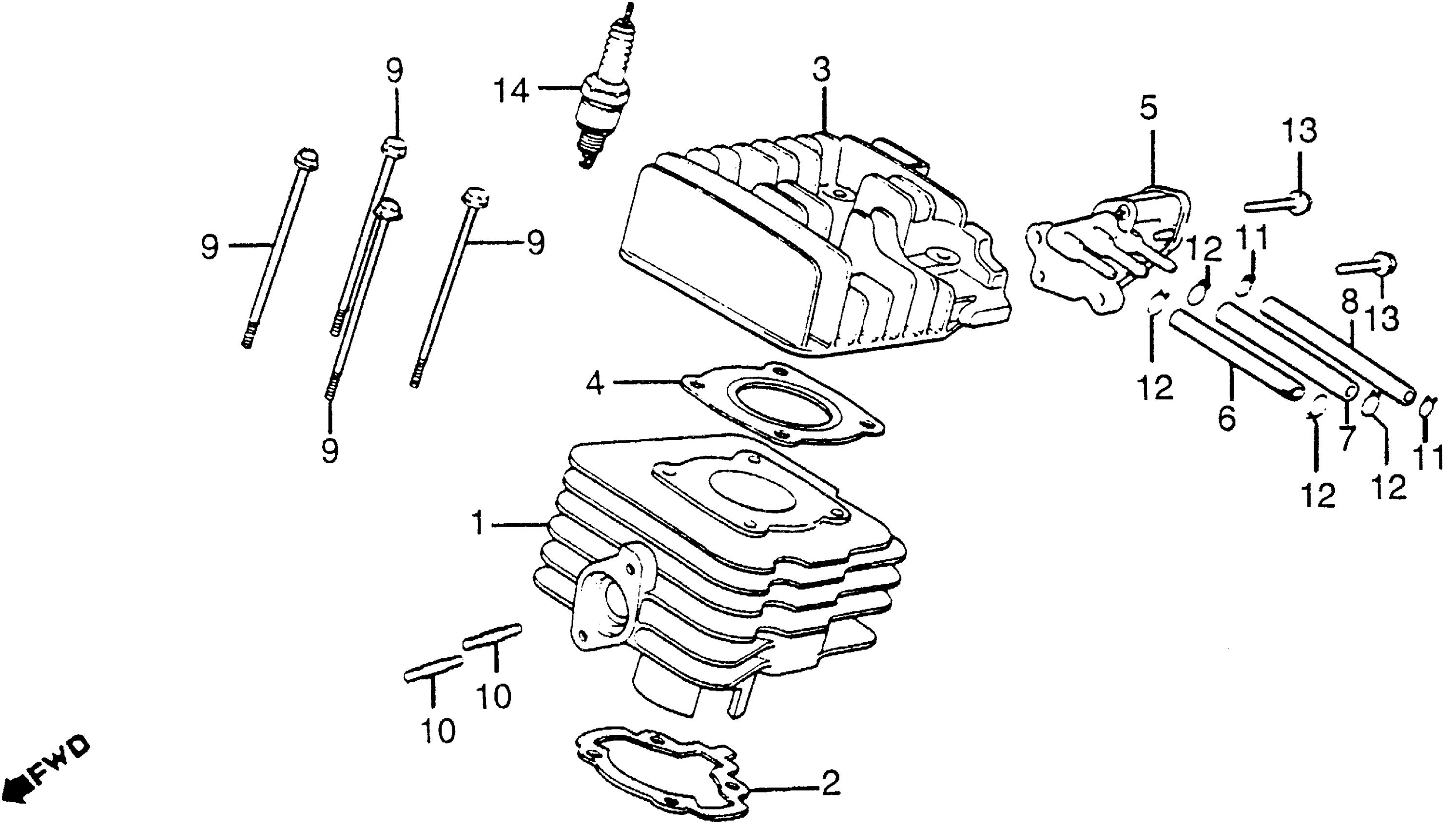

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER A

12101-GC8-010

Unavailable

1

CYLINDER A This part replaces 12102-GC8-010.

12101-GC8-010

Unavailable

2

GASKET, CYLINDER This part replaces 12191-GC8-000.

12191-GZ4-790

$6.59

2

GASKET, CYLINDER This part replaces 12191-GW3-000.

12191-GZ4-790

$6.59

2

GASKET, CYLINDER

12191-GZ4-790

$6.59

3

CYLINDER HEAD

12201-GC8-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-GC8-000.

12251-GZ4-670

Unavailable

4

GASKET, CYLINDER HEAD

12251-GZ4-670

Unavailable

5

BOX ASSY., CONTROL

16600-GA7-700

Unavailable

6

TUBE 1, CONTROL BOX

16603-GC8-000

Unavailable

7

TUBE, CONTROL BOX FUEL

16605-GC7-000

Unavailable

8

TUBE 3, CONTROL VALVE

16606-GC8-000

Unavailable

8

TUBE 3, CONTROL VALVE This part replaces 16606-GN3-670.

16606-GC8-000

Unavailable

9

BOLT, FLANGE (6X10) This part replaces 90001-GC8-000.

95801-06110-00

$2.51

9

BOLT, FLANGE (6X10)

95801-06110-00

$2.51

10

BOLT, STUD (6X28)

90005-GC8-610

Unavailable

11

CLIP, TUBE (B7)

95002-02070

$1.80

12

CLIP, TUBE (B10)

95002-02100

$1.90

13

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

13

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

14

SPARK PLUG (BPR4HSA) (NGK) | (Optional).

98076-54715

$2.62

14

SPARK PLUG (W14FPR-L) (DENSO) | (Optional). This part replaces 98076-54727.

98076-54756

Unavailable

14

SPARK PLUG (W14FPR-L) (DENSO) | (Optional).

98076-54756

Unavailable

14

SPARK PLUG (BPR6HSA) (NGK)

98076-56715

$2.62

14

SPARK PLUG (W20FPR-L) (DENSO)

98076-56725

Unavailable

14

SPARK PLUG (BPR8HSA) (NGK) | (Optional).

98076-58715

$2.39

14

SPARK PLUG (W24FPR-L) (DENSO) | (Optional).

98076-58725

Unavailable
