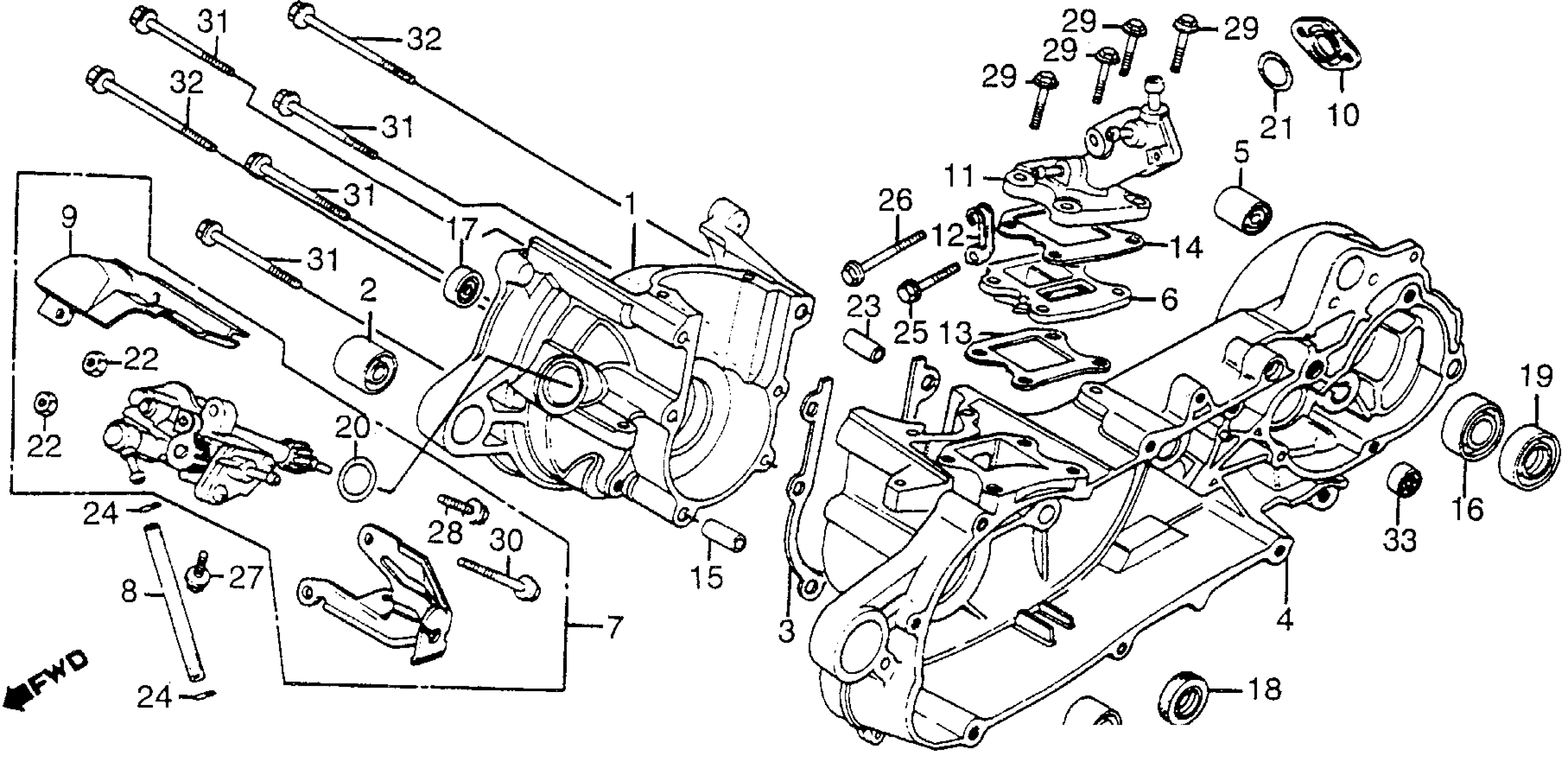

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R. | Use up to Engine SN 5006293

11101-GN3-670

Unavailable

1

CRANKCASE, R. | Use up to Engine SN 5006293

11101-GN3-671

Unavailable

1

CRANKCASE, R.

11101-GN3-671

Unavailable

2

BUSH, ENGINE HANGER RUBBER

11102-187-003

$14.82

3

GASKET, CRANKCASE This part replaces 11191-GC8-010.

11191-GC8-020

Unavailable

3

GASKET, CRANKCASE

11191-GC8-020

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-GC8-306.

11191-GC8-020

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-GN3-670.

11191-GC8-020

Unavailable

4

CRANKCASE, L.

11201-GN3-670

Unavailable

5

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER)

11203-GC7-300

$10.71

6

VALVE, REED This part replaces 14100-GC8-610.

14100-GY1-610

Unavailable

6

VALVE, REED

14100-GY1-610

Unavailable

7

PUMP ASSY., OIL This part replaces 15100-GC8-721.

15100-GC8-722

Unavailable

7

PUMP ASSY., OIL

15100-GC8-722

Unavailable

8

TUBE, OIL PASSAGE This part replaces 15525-GA7-000.

15525-GJ3-600

Unavailable

9

INSULATOR, OIL PUMP

15532-GC8-000

Unavailable

10

INSULATOR, CARBURETOR This part replaces 16211-GC8-000.

16211-GC8-640

Unavailable

10

INSULATOR, CARBURETOR

16211-GC8-640

Unavailable

11

PIPE, INLET

17100-GC8-000

Unavailable

12

STAY, TUBE

17104-GC7-000

Unavailable

13

GASKET, IN. PIPE This part replaces 17111-GC8-003.

17111-GY1-610

Unavailable

13

GASKET, IN. PIPE

17111-GY1-610

Unavailable

14

GASKET, IN. PIPE (UPPER) This part replaces 17112-GC8-000.

17112-GY1-610

Unavailable

14

GASKET, IN. PIPE (UPPER) This part replaces 17112-GC8-306.

17112-GY1-610

Unavailable

14

GASKET, IN. PIPE (UPPER)

17112-GY1-610

Unavailable

15

PIN, DOWEL (8X20.5)

90705-639-000

Unavailable

16

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-003.

42630-GK4-003

$16.69

16

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-004.

42630-GK4-003

$16.69

17

OIL SEAL (20X30X7) This part replaces 91201-GC8-003.

91201-GC8-004

Unavailable

17

OIL SEAL (20X30X7)

91201-GC8-004

Unavailable

18

OIL SEAL,20X31X7 This part replaces 91202-GC8-003.

91202-KBN-922

$5.10

18

OIL SEAL,20X31X7 This part replaces 91202-GC8-004.

91202-KBN-922

$5.10

19

OIL SEAL (24X40X7)

91254-GE8-005

$9.24

20

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

20

O-RING (18.3X2.3) (ARAI) This part replaces 91301-166-000.

91301-147-023

$2.20

21

O-RING (23X2.4)

91304-GC8-003

$2.92

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

PIN A, DOWEL (10X20)

94301-10200

$2.35

24

CLIP, TUBE (B6.5)

95002-02650

$1.49

25

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

25

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

26

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

26

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

27

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

27

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

28

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

28

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

29

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

29

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

30

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

30

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

31

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

31

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

32

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

32

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

33

BEARING, RADIAL BALL (6201)

96100-62013-00

$9.33
