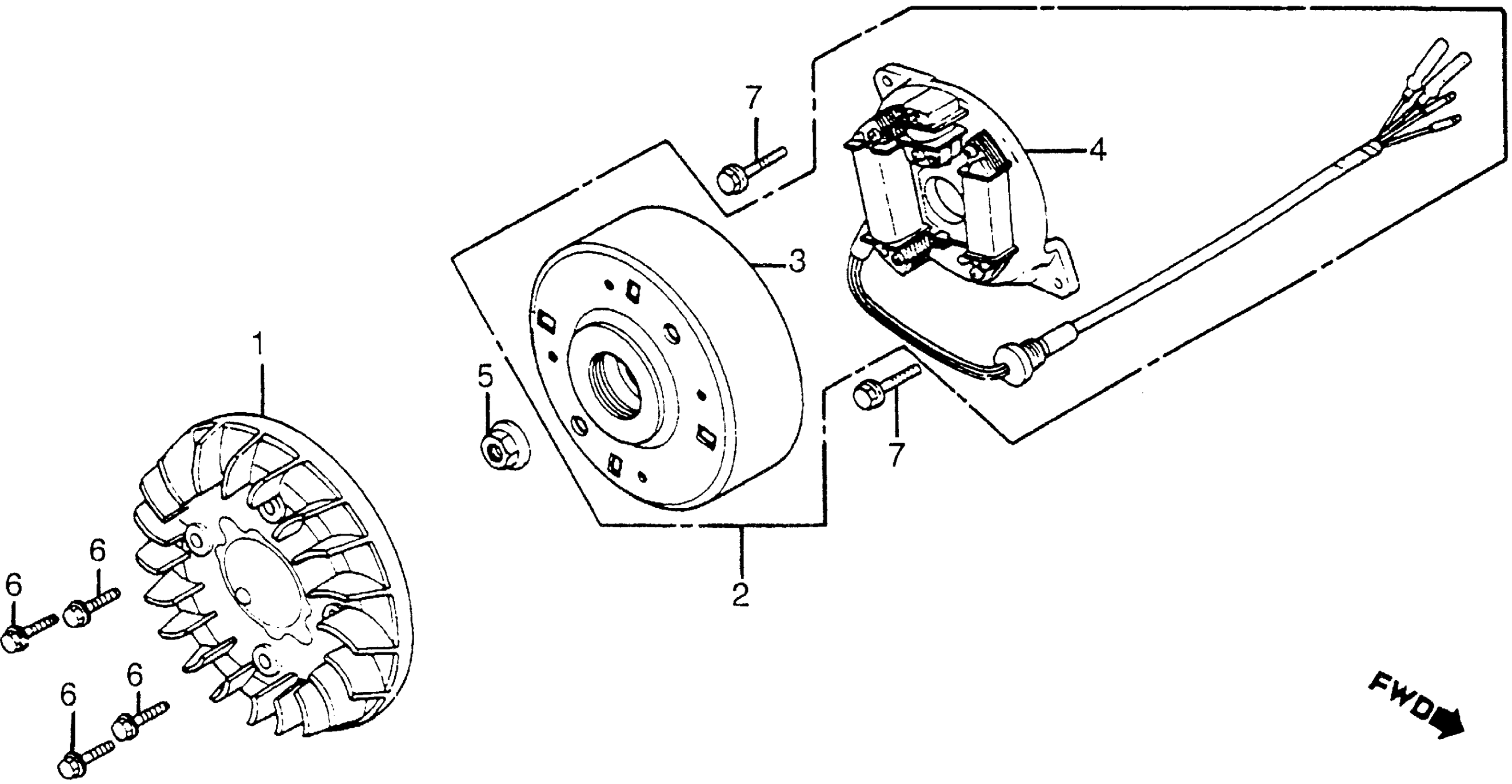

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 ALTERNATOR Diagram

#

Description
Price

1

FAN, COOLING

19510-GC8-000

Unavailable

2

ALTERNATOR ASSY. (MITSUBA)

31100-GN3-671

Unavailable

3

ROTOR

31110-GN3-671

Unavailable

4

STATOR (NOT AVAILABLE)

31120-GC8-721

Unavailable

5

NUT, HEX. (10MM)

90308-357-000

$4.85

6

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

6

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

7

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

7

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
