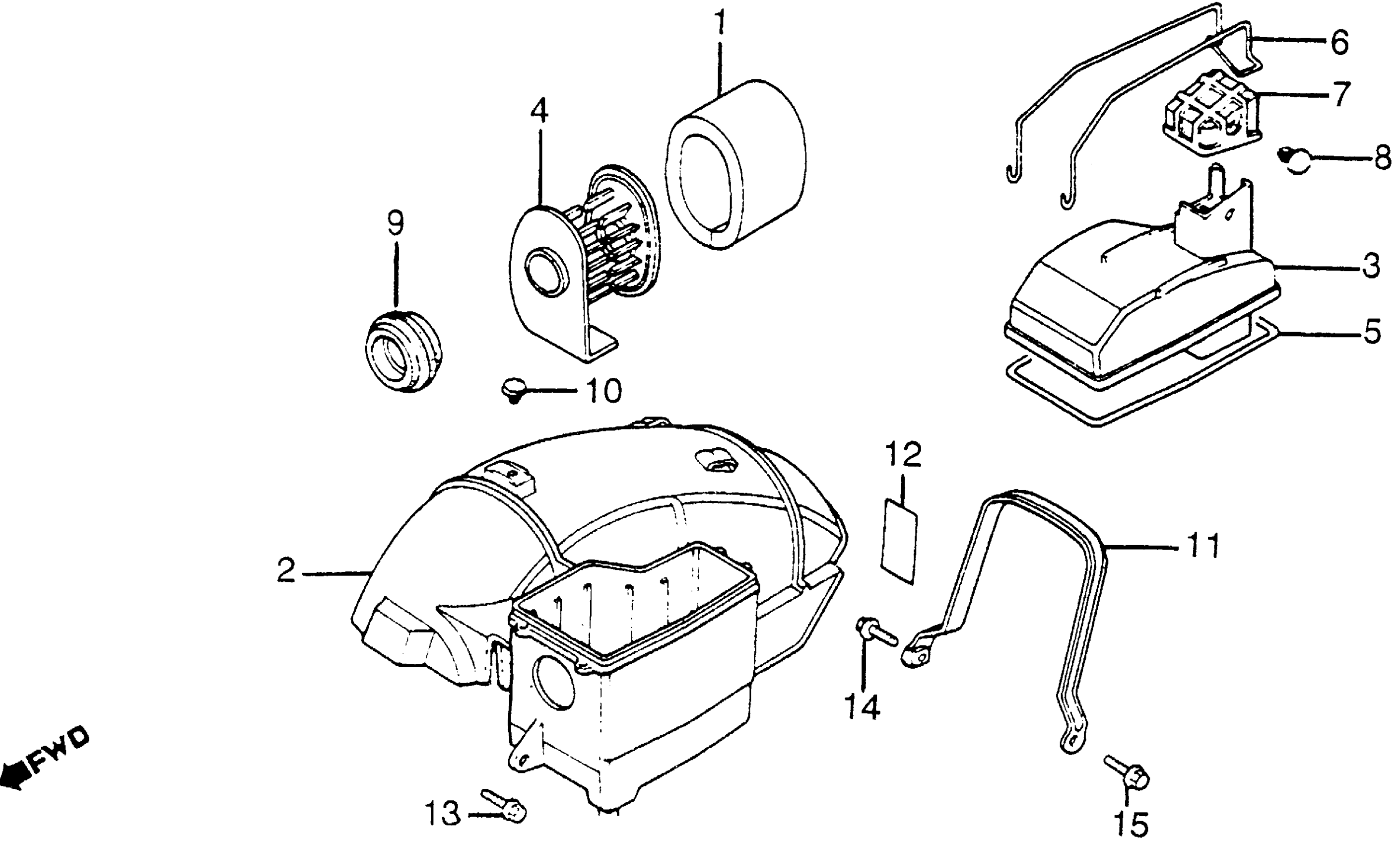

Honda NH80A (85) AERO 80, JPN, VIN# JH2HF010-FK200012 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17205-GC8-000

$5.61

2

HOUSING, AIR CLEANER This part replaces 17206-GC8-000.

17206-GC8-010

Unavailable

2

HOUSING, AIR CLEANER

17206-GC8-010

Unavailable

3

COVER, AIR CLEANER HOUSING

17207-GC8-000

Unavailable

4

HOLDER, AIR CLEANER ELEMENT This part replaces 17208-GC8-010.

17208-GC8-030

Unavailable

4

HOLDER, AIR CLEANER ELEMENT

17208-GC8-030

Unavailable

5

SEAL, AIR CLEANER COVER This part replaces 17212-GC8-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17212-GR1-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17212-KJ9-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17219-HB3-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17219-MA0-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17231-MB1-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17231-MB2-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17231-MB4-000.

17222-MN4-405

$7.31

6

SPRING, AIR CLEANER HOUSING SETTING

17223-GC8-000

Unavailable

7

DUCT, AIR CLEANER HOUSING COVER

17241-GC8-000

Unavailable

8

FASTENER, DUCT

17242-GC8-000

Unavailable

9

TUBE, AIR CLEANER CONNECTING This part replaces 17253-GC8-000.

17253-GC8-020

Unavailable

9

TUBE, AIR CLEANER CONNECTING This part replaces 17253-GC8-010.

17253-GC8-020

Unavailable

9

TUBE, AIR CLEANER CONNECTING

17253-GC8-020

Unavailable

10

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.84

11

STAY, RR. FENDER

80106-GN3-670

Unavailable

12

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

13

BOLT, FLANGE (6MM)

90111-162-000

$2.89

14

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

14

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

15

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

15

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
