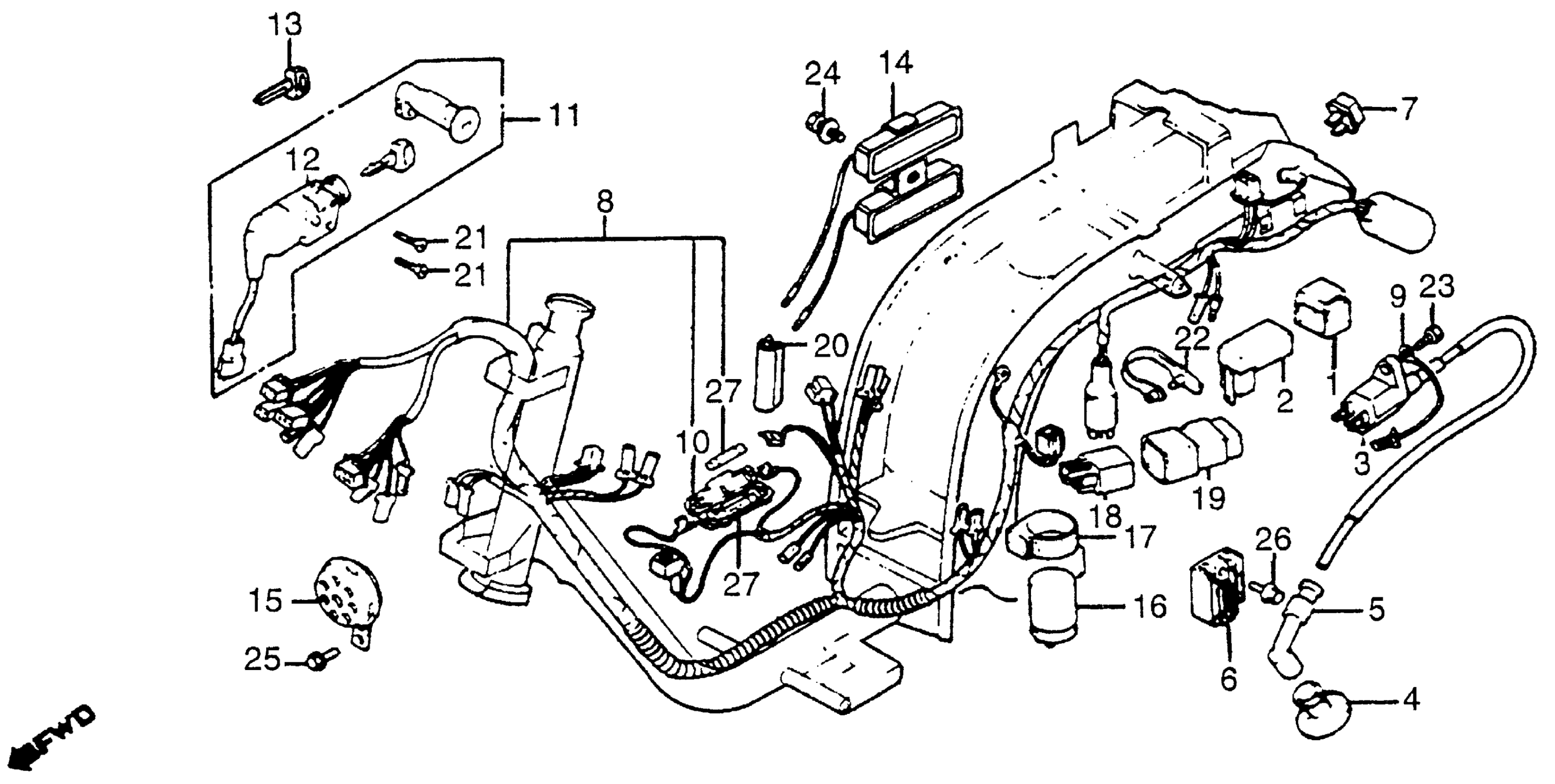

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

SUSPENSION, IGNITION CONTROL MODULE

30406-471-000

$8.03

2

MODULE, IGNITION CONTROL (CDI)

30410-187-008

Unavailable

3

COIL, IGNITION

30510-GR2-405

$68.57

3

COIL, IGNITION This part replaces 30510-KG8-670.

30510-GR2-405

$68.57

4

SEAL, COIL This part replaces 30605-KG8-000.

30605-KG8-010

Unavailable

4

SEAL, COIL

30605-KG8-010

Unavailable

5

CAP SET, NOISE SUPPRESSOR This part replaces 30600-GN0-305.

30600-GN0-315

Unavailable

5

CAP SET, NOISE SUPPRESSOR

30600-GN0-315

Unavailable

5

CAP SET, NOISE SUPPRESSOR This part replaces 30700-GA7-601.

30600-GN0-315

Unavailable

5

CAP SET, NOISE SUPPRESSOR This part replaces 30700-GA7-602.

30600-GN0-315

Unavailable

6

RECTIFIER ASSY., REGULATOR

31600-GC1-701

$144.28

7

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$27.27

7

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$27.27

8

WIRE HARNESS (NOT AVAILABLE)

32100-KG8-670

Unavailable

9

SUB-CABLE A (NOT AVAILABLE)

32101-KG8-670

Unavailable

10

CASE, FUSE CONNECTOR

32121-196-003

Unavailable

11

LOCK SET This part replaces 35010-GC8-701.

35010-GC8-702

Unavailable

11

LOCK SET

35010-GC8-702

Unavailable

12

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-GC8-700.

35100-GC8-701

Unavailable

12

SWITCH ASSY., COMBINATION & LOCK

35100-GC8-701

Unavailable

13

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$8.97

13

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$8.97

13

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$8.97

13

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$8.97

13

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$8.97

13

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$8.97

14

RESISTOR

35400-KG8-670

Unavailable

15

HORN (LOW) This part replaces 38120-MC5-631.

38120-MJ0-682

Unavailable

15

HORN (LOW)

38120-MJ0-682

Unavailable

16

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$59.43

16

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$59.43

16

RELAY, TURN SIGNAL (DENSO)

38301-MG2-008

Unavailable

17

SUSPENSION, TURN SIGNAL RELAY

38306-KJ6-740

$6.93

18

RELAY, STARTER (DENSO)

38501-KG8-003

$64.49

18

RELAY, STARTER (OMRON)

38501-KG8-004

$46.00

19

SUSPENSION, STARTER RELAY (DENSO)

38506-KG8-003

$7.47

19

SUSPENSION, STARTER RELAY (OMRON)

38506-KG8-004

Unavailable

20

TRIM, OPENING

50358-GF0-000

Unavailable

21

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.66

22

STRAP C, CABLE

90668-GA7-003

Unavailable

23

BOLT, HEX. (5X18) This part replaces 92000-05018-0A.

92101-05018-0A

$1.10

23

BOLT, HEX. (5X18)

92101-05018-0A

$1.10

24

BOLT-WASHER (6X12)

93401-06012-00

$1.63

24

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.63

24

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.63

25

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.16

25

BOLT, FLANGE (6X10)

95701-06010-00

$1.16

26

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.78

26

BOLT, FLANGE (6X20)

95701-06020-00

$1.78

27

FUSE A (7A)

98200-10700

$0.85
