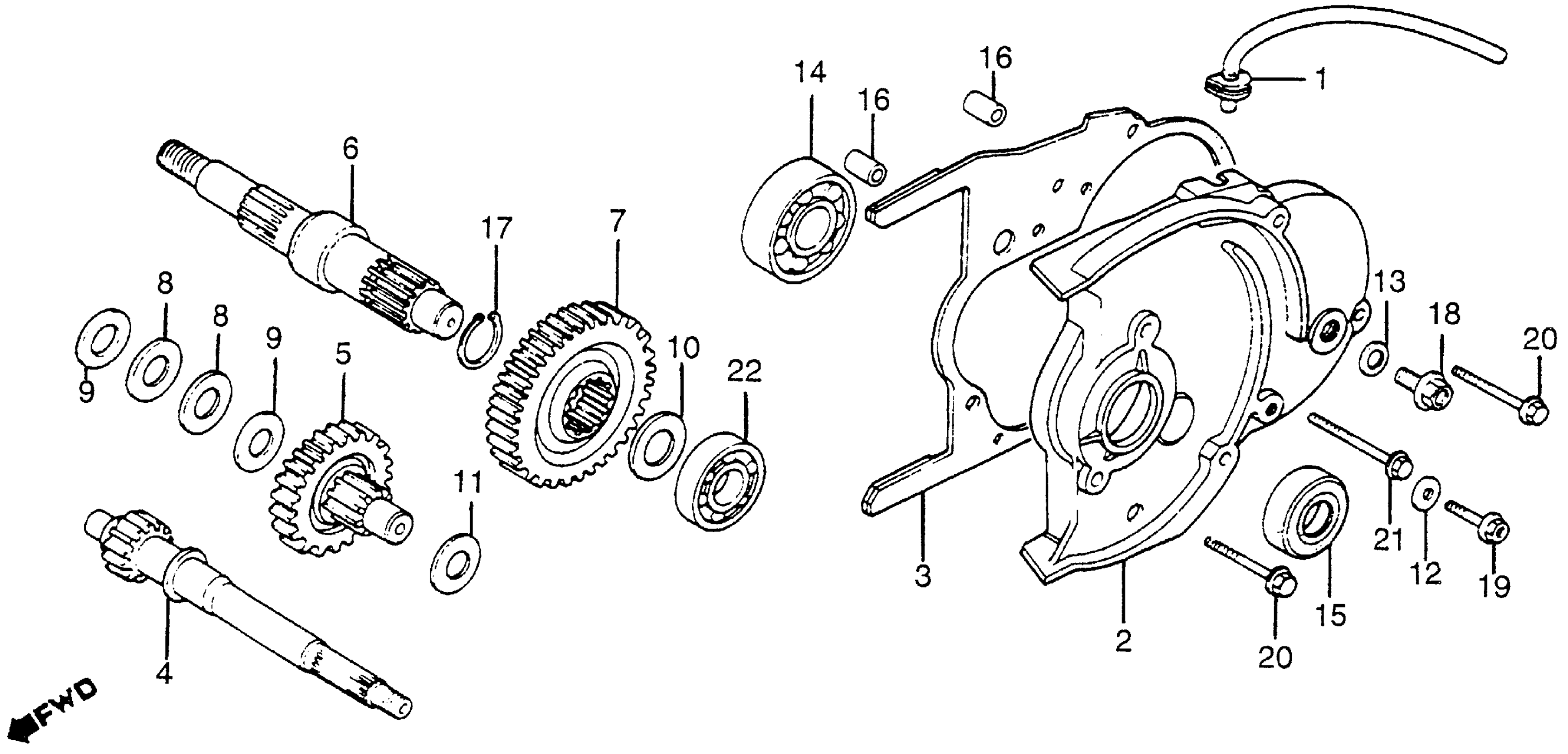

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 TRANSMISSION Diagram

#

Description
Price

1

TUBE, BREATHER

11211-KG8-000

Unavailable

2

COVER, TRANSMISSION (NOT AVAILABLE)

21301-KG8-000

$91.61

3

GASKET, TRANS CVR This part replaces 21395-KG8-000.

21395-KG8-306

Unavailable

3

GASKET, TRANS CVR This part replaces 21395-KG8-010.

21395-KG8-306

Unavailable

4

DRIVESHAFT This part replaces 23411-KG8-000.

23411-KG8-010

Unavailable

4

DRIVESHAFT

23411-KG8-010

Unavailable

5

COUNTERSHAFT (NOT AVAILABLE)

23420-KG8-000

Unavailable

6

SHAFT, FINAL

23431-KG8-000

Unavailable

7

GEAR, FINAL (NOT AVAILABLE)

23432-KG8-000

Unavailable

8

WASHER, SIDE (14MM)

90429-GN2-003

Unavailable

8

WASHER, SIDE (14MM) This part replaces 90429-KG8-003.

90429-GN2-003

Unavailable

9

WASHER, THRUST (14MM)

90451-121-000

$1.87

10

WASHER, THRUST (17MM)

90451-198-000

Unavailable

11

WASHER, THRUST (14MM) This part replaces 90454-KG8-000.

90454-350-000

$3.74

11

WASHER, THRUST (14MM)

90454-350-000

$3.74

12

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

13

WASHER (10.2MM)

90481-001-020

$2.92

14

BEARING, RADIAL BALL (6204)

91001-KE6-831

Unavailable

14

BEARING, RADIAL BALL (6204) This part replaces 91005-KG8-003.

91001-KE6-831

Unavailable

15

OIL SEAL (20X32X6) This part replaces 91201-444-005.

91202-KJ9-003

$4.75

15

OIL SEAL (20X32X6) This part replaces 91202-KJ9-000.

91202-KJ9-003

$4.75

15

OIL SEAL (20X32X6)

91202-KJ9-003

$4.75

16

PIN A, DOWEL (10X14)

94301-10140

$2.28

17

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

18

BOLT, FLANGE (10X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 95700-10012-00.

95701-10012-00

$3.33

18

BOLT, FLANGE (10X12)

95701-10012-00

$3.33

19

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

20

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

20

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

21

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

21

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

22

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
