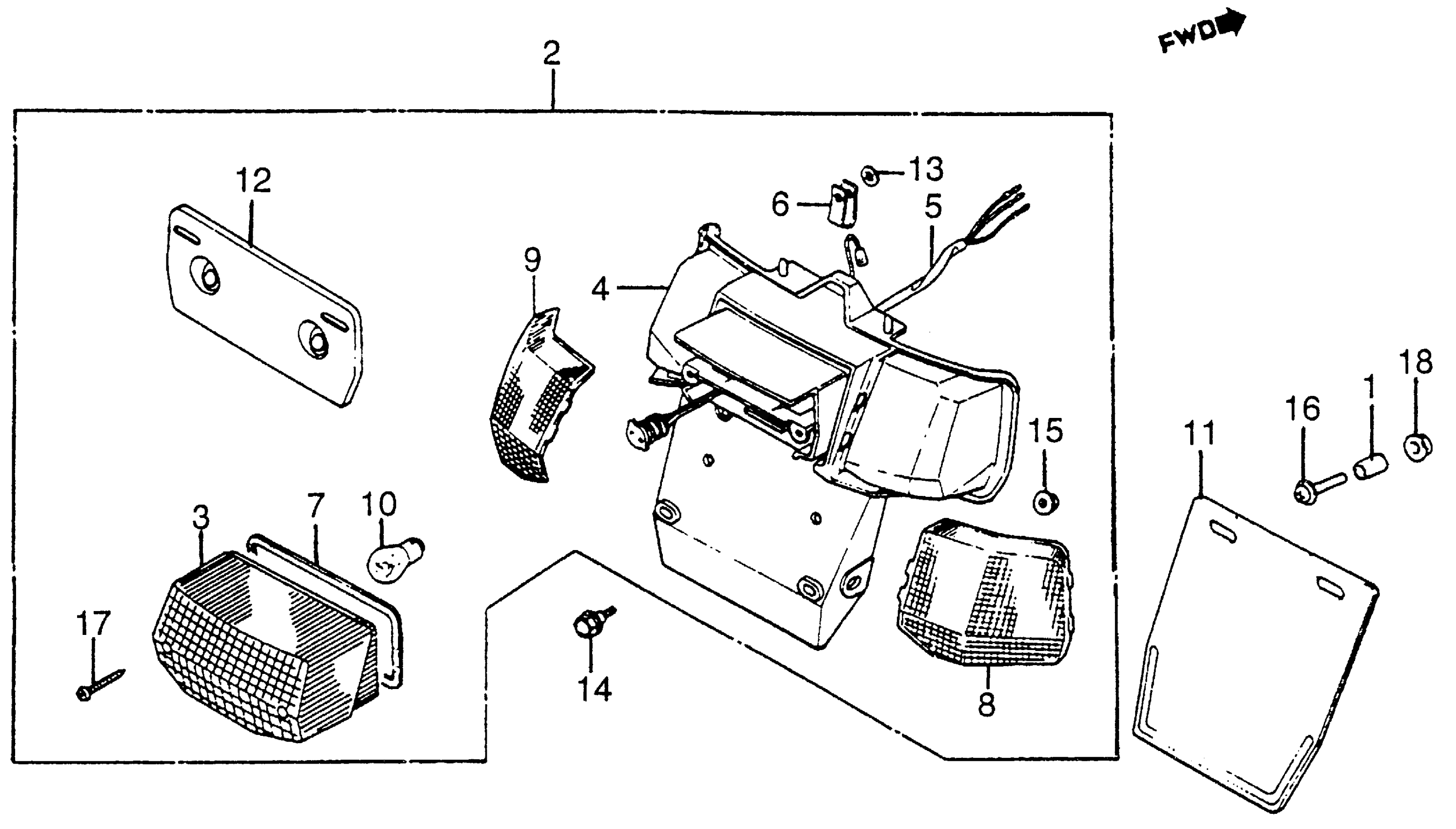

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 TAILLIGHT Diagram

#

Description
Price

1

COLLAR, CONNECTING TUBE SETTING

17221-KA4-300

$2.43

2

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-GC8-672

Unavailable

3

LENS, TAILLIGHT This part replaces 33702-GC8-613.

33702-GC8-614

Unavailable

3

LENS, TAILLIGHT

33702-GC8-614

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33704-GC8-672

Unavailable

5

WIRE, TAILLIGHT

33705-GC8-611

Unavailable

6

CLAMP, RR. COMBINATION WIRE

33706-GC8-003

Unavailable

7

GASKET, TAILLIGHT LENS

33709-GC8-003

Unavailable

8

LENS, R. DUMMY (NOT AVAILABLE)

33711-GC8-671

Unavailable

9

LENS, L. DUMMY

33712-GC8-671

Unavailable

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

11

SPLASH GUARD

80115-GN3-670

Unavailable

11

SPLASH GUARD This part replaces 80115-KG8-670.

80115-GN3-670

Unavailable

12

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-GC8-720

Unavailable

13

NUT, PUSH

90108-GC8-003

Unavailable

14

BOLT, FLANGE (6MM)

90111-162-000

$2.89

15

NUT, FLANGE (6MM)

90302-187-000

$2.39

16

SCREW-WASHER (6X20) (NOT AVAILABLE)

93891-06020-00

Unavailable

17

SCREW, TAPPING (4X30)

93901-24710

Unavailable

18

NUT, FLANGE (6MM)

94050-06000

$1.49
