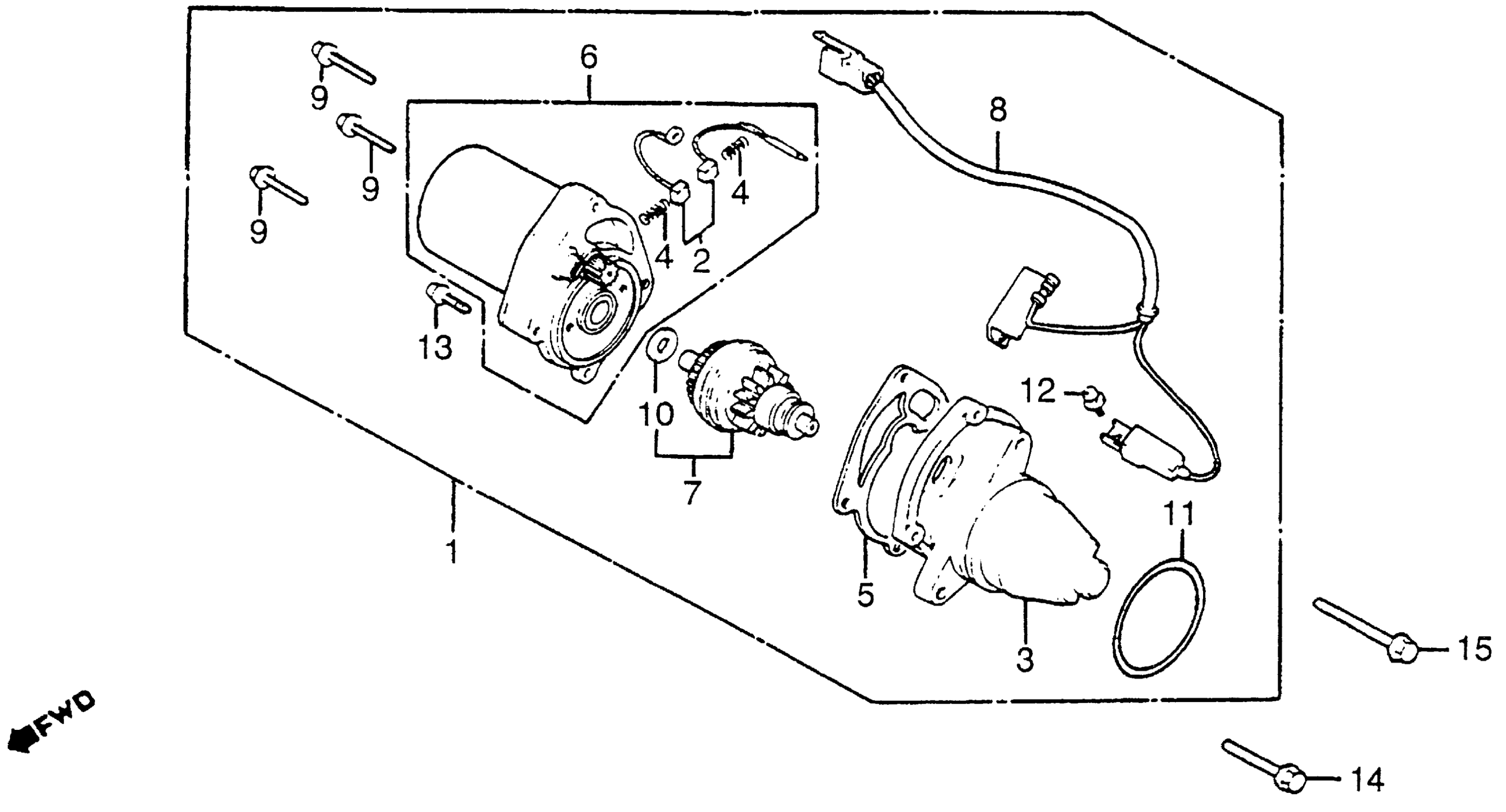

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 STARTER MOTOR Diagram

#

Description
Price

1

MOTOR ASSY., STARTER This part replaces 31200-KG8-004.

31200-KG8-904

Unavailable

1

MOTOR ASSY., STARTER This part replaces 31200-KG8-014.

31200-KG8-904

Unavailable

1

MOTOR ASSY., STARTER This part replaces 31200-KG8-024.

31200-KG8-904

Unavailable

1

MOTOR ASSY., STARTER This part replaces 31200-KG8-903.

31200-KG8-904

Unavailable

1

MOTOR ASSY., STARTER

31200-KG8-904

Unavailable

2

BRUSH SET

31201-187-701

Unavailable

3

COVER, GEAR

31203-KG8-004

Unavailable

4

SPRING, BRUSH

31204-187-701

$4.54

5

GASKET A

31205-GC8-004

Unavailable

6

MOTOR

31208-KG8-004

Unavailable

7

PINION ASSY. This part replaces 31209-KG8-004.

31209-KY4-902

Unavailable

7

PINION ASSY. This part replaces 31209-KY4-901.

31209-KY4-902

Unavailable

7

PINION ASSY.

31209-KY4-902

Unavailable

8

SUB-WIRE HARNESS A

32101-KG8-004

Unavailable

9

SCREW-WASHER (5X30) This part replaces 90115-GB4-700.

93892-05030-08

$2.92

9

SCREW-WASHER (5X30)

93892-05030-08

$2.92

10

WASHER, PINION

90502-187-701

$2.23

11

O-RING

91309-KG8-004

Unavailable

12

SCREW-WASHER (4X6)

93892-04006-08

$1.49

13

SCREW-WASHER (5X16)

93892-05016-08

$1.49

14

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

14

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

15

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

15

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
