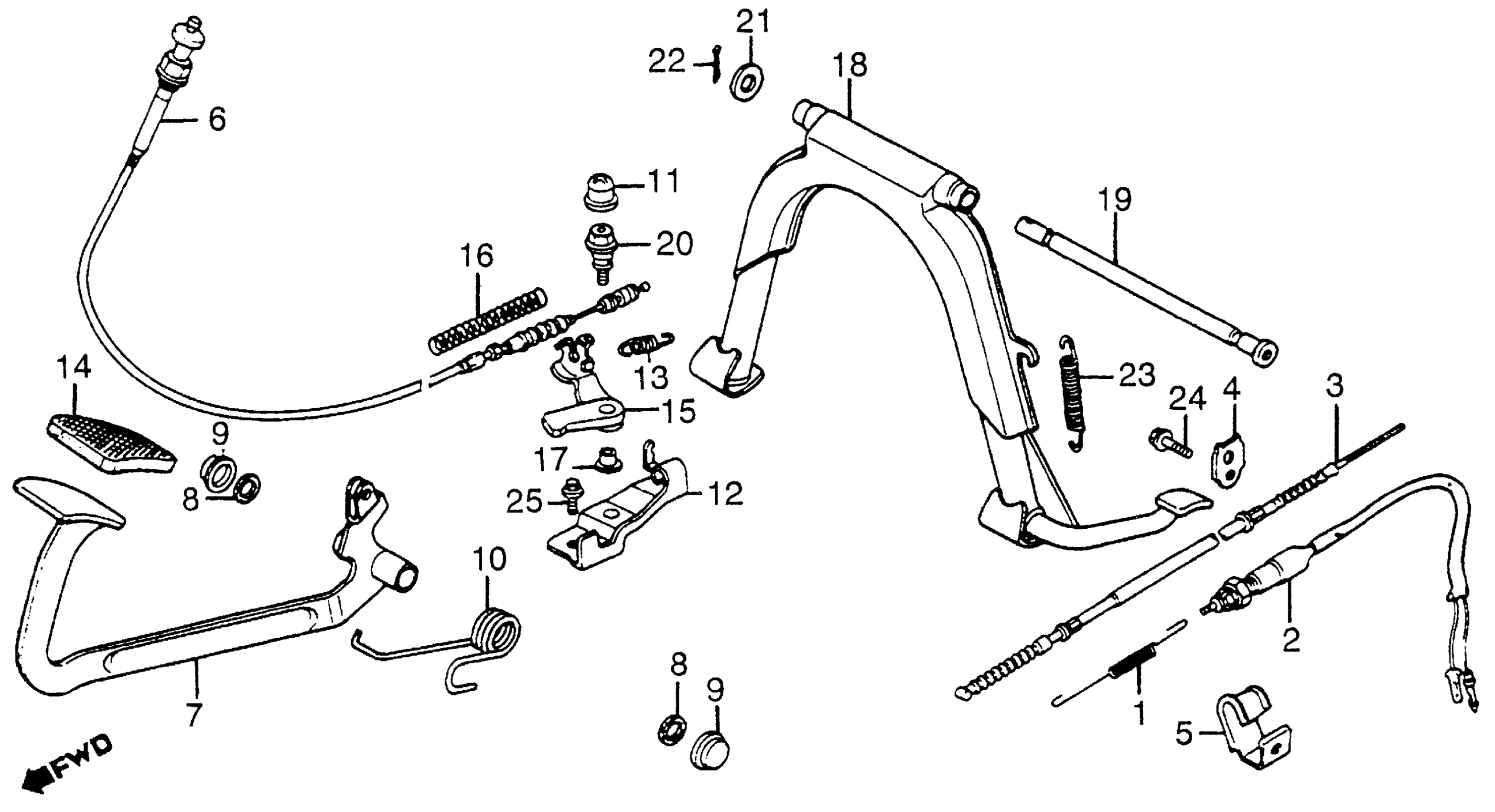

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 STAND + REAR BRAKE PEDAL Diagram

#

Description
Price

1

SPRING, STOP SWITCH

35357-KG8-670

Unavailable

2

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35370-KG8-670

Unavailable

3

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-KG8-670

Unavailable

4

STOPPER, RR. BRAKE CABLE

43451-KG8-000

Unavailable

5

CLAMP, RR. BRAKE CABLE

43452-KG8-670

Unavailable

6

CABLE, BRAKE LOCK

43460-KG8-670

Unavailable

7

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-KG8-670

Unavailable

8

SEAL, RR. BRAKE PIVOT PIPE (NOT AVAILABLE)

46501-KG8-670

Unavailable

9

CAP, RR. BRAKE PIVOT PIPE

46502-KG8-670

Unavailable

10

SPRING, BRAKE PEDAL RETURN (NOT AVAILABLE)

46507-KG8-670

Unavailable

11

COVER, DUST

46508-KG8-670

Unavailable

12

PLATE, BRAKE LOCK

46508-KJ9-670

Unavailable

13

SPRING, BRAKE LOCK CABLE RETURN (B)

46510-KJ9-000

$4.05

14

COVER, PEDAL

46545-SA7-000

Unavailable

14

COVER, PEDAL

46545-538-010

$5.73

15

PLATE, PEDAL STOPPER

46625-KJ9-000

Unavailable

16

SPRING, BRAKE LOCK CABLE RETURN

46627-KG8-670

Unavailable

17

BUSH, STOPPER PLATE

46633-KJ9-000

Unavailable

18

STAND, MAIN (NOT AVAILABLE)

50500-KG8-000

Unavailable

19

SHAFT, MAIN STAND

50503-KG8-000

Unavailable

20

BOLT, FLANGE (6X9)

90132-KJ9-000

Unavailable

21

WASHER, PLAIN (12MM)

94101-12000

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

22

PIN, COTTER (2.0X22)

94201-20220

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

22

PIN, COTTER (2.0X35)

94201-20350

$1.49

22

PIN, COTTER (2.0X22)

94201-29220

$1.49

23

SPRING D, MAIN STAND

95014-71402

$2.48

24

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

24

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

25

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

25

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
