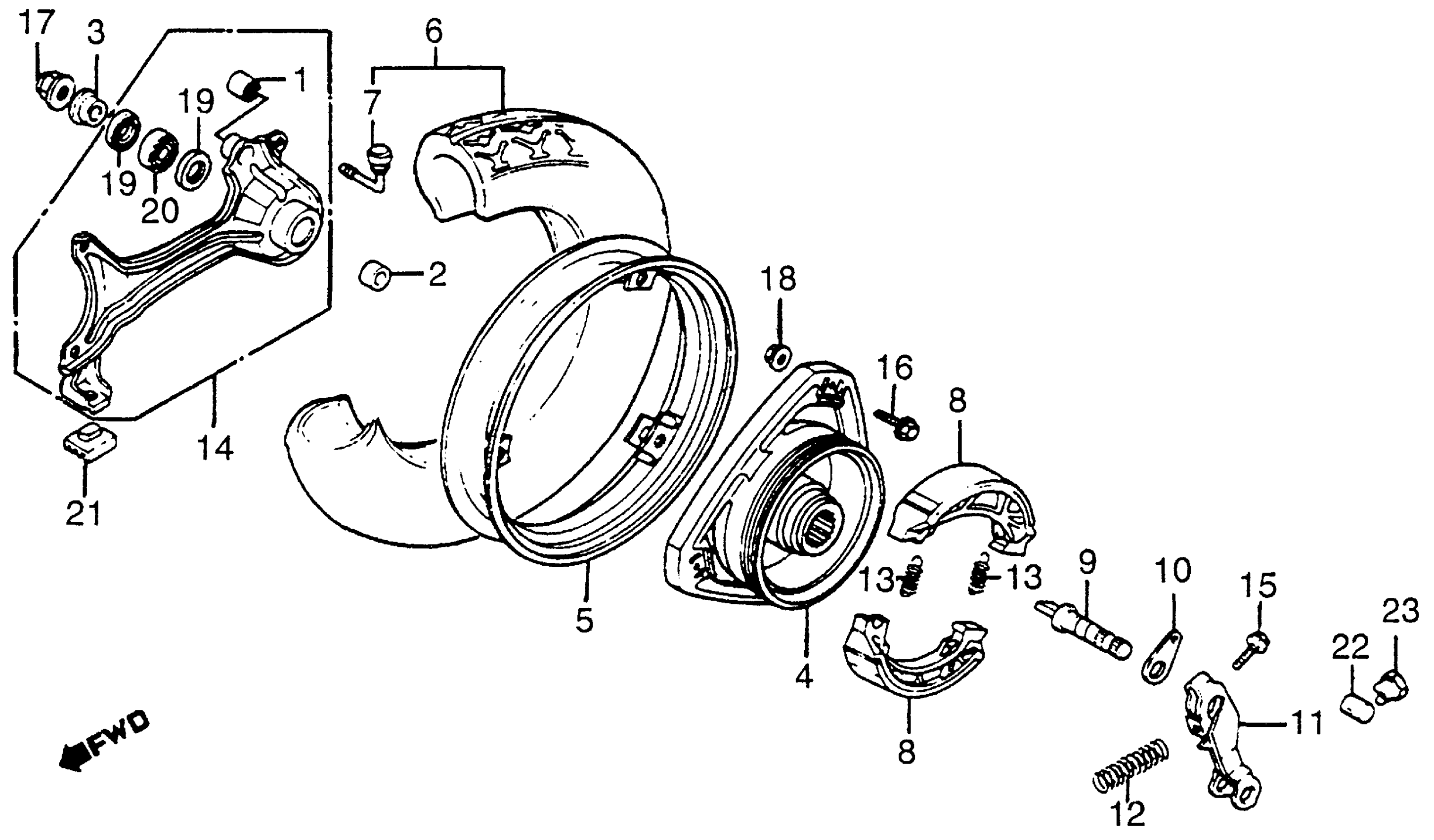

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 REAR WHEEL Diagram

#

Description
Price

1

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER)

11203-GC7-300

$10.71

2

COLLAR, RR. AXLE

42311-187-920

Unavailable

3

COLLAR, RR. AXLE SIDE

42312-KG8-000

Unavailable

4

HUB, RR. WHEEL (NOT AVAILABLE) This part replaces 42601-KG8-670.

42601-KG8-671

Unavailable

4

HUB, RR. WHEEL (NOT AVAILABLE)

42601-KG8-671

Unavailable

5

RIM, WHEEL (NOT AVAILABLE) This part replaces 42701-KG8-670.

42701-KN7-670

Unavailable

5

RIM, WHEEL (NOT AVAILABLE) This part replaces 42701-KG8-671.

42701-KN7-670

Unavailable

5

RIM, WHEEL (NOT AVAILABLE) This part replaces 42701-KG8-672.

42701-KN7-670

Unavailable

6

TIRE ASSY., RR. (3.50-10) (4PR ML8A) (BS) (NOT AVAILABLE)

42710-KG8-671

Unavailable

6

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP) This part replaces 42710-KG8-672.

42711-KJ9-758

Unavailable

6

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP) This part replaces 42710-KG8-673.

42711-KJ9-758

Unavailable

6

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP) This part replaces 42710-KJ9-752.

42711-KJ9-758

Unavailable

6

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP) This part replaces 42711-KJ9-754.

42711-KJ9-758

Unavailable

6

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP) This part replaces 42711-KJ9-756.

42711-KJ9-758

Unavailable

6

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP)

42711-KJ9-758

Unavailable

7

VALVE, RIM (BS)

42753-KJ9-003

$17.49

7

VALVE, RIM (DUNLOP)

42753-KJ9-004

$16.69

7

VALVE, RIM (INOUE)

42753-KJ9-005

$16.50

8

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-003.

06450-178-932

$24.89

8

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-005.

06450-178-932

$24.89

8

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-006.

06450-178-932

$24.89

9

CAM, RR. BRAKE

43141-400-010

$23.52

10

INDICATOR, RR. BRAKE

43145-KG8-000

Unavailable

11

ARM, RR. BRAKE

43410-KG8-000

Unavailable

12

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.74

13

SPRING, BRAKE SHOE

45133-028-000

$2.03

14

SWINGARM ASSY., RR. (NOT AVAILABLE)

52000-KG8-000

Unavailable

15

BOLT, FLANGE (6X30) This part replaces 90007-PA9-000.

95701-06030-08

$2.06

15

BOLT, FLANGE (6X30)

95701-06030-08

$2.06

16

BOLT, FLANGE (8X32)

90105-GM9-740

$4.49

16

BOLT, FLANGE (8X32) This part replaces 90122-GB2-720.

90105-GM9-740

$4.49

16

BOLT, FLANGE (8X32) This part replaces 90122-GB2-721.

90105-GM9-740

$4.49

17

NUT, U (14MM)

90305-GE8-003

$3.86

18

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

18

NUT, FLANGE (8MM)

90309-428-731

$3.35

19

DUST SEAL (22X32X3)

90755-KG8-003

Unavailable

20

BEARING, RADIAL BALL (6202U) (NACHI) This part replaces 90912-KG8-003.

90912-KG8-004

Unavailable

20

BEARING, RADIAL BALL (6202U) (NACHI)

90912-KG8-004

Unavailable

21

RUBBER A, STAND STOPPER

95011-61000

$1.49

22

JOINT, BRAKE ARM

95015-32001

$1.49

23

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83
