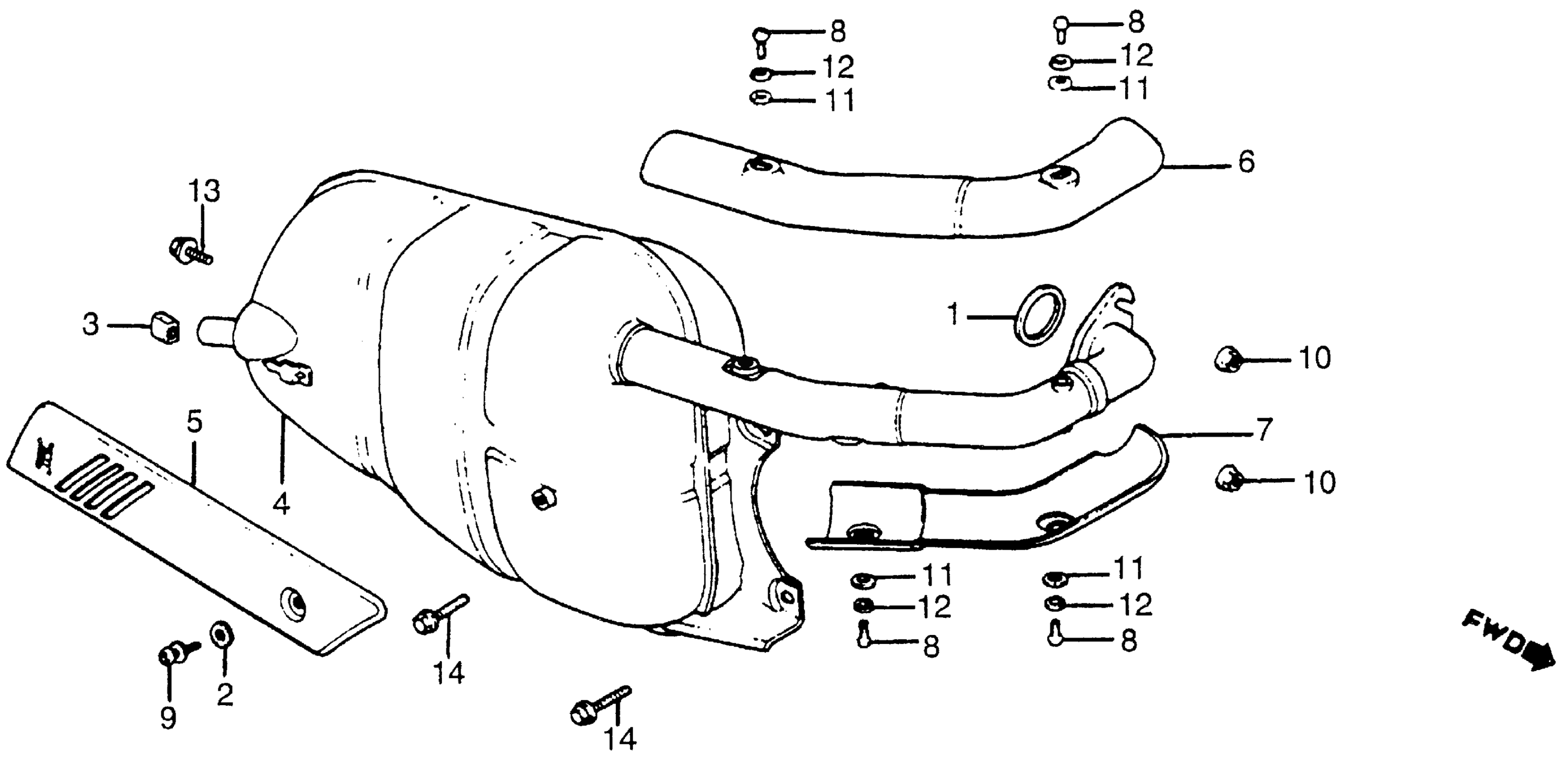

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-166-003.

18292-KR1-680

$6.92

1

GASKET, EX. PIPE

18292-KR1-680

$6.92

2

GASKET, PROTECTOR

18292-167-890

$1.88

2

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

3

RUBBER, PROTECTOR GASKET This part replaces 18293-GE8-000.

18293-147-000

$4.04

3

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

4

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-KG8-670.

18300-KG8-671

Unavailable

4

MUFFLER, EX. (NOT AVAILABLE)

18300-KG8-671

Unavailable

5

PROTECTOR, MUFFLER

18318-GE8-000

Unavailable

6

PROTECTOR, EX. PIPE

18325-KG8-003

Unavailable

7

PROTECTOR B, EX. PIPE

18326-KG8-003

Unavailable

8

SCREW, PAN (6X8)

93500-06008-0G

Unavailable

8

SCREW, PAN (6X8) This part replaces 93500-06008-1G.

93500-06008-0G

Unavailable

9

SCREW-WASHER (6X8)

93891-06008-07

Unavailable

10

NUT, FLANGE (6MM)

94050-06000

$1.49

11

WASHER, PLAIN (6MM)

94101-06700

$1.49

12

WASHER, SPRING (6MM)

94111-06700

$1.49

13

BOLT, FLANGE (8X16) This part replaces 95700-08016-07.

95701-08016-07

$1.80

13

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

14

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

14

BOLT, FLANGE (8X25) This part replaces 95725-08025-00.

95701-08025-00

$1.79
