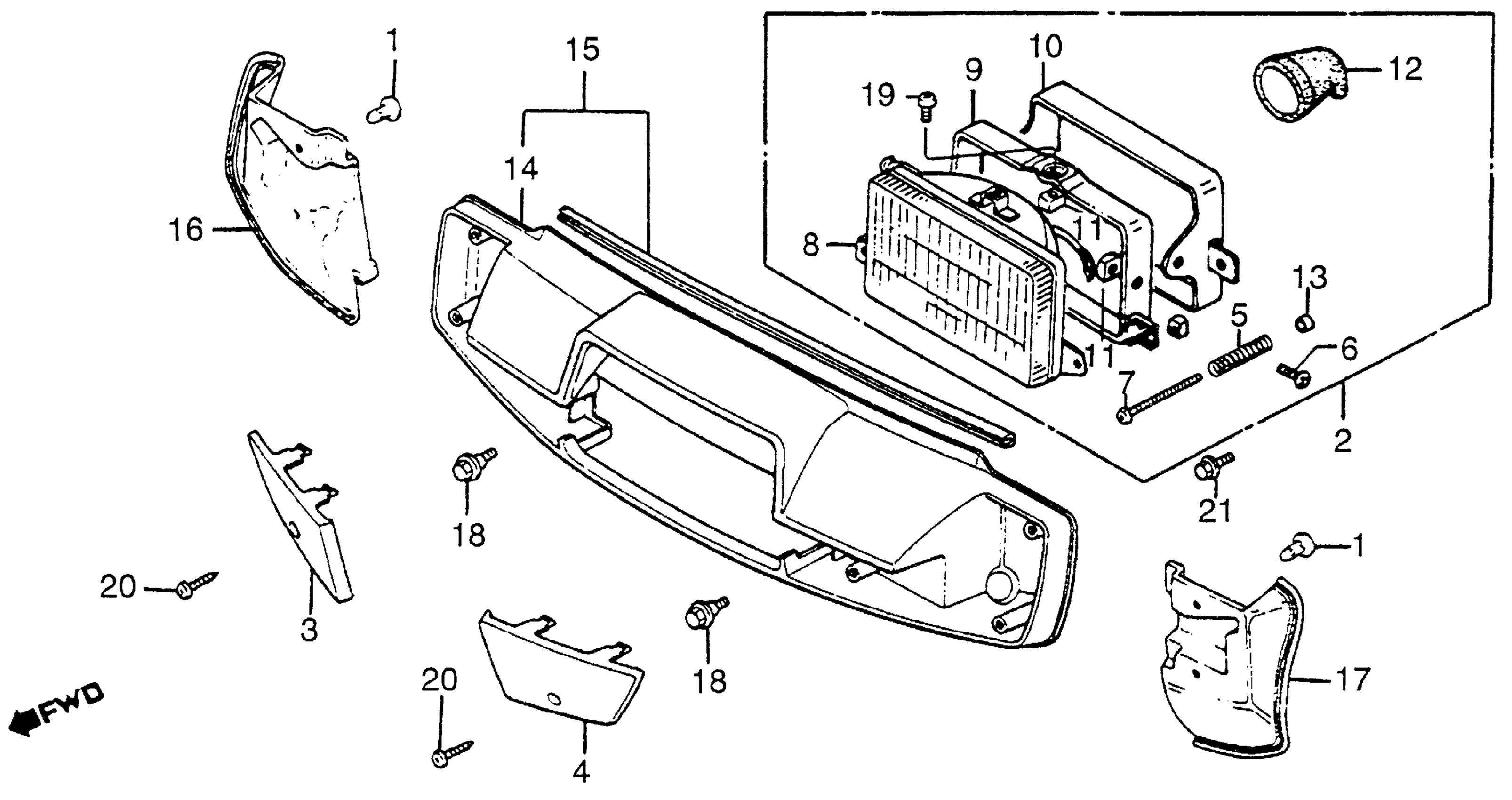

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 HEADLIGHT + FRONT HANDLEBARCOVER Diagram

CLIP, CARBURETOR COVER SETTING

17222-GA6-003

Unavailable

HEADLIGHT ASSY.

33100-KG8-671

Unavailable

COVER, R. HEADLIGHT *R4C* (CANDY RUBY RED)

33105-KG8-670ZA

Unavailable

COVER, R. HEADLIGHT *YR118MS* (LIGHT COPPER METALLIC-S) (NOT AVAILABLE)

33105-KG8-670ZB

Unavailable

COVER, L. HEADLIGHT *R4C* (CANDY RUBY RED)

33106-KG8-670ZA

Unavailable

COVER, L. HEADLIGHT *YR118MS* (LIGHT COPPER METALLIC-S)

33106-KG8-670ZB

Unavailable

SPRING, BEAM ADJUSTING

33107-GE8-671

$3.33

SCREW, SPECIAL

33113-GE8-671

Unavailable

SCREW, BEAM ADJUSTING

33114-GC8-003

Unavailable

HEADLIGHT UNIT (NA USE ALT:33100-KG8-671)

33120-KG8-670

Unavailable

RING A, MOUNTING This part replaces 33121-KG8-670.

33121-KG8-671

Unavailable

RING A, MOUNTING

33121-KG8-671

Unavailable

RING B, MOUNTING

33122-KG8-670

Unavailable

NUT, UNIT HOLDER

33128-471-003

$1.62

COVER, RUBBER

33130-111-671

Unavailable

COVER, SCREW

33136-426-830

$1.89

COVER, FR. HANDLEBAR *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

53204-KG8-670ZA

Unavailable

COVER, FR. HANDLEBAR *YR118MS* (LIGHT COPPER METALLIC-S) (NOT AVAILABLE)

53204-KG8-670ZB

Unavailable

COVER SET, FR. HANDLEBAR *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

53205-KG8-670ZA

Unavailable

COVER SET, FR. HANDLEBAR *YR118MS* (LIGHT COPPER METALLIC-S) (NOT AVAILABLE)

53205-KG8-670ZB

Unavailable

LINING, R. HANDLEBAR COVER

53208-KG8-610

$28.85

LINING, L. HANDLEBAR COVER

53209-KG8-610

$28.30

BOLT, FLANGE (6MM)

90111-162-000

$2.89

SCREW, PAN (5X10)

93500-05010-0A

$1.49

SCREW, TAPPING (4X20)

93903-24580

$1.49

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
