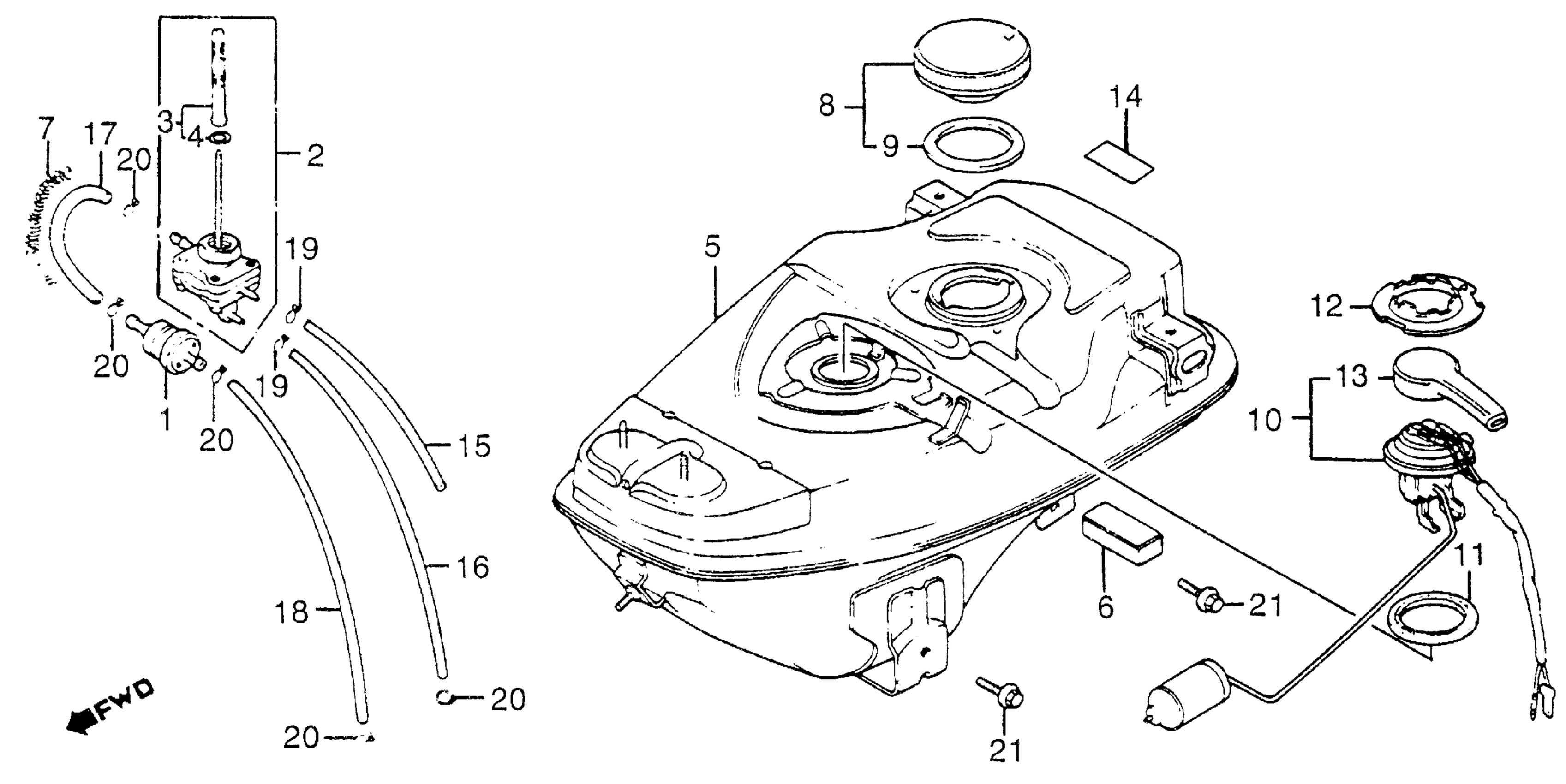

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 FUEL TANK Diagram

#

Description
Price

1

FILTER, FUEL

16910-GB2-900

Unavailable

1

FILTER, FUEL This part replaces 16910-GC8-005.

16910-GB2-900

Unavailable

2

PETCOCK, AUTOMATIC This part replaces 16950-KG8-003.

16950-KG8-901

Unavailable

2

PETCOCK, AUTOMATIC This part replaces 16950-KG8-900.

16950-KG8-901

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-GA6-671

Unavailable

4

O-RING (9X1.3)

16958-397-771

$5.30

5

TANK, FUEL (NOT AVAILABLE)

17500-KG8-000

Unavailable

6

CUSHION, FUEL TANK

17504-KG8-000

Unavailable

7

SPRING, FUEL TUBE COVER

17532-GC8-000

Unavailable

8

CAP, FUEL FILLER | Use up to Frame SN ES015033 This part replaces 17620-GE7-003.

17620-GE7-033

Unavailable

8

CAP, FUEL FILLER | Use up to Frame SN ES015033 This part replaces 17620-GE7-013.

17620-GE7-033

Unavailable

8

CAP, FUEL FILLER This part replaces 17620-GE7-013.

17620-GE7-033

Unavailable

8

CAP, FUEL FILLER | Use up to Frame SN ES015033 This part replaces 17620-GE7-023.

17620-GE7-033

Unavailable

8

CAP, FUEL FILLER This part replaces 17620-GE7-023.

17620-GE7-033

Unavailable

9

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

9

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

10

FUEL UNIT

37800-KG8-000

Unavailable

11

GASKET, BASE

37801-GA7-700

$5.17

12

RETAINER, FUEL UNIT

37802-GA7-700

$5.17

12

RETAINER, FUEL UNIT

37802-GK8-670

Unavailable

13

COVER, FUEL UNIT

37805-KG8-000

Unavailable

14

LABEL, FUEL

87512-GC8-670

Unavailable

15

BULK HOSE, FUEL (3.5X3000) (3.5X110)

95001-35003-60M

$20.85

16

BULK HOSE, FUEL (3.5X3000) (3.5X200)

95001-35003-60M

$20.85

17

BULK HOSE, FUEL (4.5X3000) (4.5X85)

95001-45003-60M

$36.67

17

BULK HOSE, FUEL (4.5X3000) (4.5X100)

95001-45003-60M

$36.67

18

BULK HOSE, FUEL (4.5X3000) (4.5X270)

95001-45003-60M

$36.67

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

CLIP, TUBE (B8)

95002-02080

$1.80

21

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

21

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
