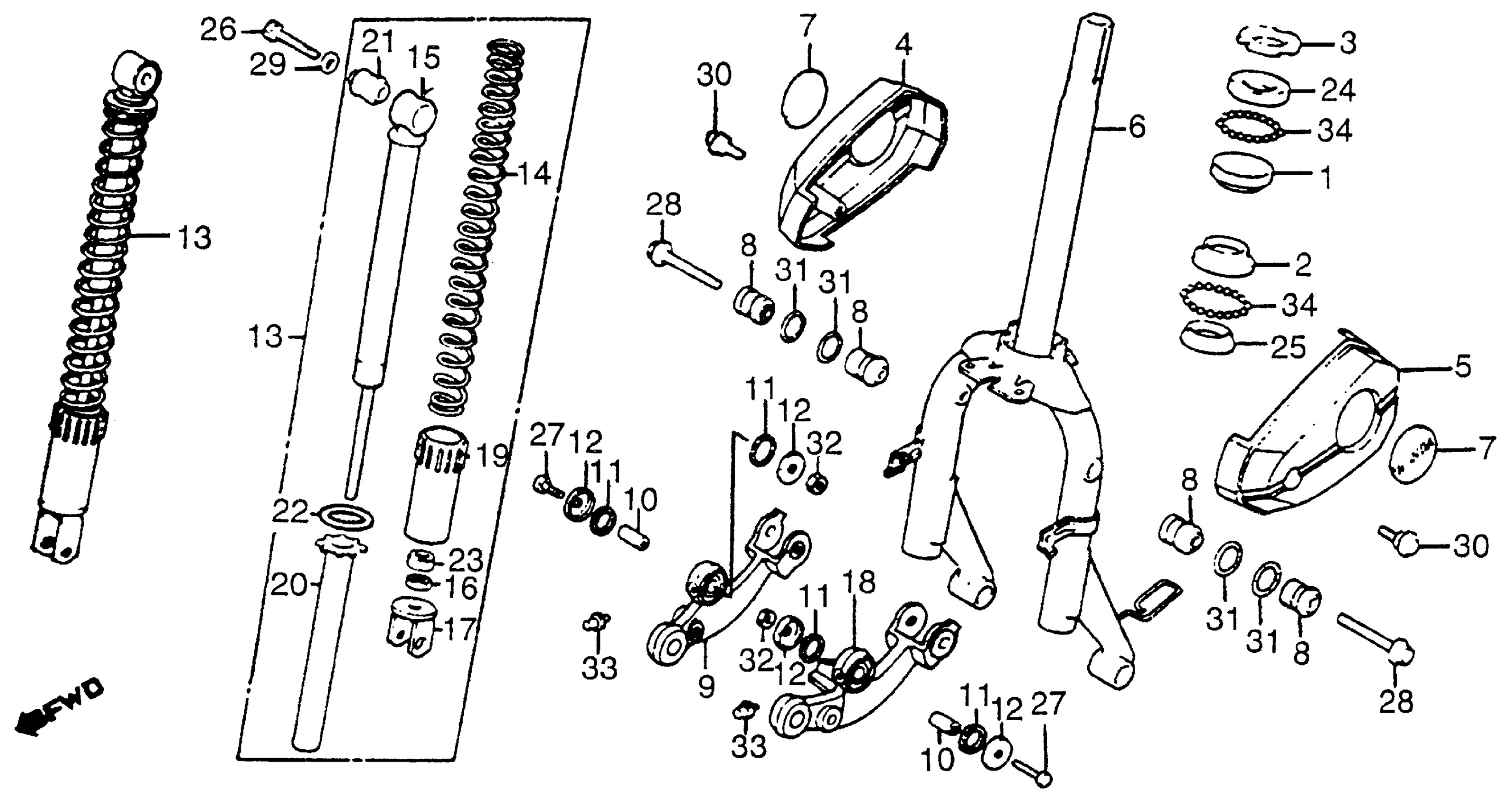

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 FRONT FORK Diagram

#

Description
Price

1

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

1

RACE, STEERING BALL (UPPER) (MITSUBOSHI)

50301-147-003

$12.16

2

RACE, STEERING BALL (LOWER)

50305-GC8-003

$11.64

3

NUT, STEERING STEM LOCK (MITSUBOSHI)

50306-147-003

Unavailable

4

COVER, R. PIVOT ARM

51103-KG8-000

Unavailable

5

COVER, L. PIVOT ARM

51104-KG8-000

Unavailable

6

FORK, FR. *NH1* This part replaces 51105-KG8-000ZA.

51105-KG8-610ZA

Unavailable

7

LABEL, PIVOT ARM COVER

51108-KG8-000

Unavailable

8

BUSH, PIVOT ARM

51314-GG2-003

Unavailable

9

SUB-ARM ASSY., R.

51315-KJ9-000

Unavailable

10

COLLAR, FR. FORK DISTANCE (LOWER)

51334-041-000

Unavailable

11

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

12

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

13

SHOCK ABSORBER, FR. This part replaces 51400-KG8-671.

51400-KJ9-003

Unavailable

14

SPRING, FR. FORK

51401-KJ9-003

Unavailable

15

DAMPER, FR. This part replaces 51410-KG8-671.

51410-KJ9-003

Unavailable

15

DAMPER, FR. This part replaces 51410-KG8-672.

51410-KJ9-003

Unavailable

15

DAMPER, FR.

51410-KJ9-003

Unavailable

16

NUT, LOCK (8MM)

51413-GB4-003

Unavailable

17

METAL (LOWER)

51414-KG8-003

Unavailable

18

SUB-ARM ASSY., L.

51415-KJ9-000

Unavailable

19

CASE, FR. FORK (LOWER)

51421-KG8-003

Unavailable

20

GUIDE, FR. FORK SPRING

51458-GG2-003

Unavailable

21

BUSH, FR. FORK

51489-GC8-003

Unavailable

22

SEAT, SPRING (UPPER)

51515-196-003

Unavailable

23

RUBBER, STOPPER (NOT AVAILABLE)

51517-KG8-671

Unavailable

24

RACE, STEERING TOP CONE

53211-GC8-003

$14.68

25

RACE, STEERING CONE (LOWER) (MITSUBOSHI)

53212-GC8-003

$7.95

26

BOLT, HEX. (8X32)

90121-GC8-000

$4.93

27

BOLT, FR. FORK (LOWER)

90149-041-010

Unavailable

28

BOLT, FLANGE (8X43) This part replaces 90155-GC8-000.

90155-KG8-000

Unavailable

28

BOLT, FLANGE (8X43)

90155-KG8-000

Unavailable

29

WASHER, SPECIAL (8MM)

90443-GC8-000

$2.66

30

BOLT, FLANGE (5X9)

90508-GC8-000

$4.35

31

O-RING (16.8X1.9)

91347-PY3-000

$2.68

31

O-RING (16.8X1.9) This part replaces 91351-GA7-000.

91347-PY3-000

$2.68

32

NUT, HEX. (8MM)

94002-08000-0S

$1.49

33

FITTING, GREASE (A.45)

96201-30001

$1.49

34

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
