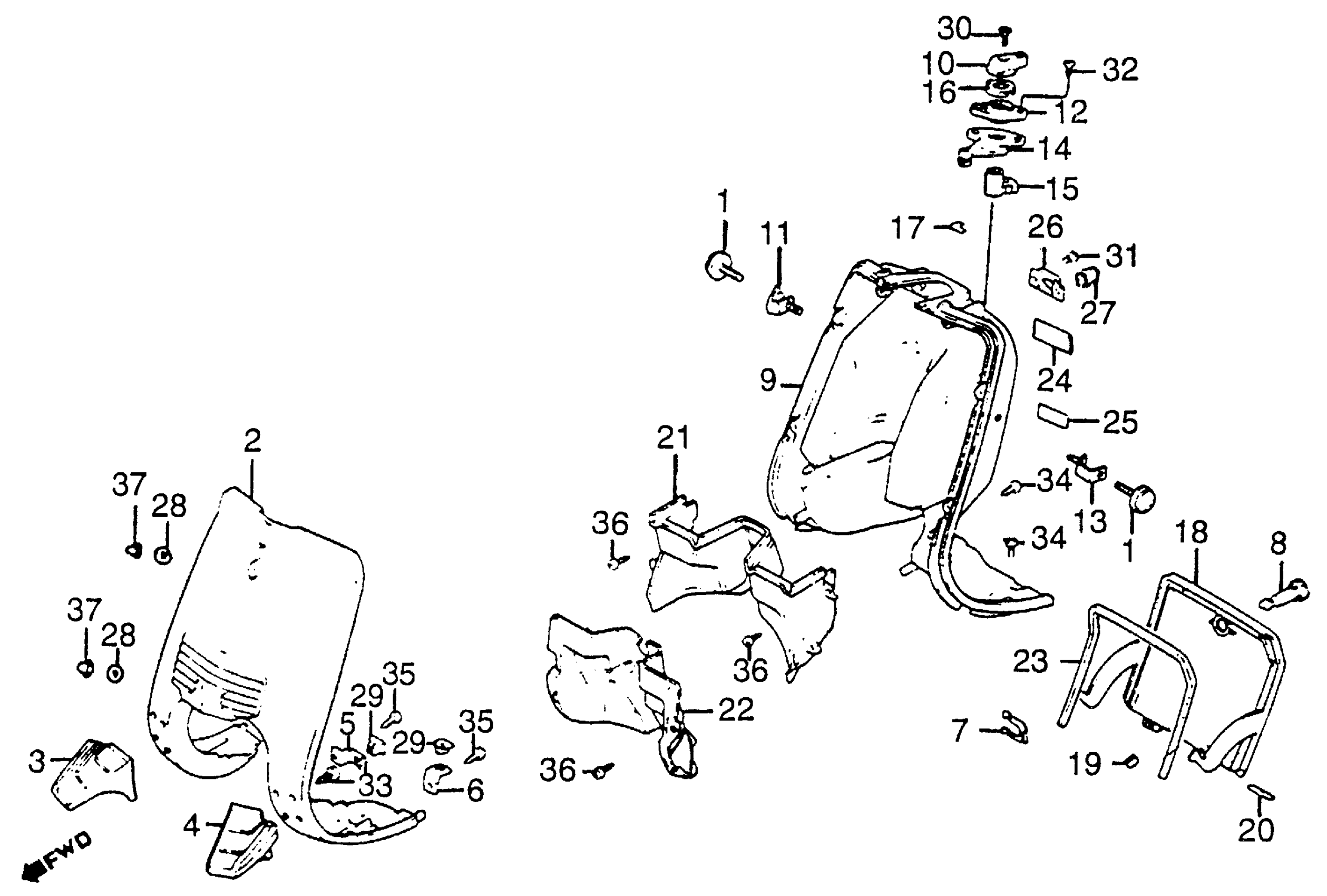

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 FRONT COVER + INNER BOX Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

1

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

2

COVER, FR. *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

64301-KG8-670ZA

Unavailable

2

COVER, FR. *YR118MS* (LIGHT COPPER METALLIC-S) (NOT AVAILABLE)

64301-KG8-670ZB

Unavailable

3

SPOILER, R. *R4C* (CANDY RUBY RED)

64302-KG8-000ZE

Unavailable

3

SPOILER, R. *YR118MS* (LIGHT COPPER METALLIC-S)

64302-KG8-000ZF

Unavailable

4

SPOILER, L. *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

64303-KG8-000ZE

Unavailable

4

SPOILER, L. *YR118MS* (LIGHT COPPER METALLIC-S)

64303-KG8-000ZF

Unavailable

5

BRACKET A, FR. COVER

64305-GC8-000

Unavailable

6

BRACKET B, FR. COVER

64306-GC8-000

Unavailable

7

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

8

LOCK, SIDE BOX (TYPE1)

77239-GA7-810

Unavailable

9

BOX (INNER) *NH122* (BETA GRAY) (NOT AVAILABLE)

81131-KG8-670ZA

Unavailable

10

LEVER, RR. BRAKE CABLE LOCK This part replaces 81132-KG8-670.

81132-KM1-000

Unavailable

10

LEVER, RR. BRAKE CABLE LOCK

81132-KM1-000

Unavailable

11

STAY, R. REFLECTOR (NOT AVAILABLE)

81133-GC8-720

Unavailable

12

HOLDER, RR. BRAKE CABLE LOCK (UPPER)

81133-KG8-670

Unavailable

13

STAY, L. REFLECTOR

81134-GC8-720

Unavailable

14

HOLDER, RR. BRAKE CABLE LOCK (LOWER)

81134-KG8-670

Unavailable

15

PULLEY, RR. BRAKE CABLE LOCK

81135-KG8-670

Unavailable

16

PLATE, RR. BRAKE CABLE LOCK LEVER

81137-KG8-670

Unavailable

17

LABEL, LOCK LEVER (NOT AVAILABLE)

81138-KG8-670

Unavailable

18

LID, BOX (INNER) *NH122* (BETA GRAY)

81141-GC8-000ZA

Unavailable

19

RUBBER, LID STOPPER

81142-GC8-000

Unavailable

20

PIN, BOX LID (INNER)

81143-GC8-000

$6.97

21

TRAY, BOX (INNER) *NH122* (BETA GRAY)

81146-KG8-000ZC

Unavailable

22

LINING, BOX (INNER)

81148-KG8-000

Unavailable

23

SEAL, BOX (INNER)

81203-GC8-000

Unavailable

24

LABEL, TRUNK CAUTION

81218-GC8-610

Unavailable

25

LABEL, AIR DUCT CAUTION (NOT AVAILABLE)

81218-KG8-600

Unavailable

26

STRIKER, BOX LOCK

81307-GC8-000

Unavailable

27

NUT, OPEN STAY (6MM)

90301-693-000

$6.36

27

NUT, FLANGE (6MM)

94050-06000

$1.49

28

WASHER (6X17)

90474-704-000

$1.49

29

GROMMET, SCREW (4MM)

90662-196-000

$2.20

30

SCREW, OVAL (5X22)

93700-05022-0G

Unavailable

31

SCREW, TAPPING (4X12)

93901-24380

$1.49

32

SCREW, TAPPING (4X16)

93902-24480

Unavailable

33

SCREW, TAPPING (4X16)

93903-24480

$1.49

34

SCREW, TAPPING (4X16)

93903-34480

$1.49

35

SCREW, TAPPING (4X12)

93904-24310

Unavailable

36

SCREW, TAPPING (4X12)

93904-24380

Unavailable

37

NUT, CAP (6MM)

94021-06020

$1.73

37

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

37

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73
