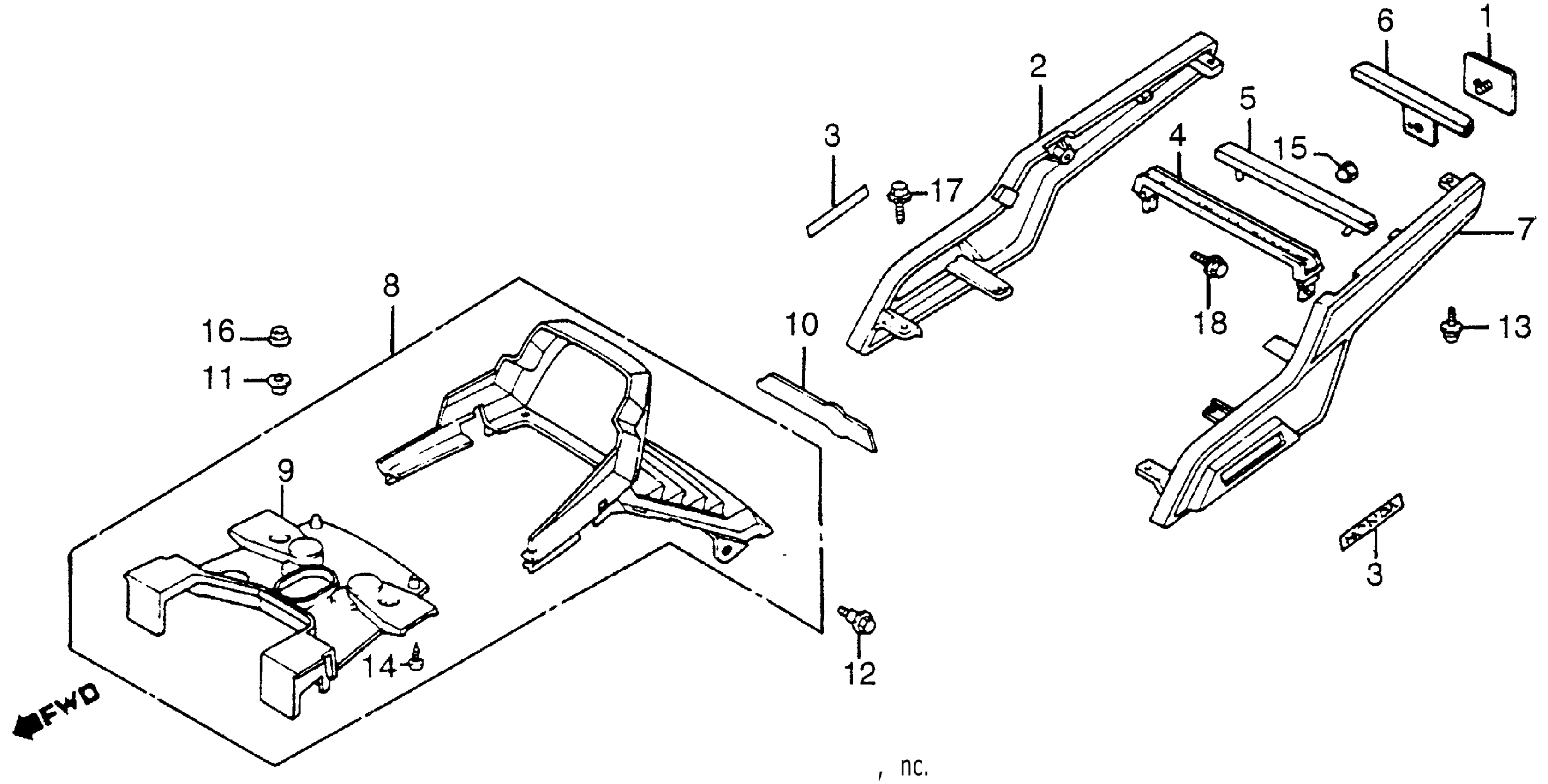

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 FRAME REAR COVER + GRAB RAIL Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX This part replaces 33741-GC8-600.

33741-GC8-601

Unavailable

1

REFLECTOR, RR. REFLEX

33741-GC8-601

Unavailable

2

BRACKET, R. GRAB RAIL

77330-KG8-000

Unavailable

3

EMBLEM, GRAB RAIL

77333-KG8-000

Unavailable

4

CROSS, FR. GRAB

77334-KG8-000

Unavailable

5

CROSS, CENTER GRAB

77335-KG8-000

Unavailable

6

CROSS, RR. GRAB

77336-KG8-600

Unavailable

7

BRACKET, L. GRAB RAIL

77340-KG8-000

Unavailable

8

COVER ASSY., RR. FRAME *NH1* (BLACK) (NOT AVAILABLE)

80100-KG8-670ZA

Unavailable

9

TRAY, RR. COVER

80102-KG8-000

Unavailable

10

LABEL, RR. COVER

87121-KG8-000

Unavailable

11

COLLAR (8MM)

90450-KG8-000

$4.76

12

BOLT, FLANGE (5X9)

90508-GC8-000

$4.35

13

SCREW-WASHER (5X12)

93891-05012-00

$1.49

14

SCREW, TAPPING (4X10)

93901-24210

$1.49

15

NUT, CAP (6MM) This part replaces 90301-KW8-900.

94021-06070-0S

$1.62

15

NUT, CAP (6MM) This part replaces 94021-06070.

94021-06070-0S

$1.62

15

NUT, CAP (6MM)

94021-06070-0S

$1.62

15

NUT, CAP (6MM) This part replaces 94021-06270-0S.

94021-06070-0S

$1.62

16

NUT, FLANGE (8MM)

94050-08000

$1.49

17

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

17

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

18

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.62

18

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
