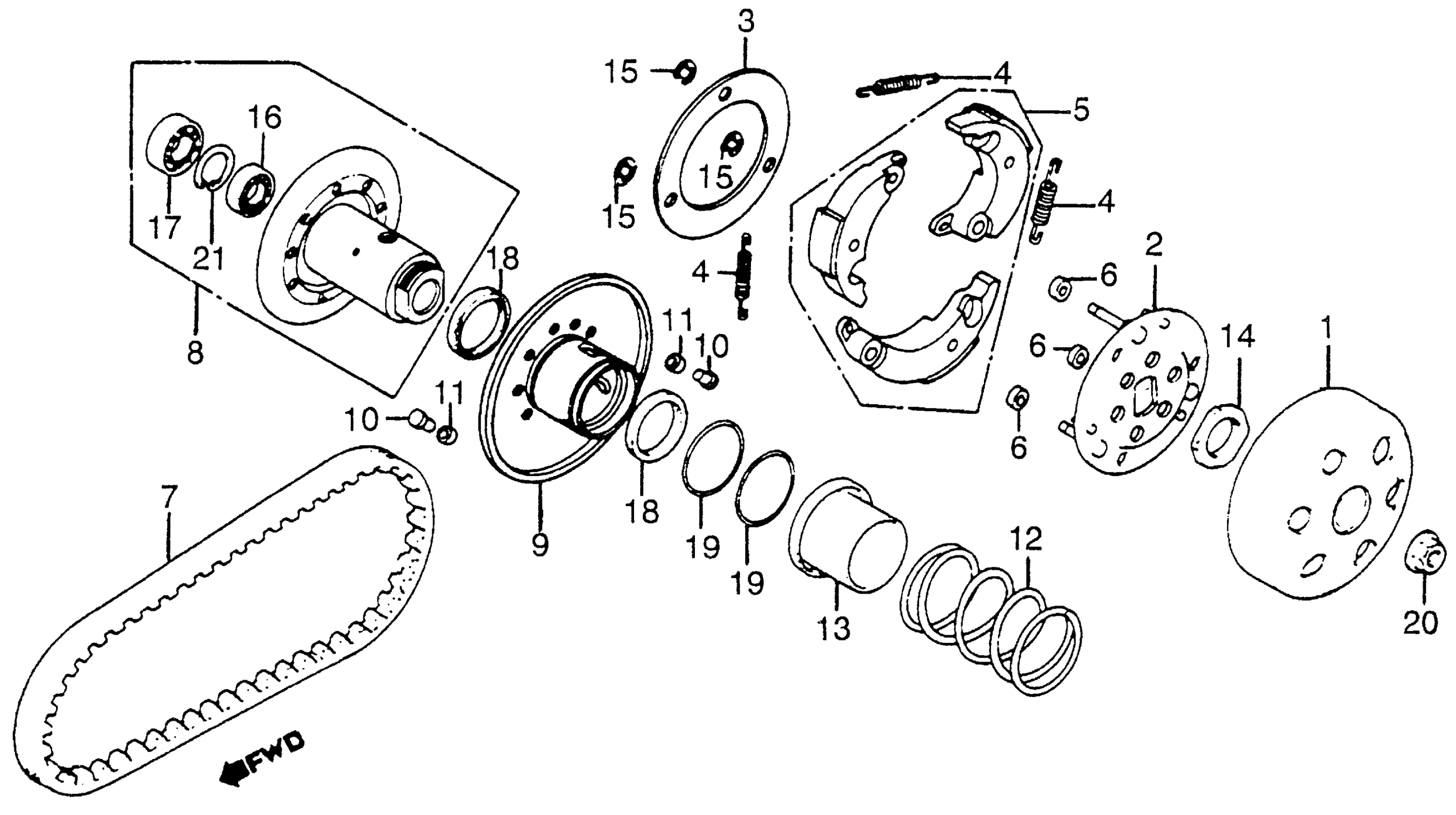

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER)

22101-KG8-000

Unavailable

2

PLATE, DRIVE (NOT AVAILABLE) This part replaces 22350-KG8-000.

22350-KG8-831

Unavailable

2

PLATE, DRIVE (NOT AVAILABLE) This part replaces 22350-KG8-010.

22350-KG8-831

Unavailable

2

PLATE, DRIVE (NOT AVAILABLE)

22350-KG8-831

Unavailable

3

PLATE, CLUTCH SIDE (NOT AVAILABLE) This part replaces 22361-KG8-000.

22361-KG8-830

Unavailable

3

PLATE, CLUTCH SIDE (NOT AVAILABLE)

22361-KG8-830

Unavailable

4

SPRING, CLUTCH

22401-KG8-000

Unavailable

5

WEIGHT SET, CLUTCH | (Optional). This part replaces 22535-KG8-305.

22535-KG8-315

Unavailable

5

WEIGHT SET, CLUTCH | (Optional).

22535-KG8-315

Unavailable

6

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

7

BELT, DRIVE

23100-KJ9-003

Unavailable

8

FACE ASSY., DRIVEN This part replaces 23200-KG8-000.

23205-KG8-305

Unavailable

8

FACE ASSY., DRIVEN

23205-KG8-305

Unavailable

9

FACE, MOVABLE DRIVEN

23220-KG8-000

Unavailable

10

PIN, ROLLER GUIDE

23225-GC8-003

Unavailable

11

ROLLER, GUIDE

23226-GC8-003

$4.48

12

SPRING, DRIVEN FACE

23233-KG8-000

$27.44

13

COLLAR, SEAL

23237-KG8-000

Unavailable

14

NUT, SPECIAL (28MM)

90202-187-000

$7.32

15

CIRCLIP (7MM)

90605-166-720

$1.80

16

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

17

BEARING, RADIAL BALL (6901U) (TOYO)

91002-KG8-003

Unavailable

18

SEAL, DRIVEN FACE (ARAI)

91211-187-003

$6.98

19

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$4.22

20

NUT, FLANGE (10MM)

94050-10000

$1.59

21

CIRCLIP (INNER) (24MM)

94520-24000

$1.49
