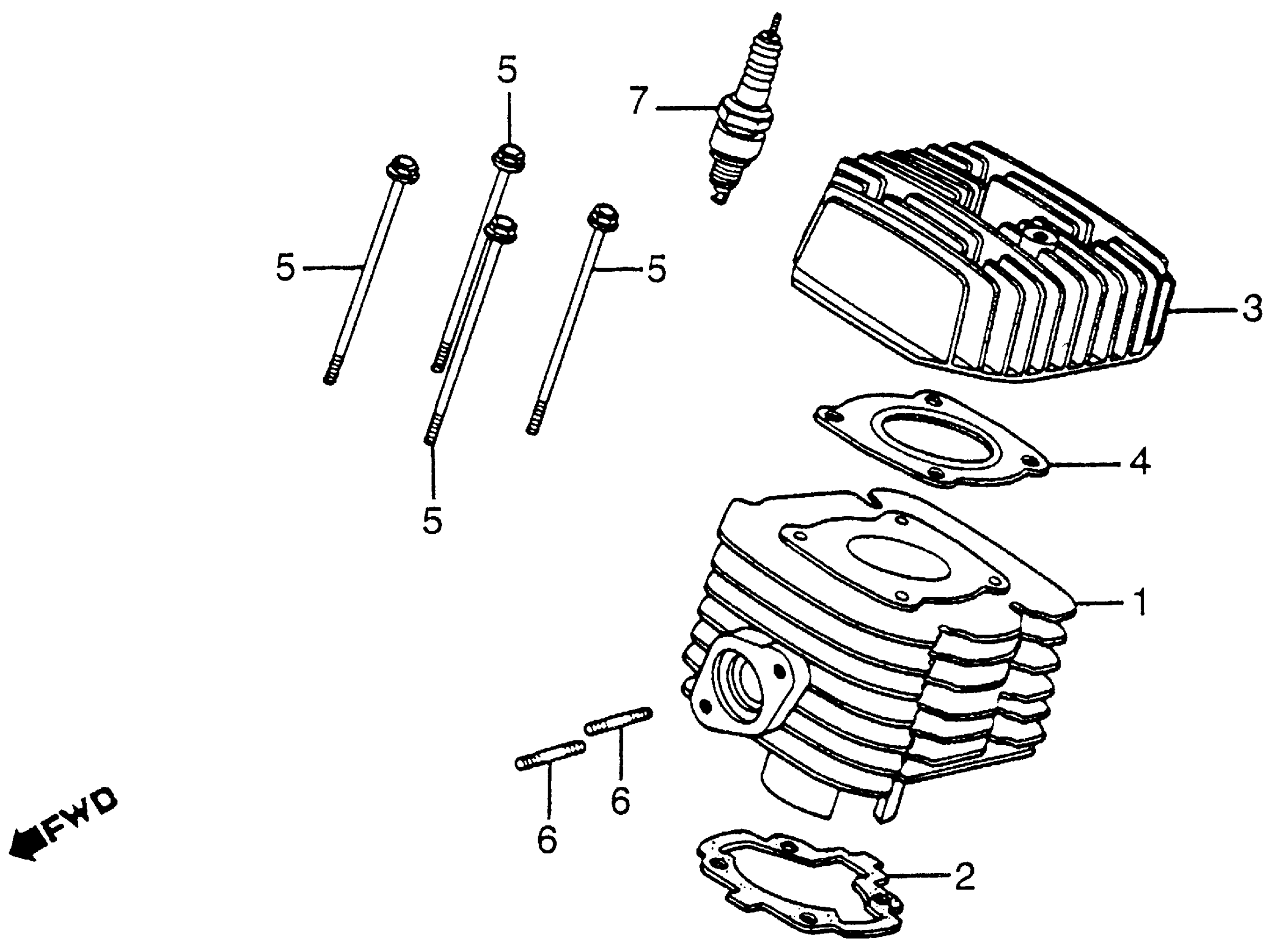

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 CYLINDER HEAD Diagram

CYLINDER A

12101-KG8-000

Unavailable

CYLINDER B (NOT AVAILABLE)

12102-KG8-000

Unavailable

GASKET, CYLINDER This part replaces 12191-KG8-000.

12191-KG8-306

Unavailable

GASKET, CYLINDER

12191-KG8-306

Unavailable

CYLINDER HEAD

12201-KG8-000

Unavailable

GASKET, CYLINDER HEAD

12251-KG8-000

Unavailable

BOLT, FLANGE (8X124)

90001-KG8-000

Unavailable

BOLT, STUD (6X18)

92900-06018-0B

$1.55

SPARK PLUG (BPR4HS) (NGK) | (Optional). This part replaces 98076-54717.

98076-54747

$2.53

SPARK PLUG (W14FPR-L) (DENSO) | (Optional). This part replaces 98076-54727.

98076-54756

Unavailable

SPARK PLUG (BPR4HS) (NGK) | (Optional).

98076-54747

$2.53

SPARK PLUG (W14FPR-L) (DENSO) | (Optional).

98076-54756

Unavailable

SPARK PLUG (BPR6HS) (NGK)

98076-56717

$2.52

SPARK PLUG (W20FPR) (DENSO) This part replaces 98076-56727.

98076-56756

Unavailable

SPARK PLUG (W20FPR) (DENSO)

98076-56756

Unavailable

SPARK PLUG (BPR7HS) (NGK) | (Optional).

98076-57717

$2.52

SPARK PLUG (W22FPR) (DENSO) | (Optional).

98076-57727

Unavailable
