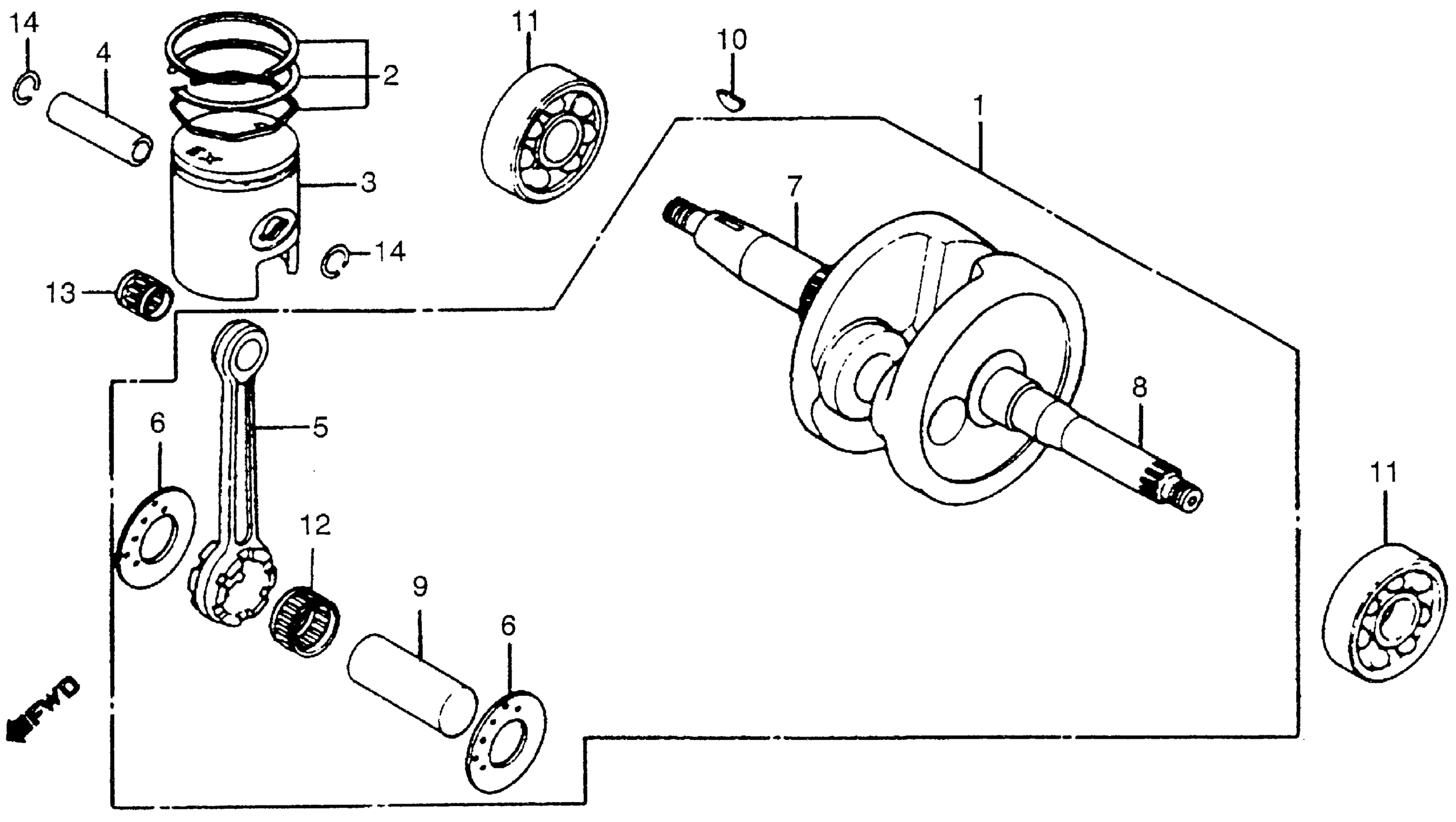

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-KG8-000

Unavailable

2

RING SET, PISTON (NOT AVAILABLE)

13011-KG8-004

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-KG8-305

Unavailable

2

RING SET, PISTON (OS 0.50) (TEIKOKU) | (Optional).

13013-KG8-305

Unavailable

3

PISTON (NOT AVAILABLE)

13101-KG8-000

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-KG8-305

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-KG8-305

Unavailable

4

PIN, PISTON

13111-444-000

Unavailable

5

ROD, CONNECTING This part replaces 13201-KG8-300.

13201-KG8-310

Unavailable

5

ROD, CONNECTING

13201-KG8-310

Unavailable

6

PLATE, CONNECTING ROD SIDE

13202-169-003

Unavailable

7

CRANKSHAFT, R.

13311-KG8-300

Unavailable

8

CRANKSHAFT, L.

13321-KG8-300

Unavailable

9

PIN, CRANKSHAFT

13381-KG8-300

Unavailable

10

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

11

BEARING, RADIAL BALL This part replaces 91001-KG8-003.

91021-KV3-771

Unavailable

11

BEARING, RADIAL BALL

91021-KV3-771

Unavailable

12

BEARING, CONNECTING ROD BIG END This part replaces 91001-GC4-700.

91001-GC4-701

Unavailable

12

BEARING, CONNECTING ROD BIG END

91001-GC4-701

Unavailable

12

BEARING, CONNECTING ROD BIG END This part replaces 91001-169-670.

91001-GC4-701

Unavailable

12

BEARING, CONNECTING ROD BIG END This part replaces 91002-GC4-700.

91002-GC4-701

Unavailable

12

BEARING, CONNECTING ROD BIG END

91002-GC4-701

Unavailable

12

BEARING, CONNECTING ROD BIG END This part replaces 91002-169-670.

91002-GC4-701

Unavailable

12

BEARING, CONNECTING ROD BIG END (NOT AVAILABLE) This part replaces 91003-GC4-700.

91003-GC4-701

Unavailable

12

BEARING, CONNECTING ROD BIG END

91003-GC4-701

Unavailable

12

BEARING, CONNECTING ROD BIG END (NOT AVAILABLE) This part replaces 91003-169-670.

91003-GC4-701

Unavailable

13

BEARING, CONNECTING ROD SMALL END

91101-KE6-831

Unavailable

13

BEARING, CONNECTING ROD SMALL END This part replaces 91102-168-003.

91101-KE6-831

Unavailable

14

CLIP, PISTON PIN (14MM)

94601-14000

$1.49
