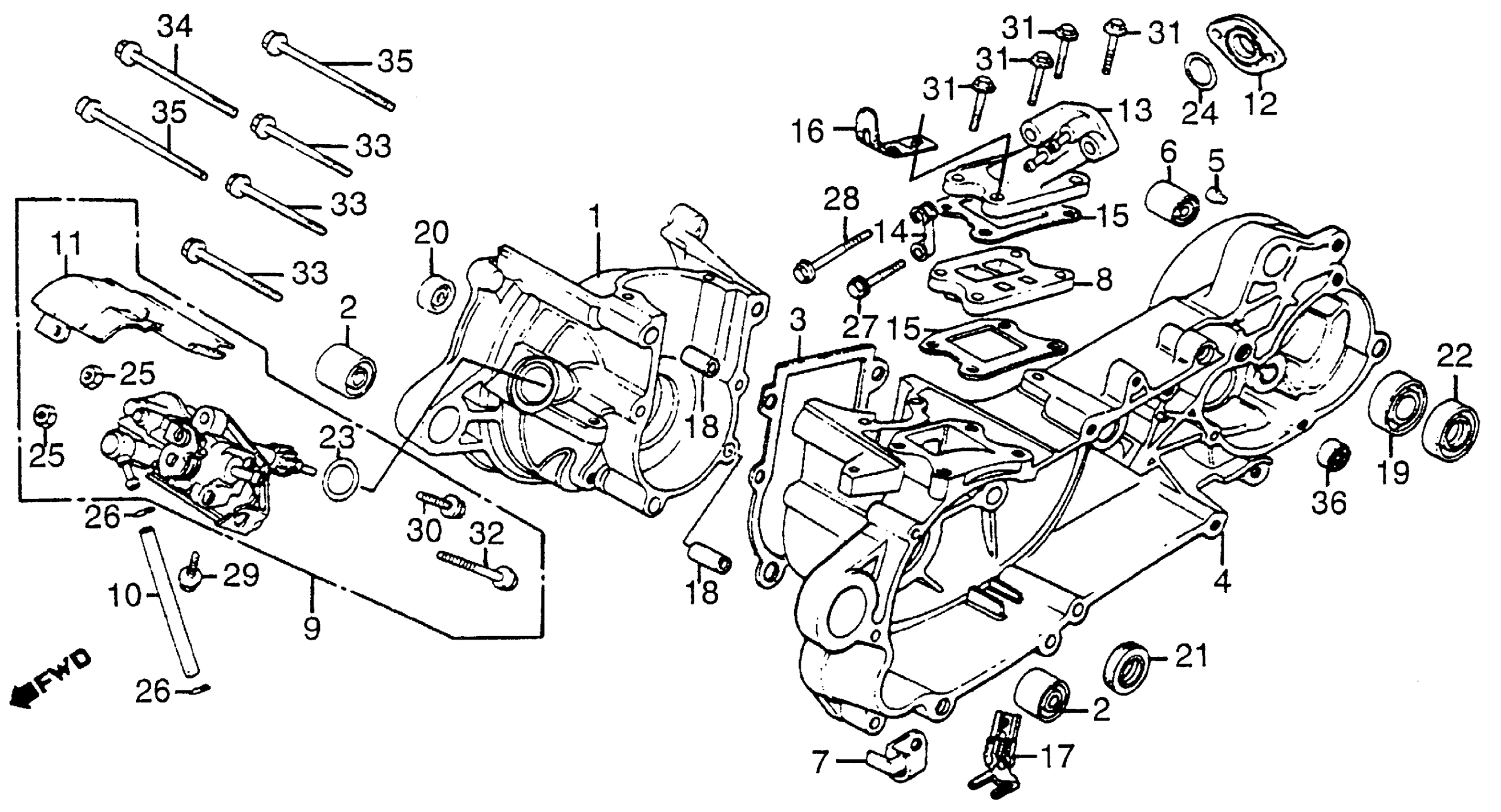

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R.

11101-KG8-000

Unavailable

2

BUSH, ENGINE HANGER RUBBER

11102-KG8-000

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-KG8-000.

11191-KG8-306

Unavailable

4

CRANKCASE, L.

11201-KG8-670

Unavailable

5

RUBBER, SPRING GUIDE

11202-GC7-300

Unavailable

6

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER)

11203-GC7-300

$10.71

7

CLIP, BRAKE CABLE

11352-KG8-000

Unavailable

8

VALVE, REED This part replaces 14100-KG8-000.

14100-KG8-010

Unavailable

8

VALVE, REED

14100-KG8-010

Unavailable

9

PUMP ASSY., OIL This part replaces 15100-KG8-003.

15100-KG8-013

Unavailable

9

PUMP ASSY., OIL

15100-KG8-013

Unavailable

10

TUBE, OIL PASSAGE

15525-KG8-000

Unavailable

11

INSULATOR, OIL PUMP

15532-KG8-000

Unavailable

12

INSULATOR, CARBURETOR This part replaces 16211-KG8-000.

16211-KG8-306

Unavailable

12

INSULATOR, CARBURETOR

16211-KG8-306

Unavailable

13

PIPE, INLET

17100-KG8-000

Unavailable

14

STAY, TUBE

17104-GC7-000

Unavailable

15

GASKET, IN. PIPE This part replaces 17111-KG8-000.

17111-KG8-306

Unavailable

16

CLIP, WIRE HARNESS

32116-437-000

Unavailable

17

CLAMP, WIRE

32913-KG8-000

Unavailable

18

PIN, DOWEL (10X23)

90601-KG8-000

Unavailable

19

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-003.

42630-GK4-003

$16.69

19

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-004.

42630-GK4-003

$16.69

20

OIL SEAL (20X30X7) This part replaces 91201-GC8-003.

91201-GC8-004

Unavailable

20

OIL SEAL (20X30X7)

91201-GC8-004

Unavailable

21

OIL SEAL (22X33X7)

91202-KBP-901

Unavailable

21

OIL SEAL (22X33X7) This part replaces 91202-KE6-831.

91202-KBP-901

Unavailable

21

OIL SEAL (22X33X7) This part replaces 91205-168-004.

91202-KBP-901

Unavailable

22

OIL SEAL (24X40X7)

91254-GE8-005

$9.24

22

OIL SEAL (24X40X7) This part replaces 91254-187-005.

91254-GE8-005

$9.24

23

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

23

O-RING (18.3X2.3) (ARAI) This part replaces 91301-166-000.

91301-147-023

$2.20

24

O-RING (26.9X2.4)

91302-PF0-003

$2.92

24

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-003.

91302-PF0-003

$2.92

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

CLIP, TUBE (B6.5)

95002-02650

$1.49

27

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

27

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

28

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

28

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

29

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

29

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

30

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

30

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

31

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

31

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

32

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

32

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

33

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

33

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

34

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

34

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

35

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

35

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

36

BEARING, RADIAL BALL (6201)

96100-62013-00

$9.33
