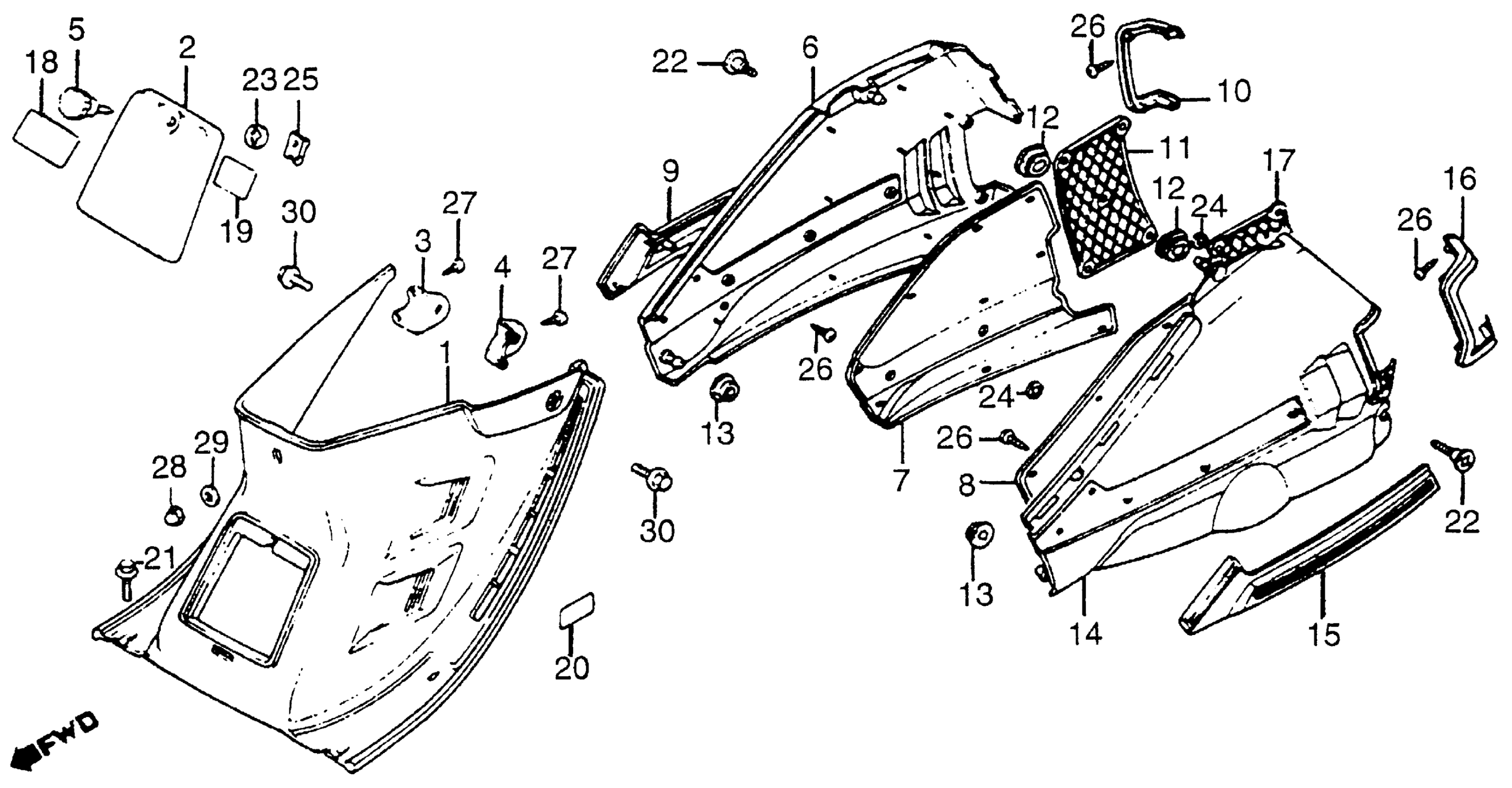

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 CENTER COVER + BODY COVER Diagram

COVER, BODY CENTER *NH122* (BETA GRAY)

80150-KG8-000ZC

Unavailable

COVER, BATTERY BOX *NH122* (BETA GRAY)

80152-KG8-000ZC

Unavailable

STAY, R. CENTER COVER

80154-GC8-000

Unavailable

STAY, L. CENTER COVER

80155-GC8-000

Unavailable

KNOB, BATTERY COVER

80157-GC8-000

Unavailable

COVER, R. BODY *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

83500-KG8-000ZD

Unavailable

COVER, R. BODY *YR118MS* (LIGHT COPPER METALLIC-S)

83500-KG8-000ZE

Unavailable

PANEL, R. HEAT PROOF

83501-KG8-000

Unavailable

PANEL, L. HEAT PROOF

83502-KG8-000

Unavailable

MOLDING A, R. RR. BODY

83510-KG8-000

Unavailable

MOLDING B, R. RR. BODY

83515-KG8-000

Unavailable

NET, R. RR. BODY COVER

83517-KG8-000

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

GROMMET, SIDE COVER

83551-376-000

$2.97

COVER, L. BODY *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

83600-KG8-000ZD

Unavailable

COVER, L. BODY *YR118MS* (LIGHT COPPER METALLIC-S) (NOT AVAILABLE)

83600-KG8-000ZE

Unavailable

MOLDING A, L. RR. BODY

83610-KG8-000

Unavailable

MOLDING B, L. RR. BODY

83615-KG8-000

Unavailable

NET, L. RR. BODY COVER

83617-KG8-000

Unavailable

LABEL, CAUTION *NH0* (CHAMPIONSHIP WHITE)

87505-KG8-670ZA

Unavailable

LABEL, BATTERY CAUTION

87506-GC8-610

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

BOLT, FLANGE (6MM)

90111-147-000

$2.75

BOLT, COVER SETTING

90142-KG8-000

$3.89

NUT, SPEED

90310-GC8-000

$2.51

NUT, SPEED (3MM)

90313-567-000

$3.97

NUT, CLIP (6MM)

90344-692-003

$5.55

SCREW, TAPPING (4X12)

93903-34320

$1.49

SCREW, TAPPING (4X10)

93904-24280

Unavailable

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

WASHER, PLAIN (6MM)

94103-06200

$1.49

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
