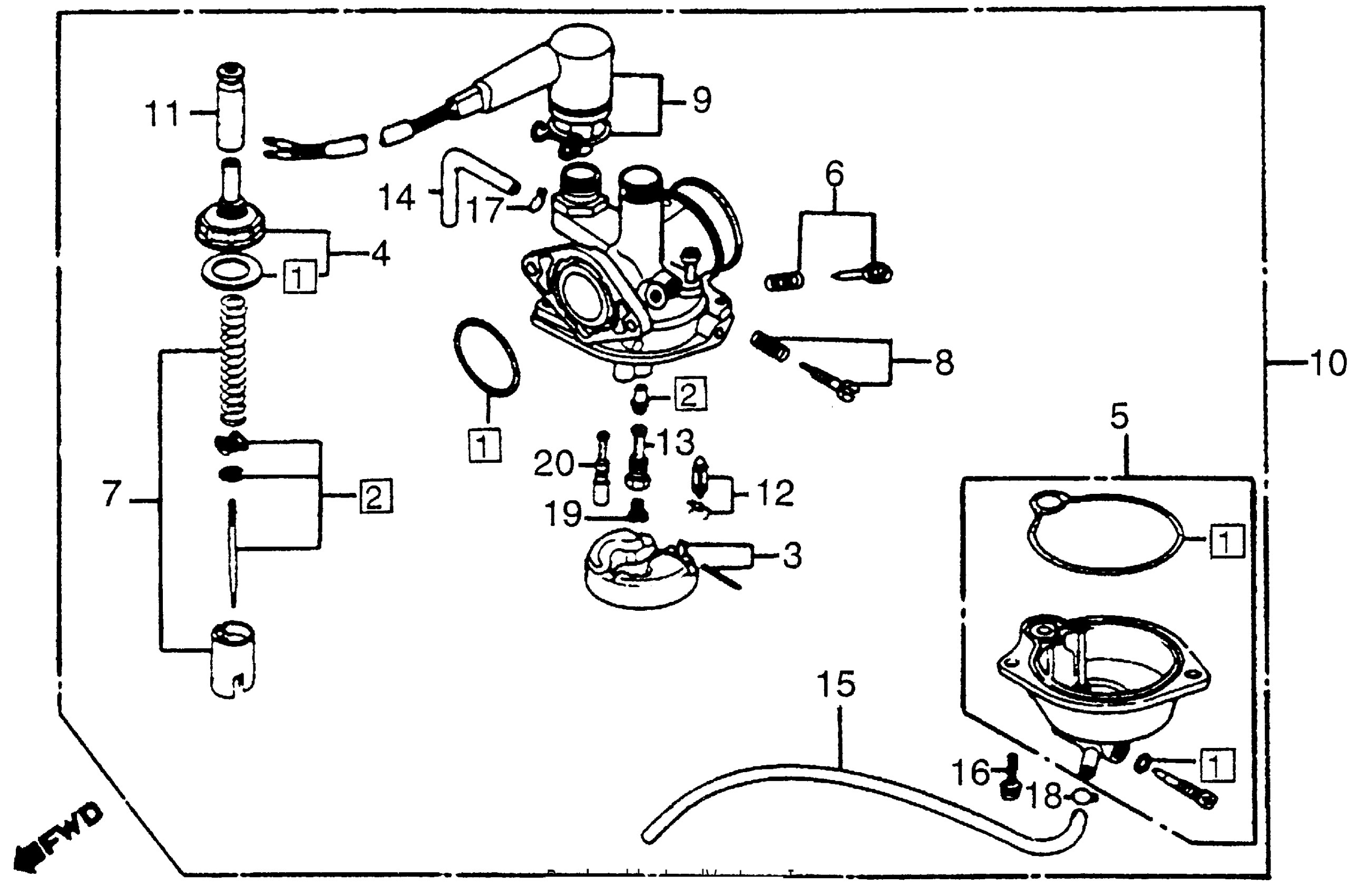

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-KG8-003.

16010-KG8-305

Unavailable

1

GASKET SET

16010-KG8-305

Unavailable

2

NEEDLE SET, JET This part replaces 16012-KG8-671.

16012-KG8-672

Unavailable

2

NEEDLE SET, JET

16012-KG8-672

Unavailable

3

FLOAT SET

16013-GC7-004

Unavailable

4

TOP SET

16014-439-921

Unavailable

5

CHAMBER SET, FLOAT

16015-KG8-671

Unavailable

6

SCREW SET A

16016-GC8-721

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-KG8-911

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE) This part replaces 16022-459-004.

16022-KG8-911

Unavailable

8

SCREW SET B

16028-GC8-004

$16.35

8

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

9

BYSTARTER SET, AUTO This part replaces 16046-KG8-671.

16046-KG8-673

Unavailable

9

BYSTARTER SET, AUTO This part replaces 16046-KG8-672.

16046-KG8-673

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-KG8-671.

16100-KG8-672

Unavailable

11

CAP, CABLE SEALING This part replaces 16118-439-921.

16148-KB1-921

$17.51

11

CAP, CABLE SEALING

16148-KB1-921

$17.51

12

VALVE, FLOAT

16155-883-005

$20.11

13

HOLDER, NEEDLE JET

16165-KG8-003

Unavailable

14

TUBE, AIR VENT

16199-GC8-004

Unavailable

15

TUBE, OVERFLOW (NOT AVAILABLE)

16199-428-771

Unavailable

16

SCREW-WASHER (4X14)

93892-04014-08

$1.49

17

CLIP, TUBE (B8)

95002-02080

$1.80

18

CLIP, TUBE (B6.5)

95002-02650

$1.49

19

JET, MAIN (#100) | (Optional). This part replaces 99101-116-1000.

99102-GHB-1000

Unavailable

19

JET,#105 This part replaces 99101-116-1050.

99102-GHB-1050

$7.43

20

JET, SLOW (#40)

99103-GC8-0400

Unavailable
