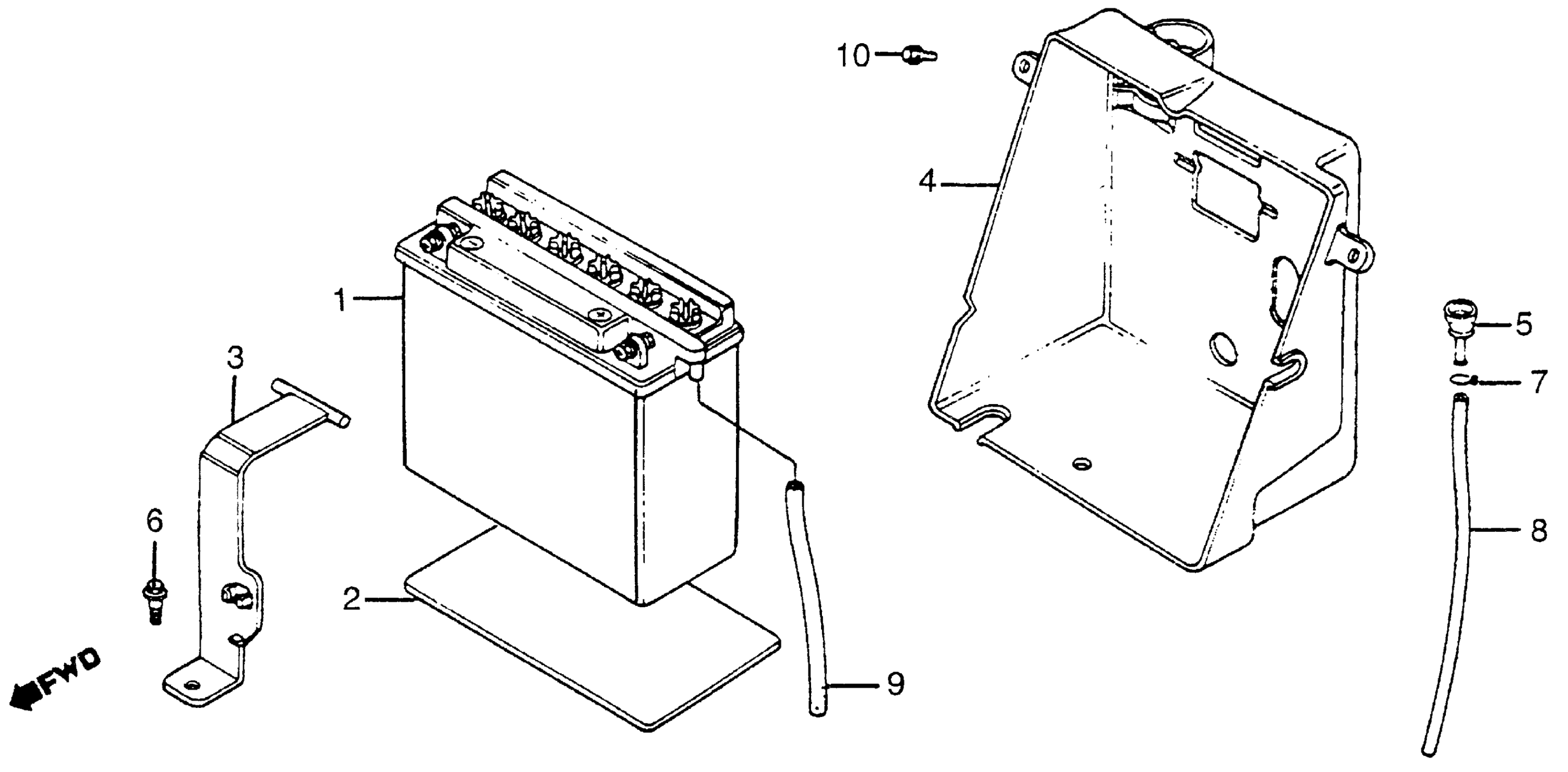

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 BATTERY Diagram

#

Description

Price

1

BATTERY (YB5L-B-CA) This part replaces 31500-KG8-671.

31500-KG8-405

Unavailable

1

BATTERY (YB5L-B-CA) This part replaces 31500-KG8-672.

31500-KG8-405

Unavailable

1

BATTERY (YB5L-B-CA) This part replaces 31500-KG8-673.

31500-KG8-405

Unavailable

2

RUBBER, BATTERY

31508-GC8-000

Unavailable

3

SUPPORT, BATTERY

50322-GC8-000

Unavailable

4

BOX, BATTERY

50325-GC8-000

Unavailable

5

JOINT, TUBE

50327-GC8-000

Unavailable

6

BOLT, FLANGE (6MM)

90111-147-000

$2.75

7

CLIP, TUBE (B8)

95002-02080

$1.80

8

BULK HOSE, VACUUM (4.5X1000) (4.5X250)

95005-45001-30M

Unavailable

9

BULK HOSE, VACUUM (5X3000) (5X85)

95005-50003-30M

$20.85

10

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

10

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
