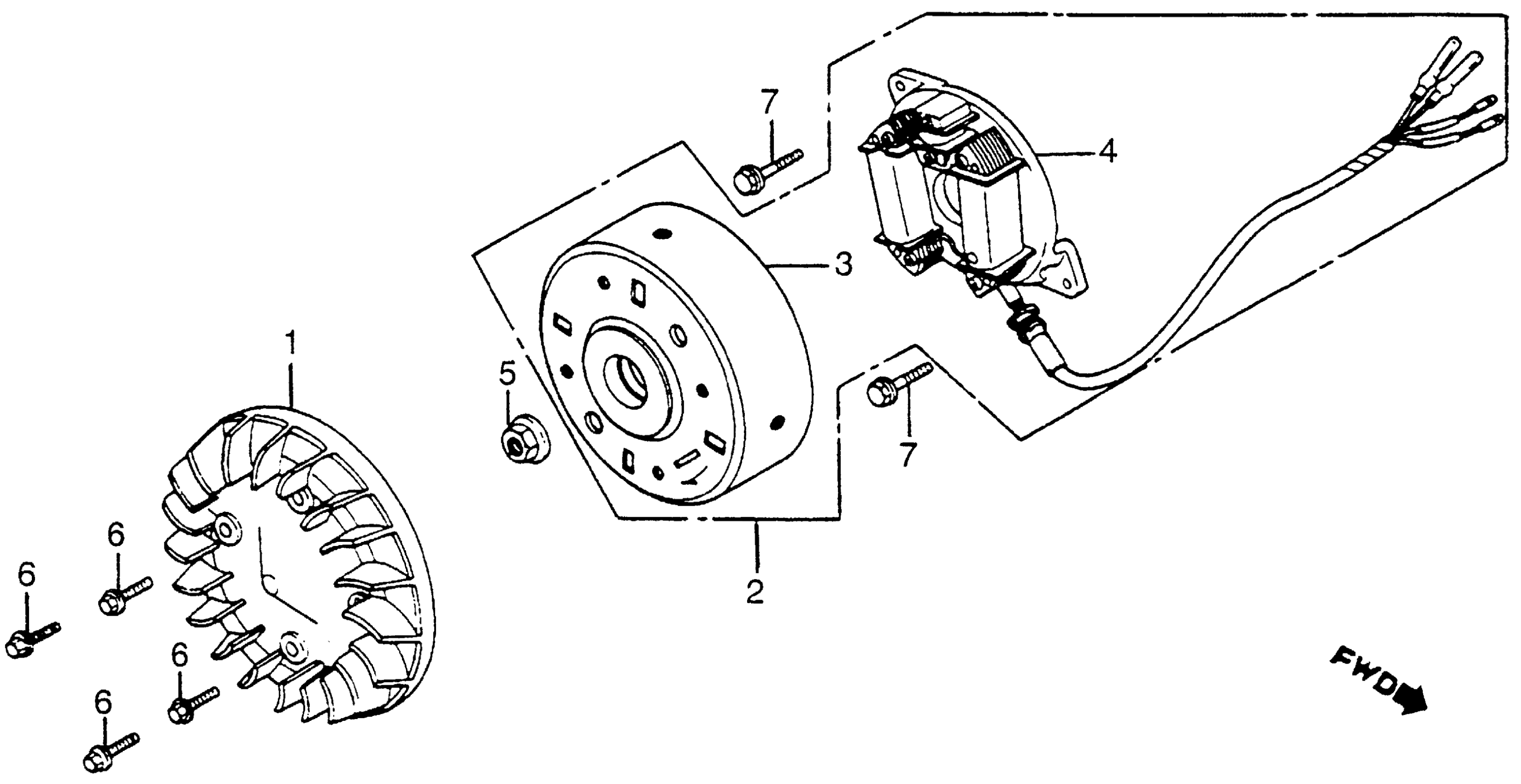

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 ALTERNATOR Diagram

#

Description

Price

1

FAN, COOLING

19510-KG8-000

Unavailable

2

ALTERNATOR ASSY. (NOT AVAILABLE) | Use up to Engine SN ES015058 This part replaces 31100-KG8-671.

31100-KG8-672

Unavailable

2

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-KG8-672

Unavailable

3

ROTOR

31110-KG8-671

Unavailable

4

STATOR (MITSUBA) (NOT AVAILABLE) | Use up to Engine SN ES015058 This part replaces 31120-KG8-671.

31120-KG8-672

Unavailable

4

STATOR (MITSUBA) (NOT AVAILABLE)

31120-KG8-672

Unavailable

5

NUT, HEX. (10MM)

90308-357-000

$4.53

6

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.64

6

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

7

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.13

7

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
