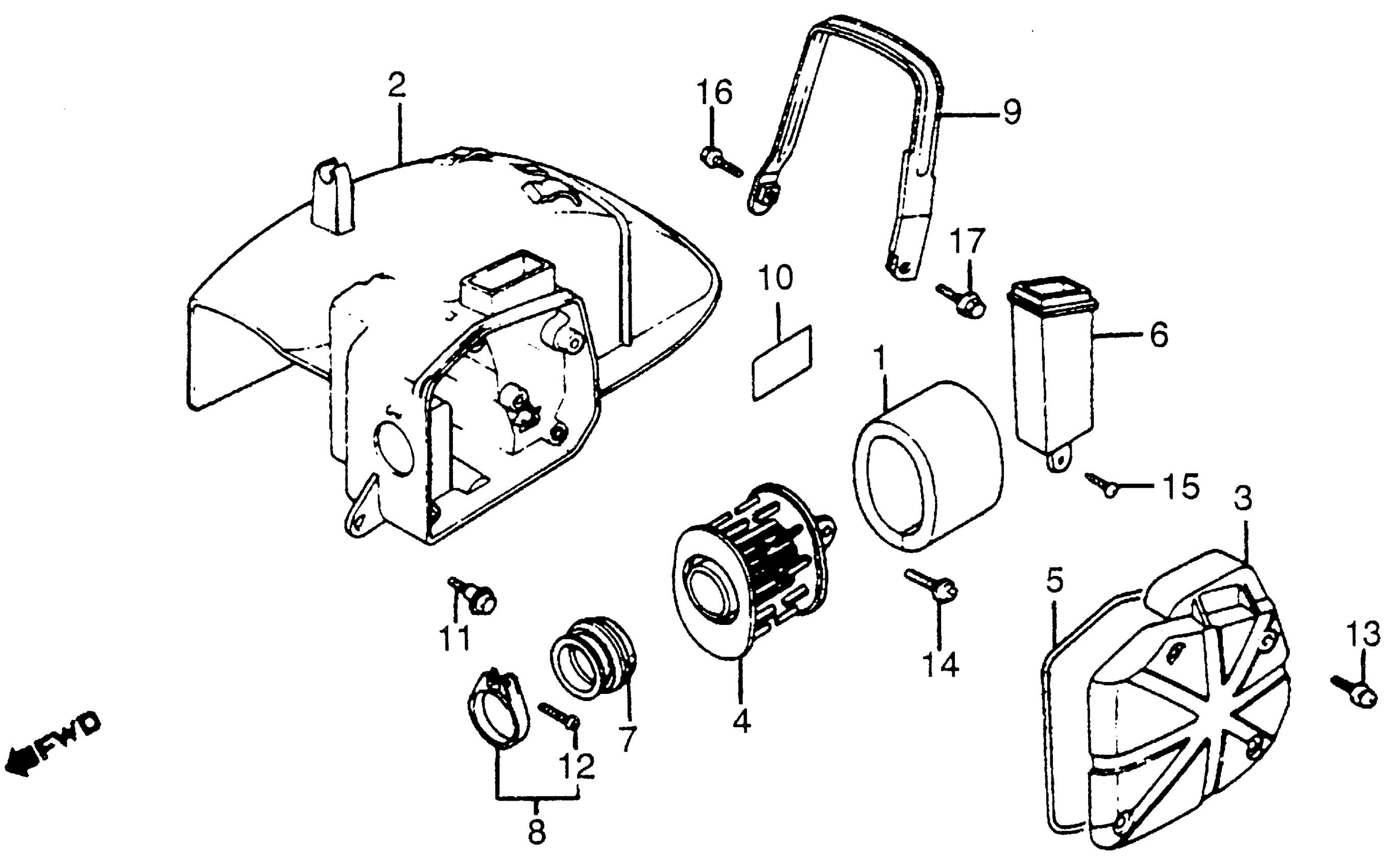

Honda NH125A (84) AERO 125, JPN, VIN# JH2JF010-ES000005 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17205-KG8-000

Unavailable

2

HOUSING, AIR CLEANER This part replaces 17206-KG8-000.

17206-KG8-010

Unavailable

2

HOUSING, AIR CLEANER

17206-KG8-010

Unavailable

3

COVER, AIR CLEANER HOUSING

17207-KG8-000

Unavailable

4

HOLDER, AIR CLEANER ELEMENT

17208-KG8-010

Unavailable

5

SEAL, AIR CLEANER COVER This part replaces 17212-KG8-000.

17222-MN4-405

$6.80

5

SEAL, AIR CLEANER COVER

17222-MN4-405

$6.80

6

DUCT, AIR CLEANER HOUSING

17243-KG8-000

Unavailable

7

TUBE, AIR CLEANER CONNECTING

17253-KG8-000

Unavailable

8

BAND A, AIR CLEANER CONNECTING TUBE

17255-303-010

$6.35

9

STAY, RR. FENDER (NOT AVAILABLE)

80106-KG8-000

Unavailable

10

LABEL, AIR CLEANER CAUTION

87508-120-000

$4.90

11

BOLT, FLANGE (6MM)

90111-162-000

$2.62

12

SCREW, PAN (5X20)

93500-05020-0A

$0.75

13

SCREW-WASHER (5X20)

93891-05020-08

$1.04

14

SCREW-WASHER (6X12)

93891-06012-08

$1.12

15

SCREW, TAPPING (4X10)

93901-24210

$0.58

16

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

16

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

17

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
